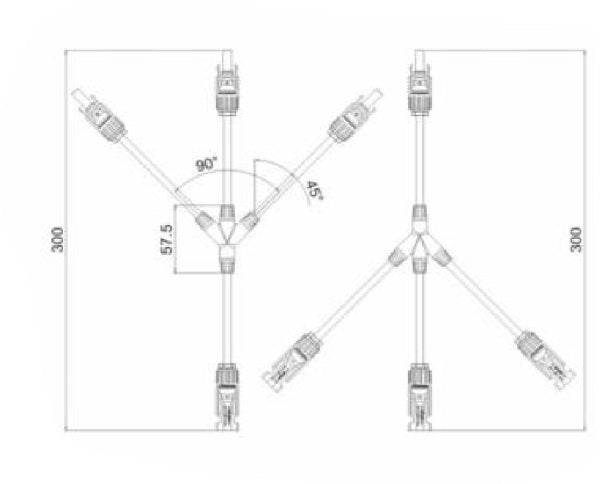

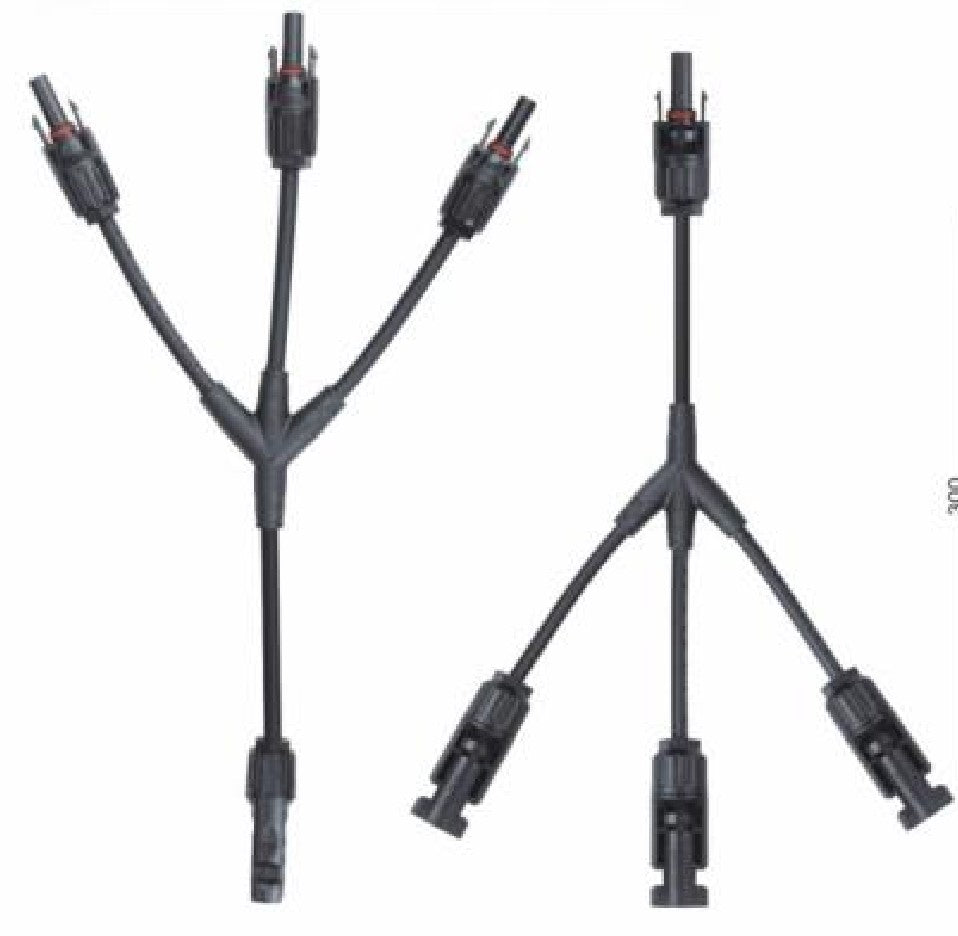

Y3 Solar Branch Connector Set DSY3

Y3 Solar Branch Connector Set DSY3

DSY3

£8.84 GBP
£8.84 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT
  • Connector System 4mm
  • Rated Voltage 1000V DC (IEC)
  • Rated Current 30A Test Voltage 6kV(50HZ, 1min)
  • Ambient Temperature Range -40°C - +90°C (IEC) / -40° - +75°C (UL)
  • Upper Limiting Temperature Range +105°C (IEC)
  • Degree of protection when Connected IP67
  • Unconnected IP2X
  • Contact Resistance of Plug Connectors 0.5m
  • Safetyclass II
  • Contact Material Copper Alloy,
  • Tin Plated Insulation Material PC/PA
  • Locking System Snap-in
  • Flame Class UL-94-V0
  • Salt Mist Spray Test, degree of severity 5 IEC 6068-2-52
