Wiska

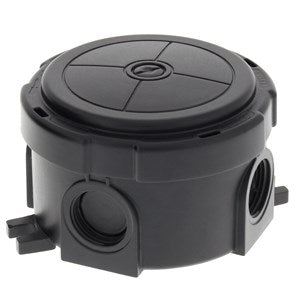

Wiska COMBI 304 with 3 x Wago 221 Terminals IP66 Round Junction Box

Wiska COMBI 304 with 3 x Wago 221 Terminals IP66 Round Junction Box

SKU:COMBI304/3221/BLACK

Regular price £5.60 GBP
Regular price Sale price £5.60 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT

  • Material               Polypropylene
  • Material sealing gasket  TPE
  • Temp. range min              -30 °C
  • Temp. range max             100 °C
  • Temperatures during install.        -5 °C - 60 °C
  • Protection class IP66 / IP67
  • Glow wire test   750 °C
  • Voltage 400 V
  • Rated cross section         2,5 mm²
  • Terminals/poles               4 mm²
  • Fixing    2 external mounting feet
  • Ø cable diameter min     3 mm
  • Ø cable diameter max    12 mm
  • External dimensions LxWxH         Ø 82 x 57mm
  • Type of cable gland         M 20 x 1,5
        Part Numbers:
        • Black - COMBI304/EMPTY/BLACK - 10110636
        • Grey - COMBI304/EMPTY/GREY - 10110635
        • White - COMBI304/EMPTY/WHITE - 10110637
        View full details
