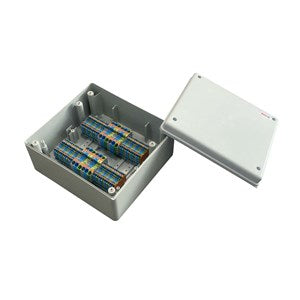

Wiska 823 Consumer Unit Relocation Kit with Wago Push Terminals CUR/P 10112389

• Material: Polycarbonate
• Protection class: IP65
• Temp. range min: -25 °C
• Temp. range max: 85 °C
• Glow wire test: 650 °C
• Impact resistance: IK08
• External dimensions LxWxH: 270x250x160mm
• Type: 823 CUR/P
• UK-Number: 823 CUR/P
• Product Color: RAL 7035
• WISKA-Order no.: 10112389

Description:

• Suitable for relocating up to 20 ways*
• Fast self-tapping stainless screws

Terminals**

• 2202-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 4mm (x16)
• 2202-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 4mm (x16)
• 2202-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 4mm (x16)
• 2002-1292 - Orange Endplate for 2202 (x2)
• 2210-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 16mm (x4)
• 2210-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 16mm (x4)
• 2210-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 16mm (x4)
• 2010-1292 - Orange Endplate for 2210 (x2)
