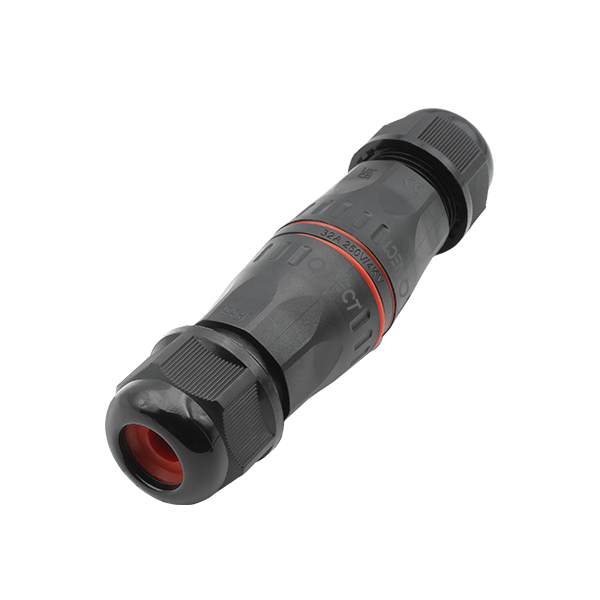

Unicrimp Q-Nect IP68 32A 2 Way 3 Pole Inline Connector QOE3032BLK

Dimensions

• Length (mm) 115
• Minimum Cable Diameter (mm) 4
• Maximum Cable Diameter (mm) 14
• Diameter (mm) 31
• Conductor Strip Length (mm) 10

General Information

• Colour Black & Red
• Rated Current (A) 32
• Conductor Size Range (mm²) 0.2 - 4.0 Stranded or Solid Core
• Tightening Torque (Nm) 2.5
• Ingress Protection IP68 (Tested to 1 Metre at 60 Minutes)
• Working Temperature (°C) 95
• Operational Temperature (°C) -40 to +95
• Warranty (Years) 1
• Quantity Sold Individually

Materials

• Body Components: Nylon (PA66)
• Seals: Silica Gel

Additional Information

• Supplied with 3 port lever connectors
