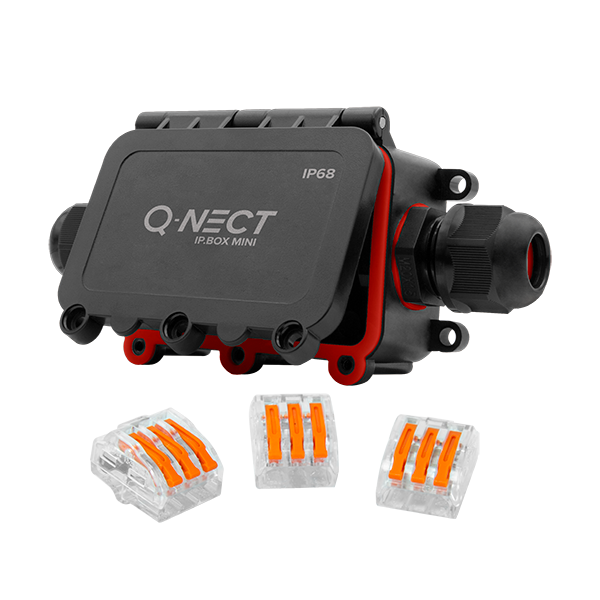

Unicrimp Q-Nect IP68 32A 2 Way 3 Pole Inline Connector Box QOE8332BLK

Dimensions

• Length (mm) 141
• Width (mm) 68
• Height (mm) 37
• Minimum Cable Diameter (mm) 5
• Maximum Cable Diameter (mm) 8
• Conductor Strip Length (mm) 10

General Information

• Colour Black & Red
• Rated Current (A) 32
• Conductor Size Range (mm²) 0.2 - 4.0 Stranded or Solid Core
• Tightening Torque (Nm) 2.5
• Ingress Protection IP68 (Tested to 1 Metre at 60 Minutes)
• Working Temperature (°C) 60
• Operational Temperature (°C) -40 to +85
• Warranty (Years) 1
• Quantity Sold Individually

Materials

• Body Components: Polycarbonate
• Membranes: Silica Gel
• Levers: Polyamide 66
• Terminals: Tinned Copper

Additional Information

• 2 x M20 inline entries with seals and membranes. 4 fixing points.
• Supplied with 3 x 3 port lever terminals.
