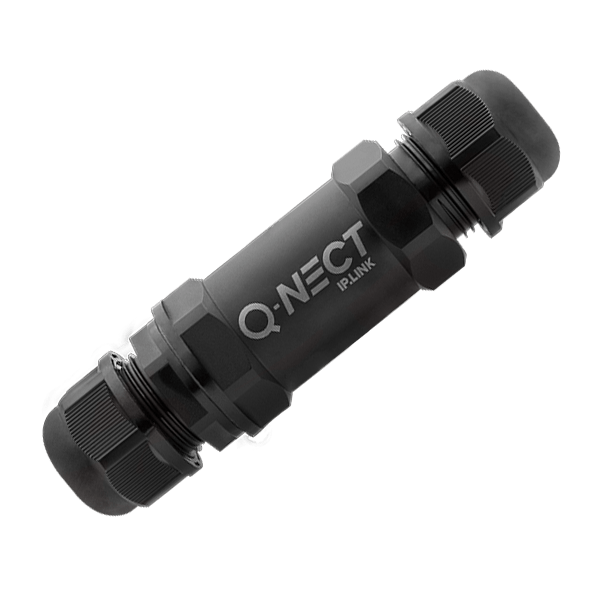

Unicrimp Q-Nect IP68 24A 2 Way 5 Pole Inline Connector QOE3052BLK

Dimensions

• Length (mm) 112
• Minimum Cable Diameter (mm) 6
• Maximum Cable Diameter (mm) 14
• Diameter (mm) 30

General Information

• Colour Black & Red
• Rated Current (A) 24
• Tightening Torque (Nm) 3.8
• Ingress Protection IP68 (Tested to 1 Metre at 60 Minutes)
• Working Temperature (°C) 100
• Operational Temperature (°C) -40 to +105
• Warranty (Years) 1
• Quantity Sold Individually

Materials

• Body Components: Nylon (PA66)
• Seals: Silica Gel

Additional Information

• 2 x PG16 inline entries with seals.
• Supplied with 5 pole connections using screw terminals
