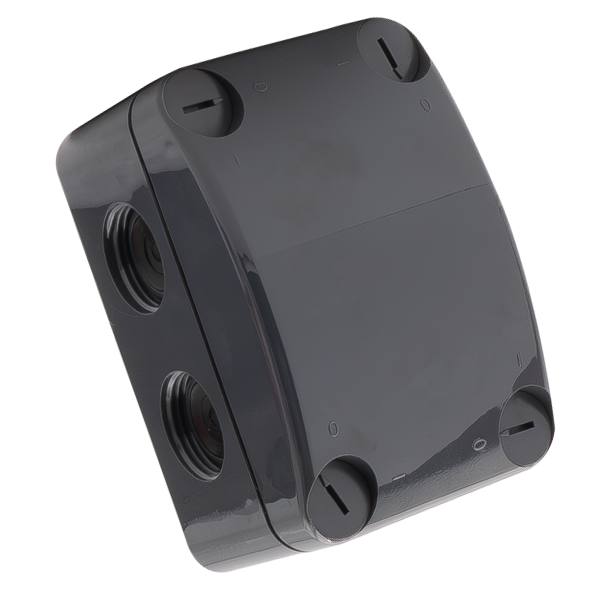

Unicrimp Q-Nect IP66 85 x 55 x 52mm Weatherproof Enclosure with Connectors Anthracite Grey QOE5553AGYF

Dimensions

• Length (mm) 55
• Width (mm) 85
• Height (mm) 52
• Entry Thread (mm) 20
• Gland Size (mm) 20

General Information

• Colour Anthracite Grey (RAL 7016)
• Rated Current (A) 32
• Conductor Size Range (mm²) 0.2 - 4.0 Stranded or Solid Core
• Ingress Protection IP66
• Operational Temperature (°C) -30 to +85
• Quantity Sold Individually

Materials

• Body Components: Polycarbonate
• Membranes: Thermoplastic Elastomer

Additional Information

• Supplied with 4 x 3 port lever connectors
• 6 x M20 threaded entries in sides with membranes. 2 x 15mm diameter membrane entries in base.

Compatible Accessories

• QL2322 - 2 port lever connectors
• QL3322 – 3 port lever connectors
• QL5322 – 5 port lever connectors
