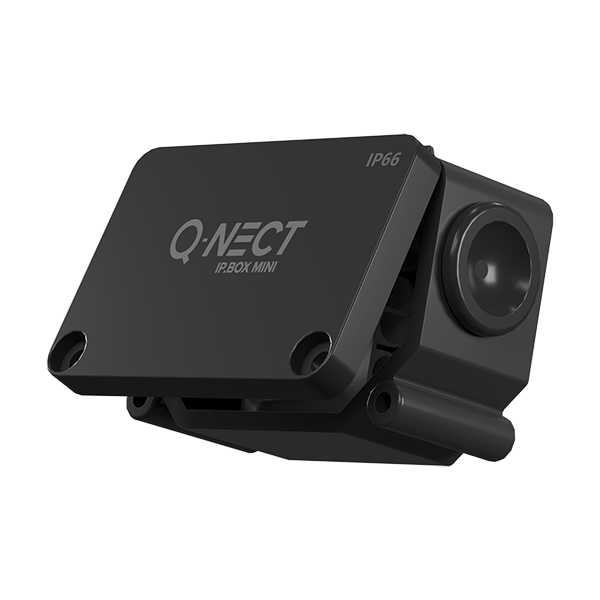

Unicrimp Q-Nect IP66 16A 2 Way 3 Pole Connector Box QOE5232BLK

Dimensions

• Length (mm) 52
• Width (mm) 35.5
• Height (mm) 26
• Minimum Cable Diameter (mm) 4
• Maximum Cable Diameter (mm) 6.5

General Information

• Colour Black & Red
• Rated Current (A) 16
• Tightening Torque (Nm) 2.5
• Ingress Protection IP66
• Working Temperature (°C) 100
• Operational Temperature (°C) -40 to +120
• Warranty (Years) 1
• Quantity Sold individually

Materials

• Body Components: Nylon (PA66)
• Membranes: Rubber

Additional Information

• 2 x PG7 inline entries with seals and membranes.
• Supplied with 3 pole connector block with push-in terminals.
