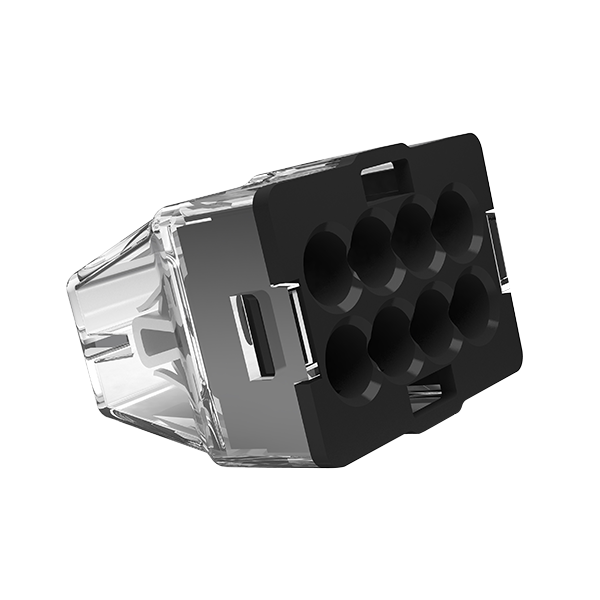

Unicrimp Q-Nect 32A 450V 8 Port Black Transparent Push In Wire Connector 50 Pack QP8242B2

Dimensions

• Width (mm) 17..8
• Depth (mm) 17.5
• Height (mm) 14.5
• Conductor Strip Length (mm) 11

General Information

• Colour Black Transparent
• Rated Current (A) 24
• Conductor Size Range (mm²) 0.5 - 2.5 Stranded or Solid Core
• Flammability UL94V-0
• Operational Temperature (°C) 85 Max.
• Quantity Box of 50

Materials

• Body: Polycarbonate
• Terminals: Tinned Copper
• Spring & Frame: Hardened Spring Steel & Zinc Plated
