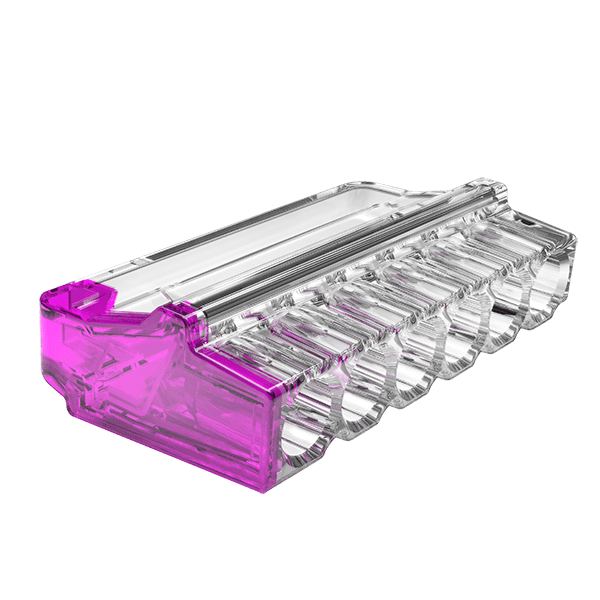

Unicrimp Q-Nect 32A 450V 6 Port Purple Transparent Push In Wire Connector 100 Pack QP6242P2

Dimensions

• Width (mm) 28.2
• Depth (mm) 16
• Height (mm) 7.5
• Conductor Strip Length (mm) 11

General Information

• Colour Purple Transparent
• Rated Current (A) 24
• Conductor Size Range (mm²) 0.5 - 2.5 Stranded or Solid Core
• Flammability UL94V-0
• Operational Temperature (°C) 85 Max.
• Quantity Box of 100

Materials

• Body: Polycarbonate
• Terminals: Tinned Copper
• Spring & Frame: Hardened Spring Steel & Zinc Plated
