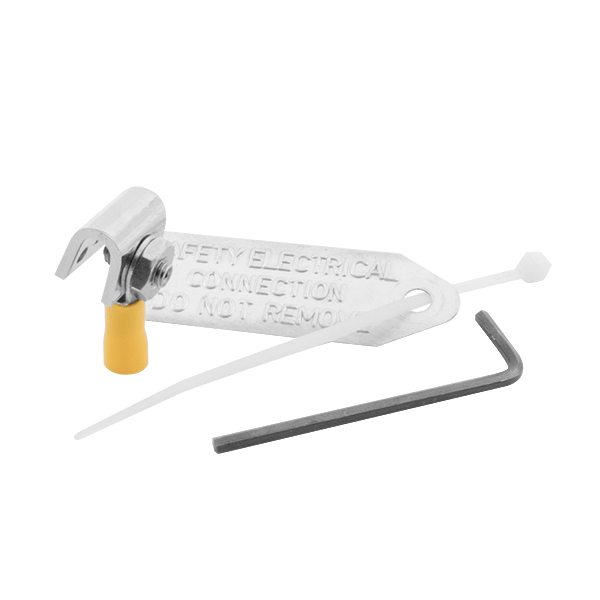

Unicrimp Q-Crimp Speedy Earth Clamps QSEC

Dimensions

• Spanner Size (mm) 5 (Allen Key Supplied)
• Clamp Dimensions (mm) 34 (L) x 17.5 (W) x 2 (D)
• Earth Tag Dimensions (mm) 63 (L) x 21 (W) x 0.5 (D)
• Crimp Dimensions (mm) 14.4 (L) x 7 (W) x 5.2 (D)

General Information

• Markings Safety Electrical Connection Do Not Remove
• Conductor Size Range (mm²) 2.5 - 6
• Operational Temperature (°C) -35 to +105
• Sold Individually

Materials

• Clamp Housing, Locking Nut: Brass
• Grub Screws: Mild Steel
• Crimp: Copper
• Safety Label: Aluminium

Standards

• BS 951: 2009
