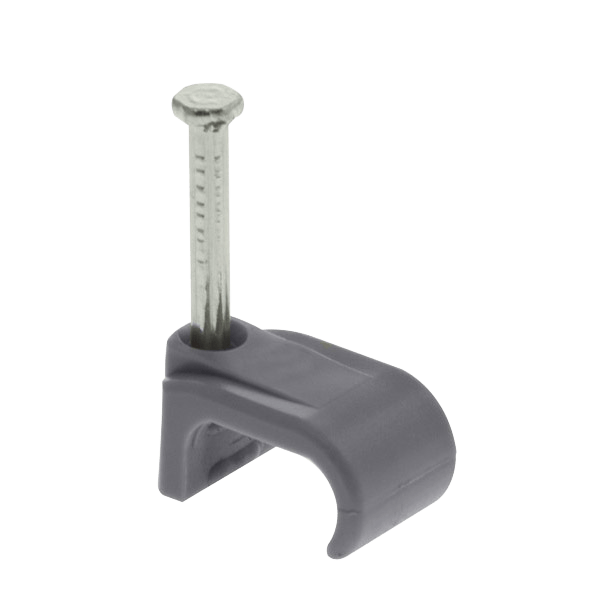

Unicrimp Q-Crimp 2 x 1.0 - 1.5mm Double T&E Cable Clips Grey QDC1

Dimensions

• Cable Dimension (mm) 9 x 18
• Cable Width (mm) 16.7
• Cable Height (mm) 9.4
• Clip Height (mm) 12.2
• Clip Width (mm) 23.2
• Clip Depth (mm) 12.9
• Nail Length (mm) 30
• Nail Diameter (mm) 2.5


General Information

• Colour Grey
• Suitable Cable Size (mm²) 10.0 to 16.0 (T&E)
• Operational Temperature (°C) -20 to +70
• Quantity Box of 100

Materials

• Body: Polyethylene
• Nail: Hardened Steel Plated

Additional Information

• High grade tough polyethylene for low temperature flexibility
• Long nail for good pull out value
• Thick steel nail prevents snapping
• Stress crack resistant
• Chemical inertness
