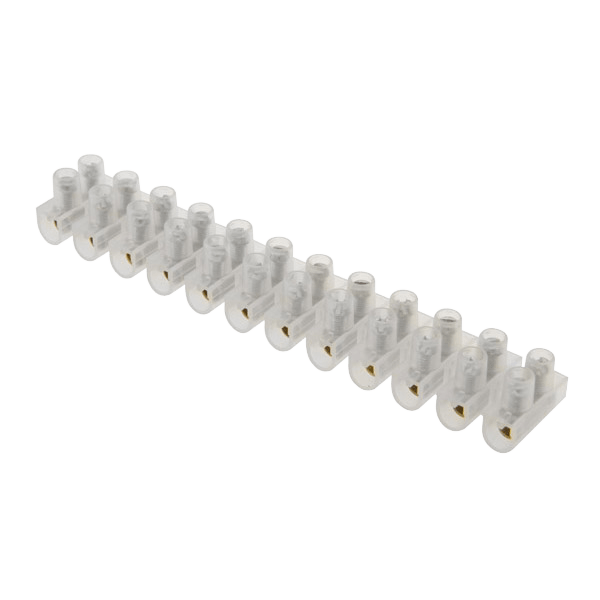

Unicrimp Q-Crimp 15A 12 Way Terminal Block Strip Clear Pack of 10 QTB15

Dimensions

• Overall Length (mm) 137
• Overall Height (mm) 18.8
• Terminal Entry Diameter (mm) 4.5
• Overall Width (mm) 22.5
• Terminal Housing Height (mm) 10.2
• Across Terminal Screw Centres (mm) 12
• Same Terminal Screw Centres (mm) 10
• Screw Entry Diameter (mm) 2.8

General Information

• Colour Clear
• Rated Current (A) 15 to 41
• Terminal Area (mm²) 12
• Torque Values (Nm) 1.2
• Operational Temperature (°C) 80
• Quantity Pack of 10

Materials

• Body: PE (Polyethylene)
• Terminals: Brass
• Terminal Screws: Steel, Zinc Plated
