Unicrimp Q-Crimp 12.7mm X 225mm Multi-Colour Heat Shrink Pack QHS12MP225

Dimensions

• Length (mm) 225
• Inner Diameter (mm) 12.7

General Information

• Elongation Break (%) 250
• Dielectric Strength (kV/mm) 20
• Shrink Ratio (°C) 2:1
• Shrink Temperature (°C) <120
• Longitudinal Change (%) -10 to +1
• Minimum Tensile Strength (MPa) 10
• Flammability ASTM D876 Passes UL224 VW1
• Thermal Heat Ageing (°C) 168 Hours - 150, 4 Hours - 200
• Chemical Resistance 23°C for 24 hours for petrol, H-515 hydraulic fluid, 0-148
• lubricating oil
• Continuous Temperature (°C) -55 to +125

Materials

• Material: Halogen-Free Polyolefin

Additional Information

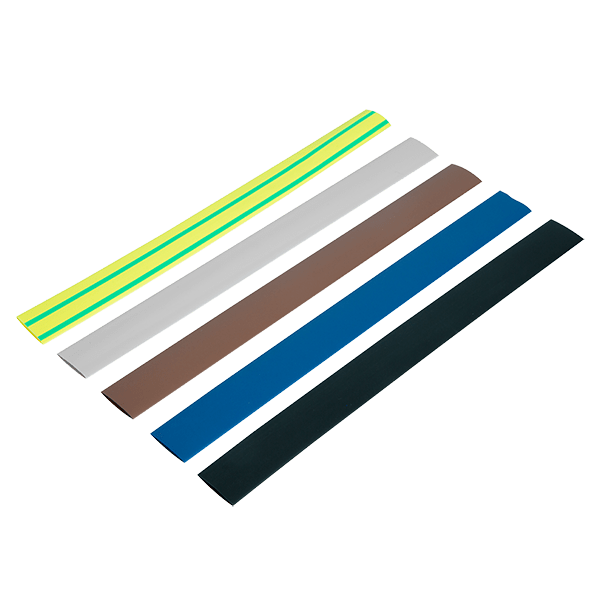

• Pack contains 3 each of brown, blue, green/yellow, black and grey sleeving.
