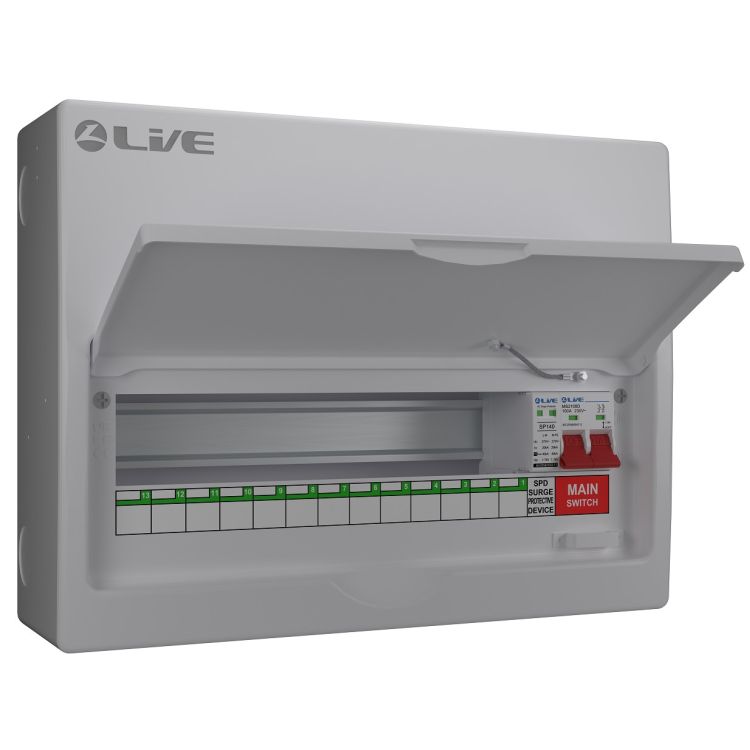

Live Electrical 6 Way (3 Free) Metal Consumer Unit with 100A Mains Switch & DP SPD LSMC6M-SP

Image for illustration purposes

• Spare Ways: 3
• Consumer unit enclosures supplied with neutral cable, busbar, neutral & earth terminals, DIN rail.
• Fitted with 20/40kA DP Surge Protective Device（SP140 1P+N/1）
• Fitted with DP 100A main Switch

• Fully enclosed metal construction body with drop down metal lid.
• Multiple circular cable entry knock-outs (25&32mm) on the top and bottom, 32mm on the sides, and back plus
• larger rear slots.
• Raised key holes for secure easy installation.
• Raised Din rail improves cable routing.
• Large and accessible wiring space, with extra space for RCBOs, MCBs.
• Flexible connection allows for various configurations of protected ways.
• Lockable lids
• Dimensions: 172mm (W) x 270mm (H) x 110mm (D)
