Live Electrical

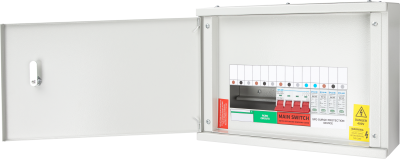

Live Electrical 2 Way TP&N Horizontal Distribution Board with 100A 4 Pole Main Switch & 4 Pole 20kA/40kA T2 SPD TPNH03-100S

Live Electrical 2 Way TP&N Horizontal Distribution Board with 100A 4 Pole Main Switch & 4 Pole 20kA/40kA T2 SPD TPNH03-100S

TPNH03-100S

£110.56 GBP
£110.56 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT
  • Modern style finished in epoxy powder paint to RAL7035
  • Complete shrouding for main incomer and link
  • Rated voltage AC380V/415V 50/60Hz
  • Removable gland plate for ease of cable entry
  • Main switch Double wiring terminal
  • Keyhole fixing for ease of wall mounting
  • Complies with BSEN 61439-1&3
  • Quicker installation with earth & neutral terminals adjacent to the MCBs/RCBOs
  • Surge Protection Device: 4 Pole Type 2 20kA/40kA SPD
  • Dimensions:  395mm (W) x 265mm (H) x 103mm (D)
