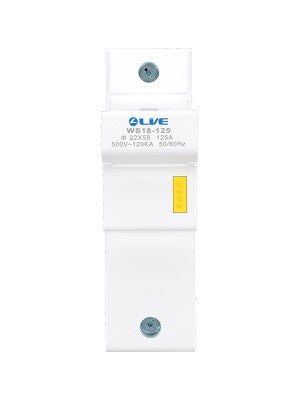

Live Electrical 125A Rail Mount Fuse Holder WS18-125

LVE fuse holders are mainly used for protecting the electrical circuit against overload and short circuits (gG/gL), they are made of a polymer high performance with a fusion temperature more than 300 °C. This provides a safety margin against a possible overheating of the fuse, and when it exceeds the rated power acceptance of the fuse holder.

• Does not come with fuse
• Fuse Size: 22x58mm
• Max Rated Current: 125A
• U(v): 690V AC
• Rated Power Dissipation: 9.5W
• Max Power Dissipation: 12W
• IEC / EN 60269
• Dimensions: 27mm (W) x 108mm (H) x 73mm (D)
