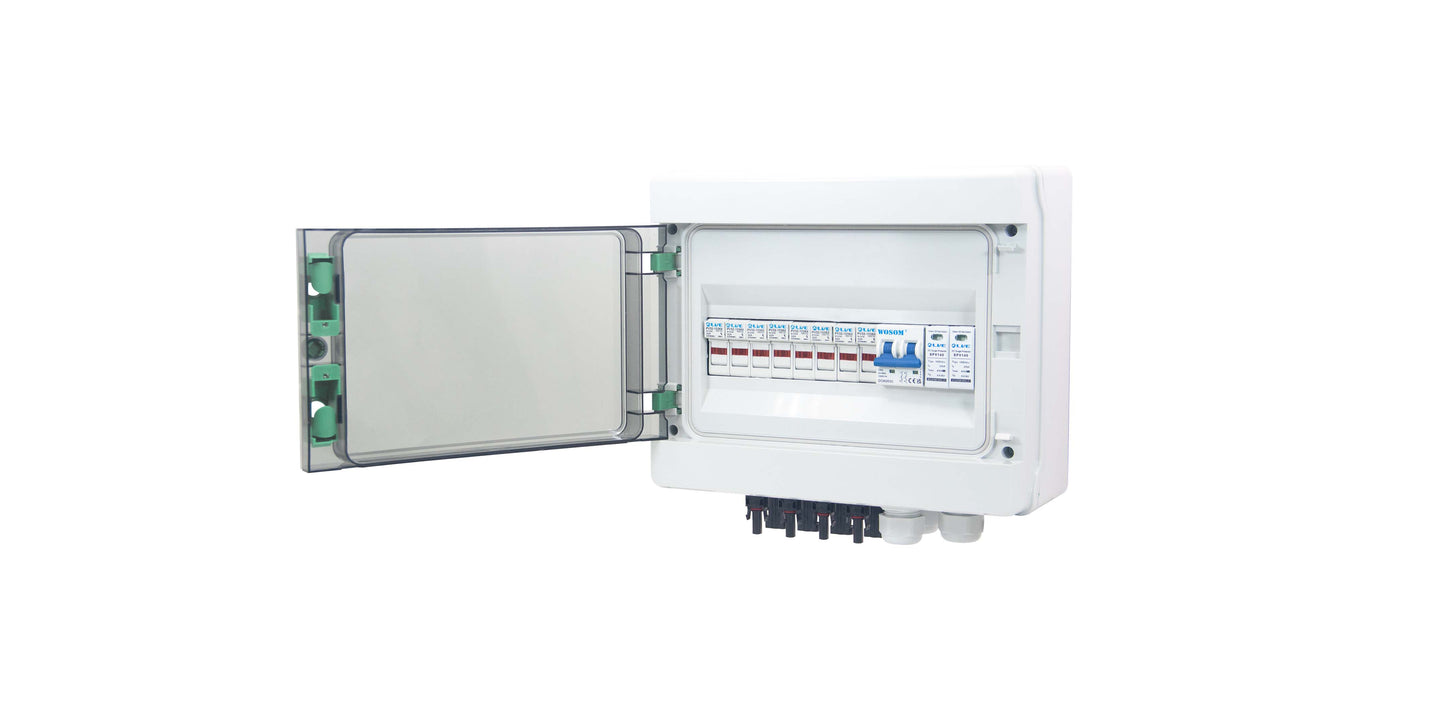

Live Electrical 12 Way Solar Consumer Unit DC1000V 4 Input 1 Output ENC12-PV4/1

• IP65 design,waterproof,anti dust and anti ultraviolet.
• Strict test for high and low temperature,used widely
• Flexible connection and simple installation,
• The simplified system wiring
• DC Fuse Both Protection Of Positive And Negative Poles
• DC Circuit Breaker For Isolating Circuits And Maintenance
• DC 1000V Surge Protector
• Method A: Solar Connector Wiring ( Replaceable + and - )
• Method B: Direct Wiring With Fuse

Congiuration:

• Fitted with 10x38 15A Photovoltaic Fuse
• Fitted with 32A 1000VDC Photovoltaic Fuse Holder with light
• Fitted with 2P 63A  DC1000VCircuit Breaker
• Fitted with 2P/20-40KADC 1000V Surge Protector
• Fitted with 1000VDCPhotovoltaic Gland Connector
