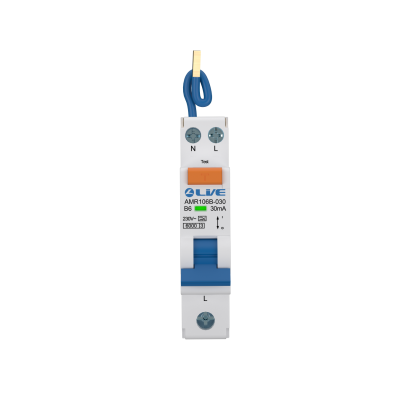

Live Electrical 10A 30mA Type A 1 Pole 6kA B Curve Bidirectional RCBO with Switch Neutral Line AMR110B-030

AMR is a range of MCB sized RCBOs, apply to circuit of AC50/60Hz. Rated Voltage to 230V, and current up to 40A, bring higher levels of safety to an electrical installation and its users because they include switched neutral as standard, which will guarantee that healthy circuits remain in service and that only a faulty circuit is switched off.

• Rated current (In): 6A, 10A, 16A, 20A, 25A, 32A, 40A
• Rated Voltage (Ue): 230V AC.
• Breaking capacity (Icn): 6kA.
• 1P+N
• Tripping characteristics: B, C
• Switching and isolation.
• Overload and short circuit protection.
• Type A detects and respond both AC and pulsating DC.
• Protection against fire hazard caused by insulation faults.
• Bidirectional
• Electrical endurance: 4000 cycles.
• Mechanical endurance: 100000 cycles.
• Complies with BS EN 61009-1.
• Type: A
• Terminal cable capacity maximum: IN 16mm, OUT 10mm
