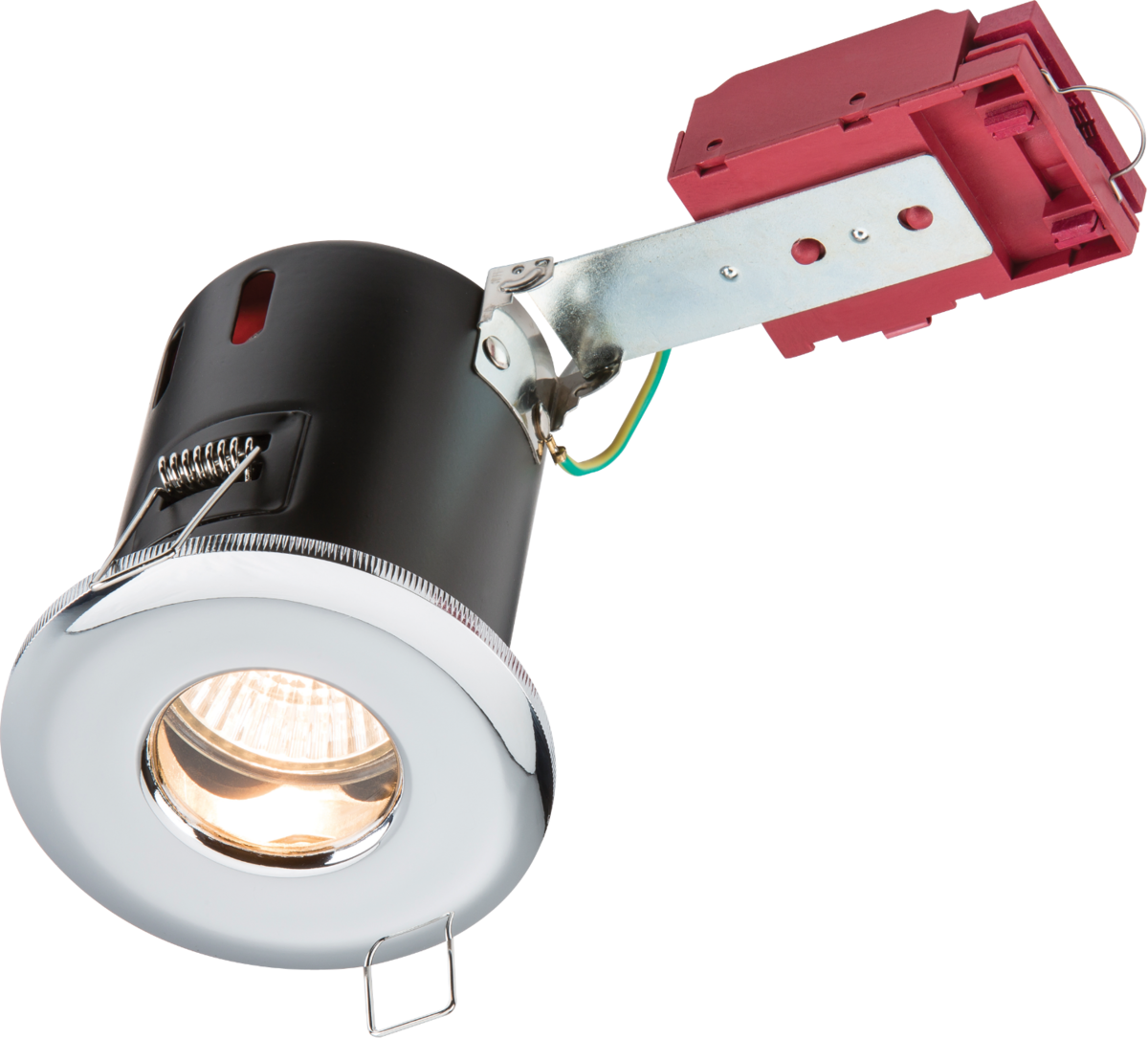

Knightsbridge IP65 GU10 IC Fire Rated Shower Downlights VFRSHGICCxx

IP65 Die-Cast GU10 Insulation Compatible Downlight

GU10 35W max. Class 1, must be earthed. Twist and lock front ring to secure lamp. Compatible with standard GU10 Halogen and ideal for all true retrofit LED and CFL lamps. Electrical termination via 10 Amp connector block within secure enclosure supplied with cord grip. Dimmable. Spring clip fixings with a recommended maximum ceiling thickness of 30mm.

Tested to:

• BS476 Part 21 & 23
• Building Regulations Part B (Fire Safety) compliant
• Fire-rated: 30/60/90min Solid timber, 30min Web-joist and 30min I-joist (Staircraft)

• Diameter - 87mm
• Height: 92mm
• Projection: 7mm
• Overall Height: 125mm
• Recessed depth: 118mm
• Cut Out Diameter: 70mm
• IP65 (IP20 from above)
• Pressed Steel & Aluminum
• Lamp Included: No

Part Numbers:

• Brushed Chrome - VFRSHGICCBR
• Chrome - VFRSHGICCC
• White - VFRSHGICCW
