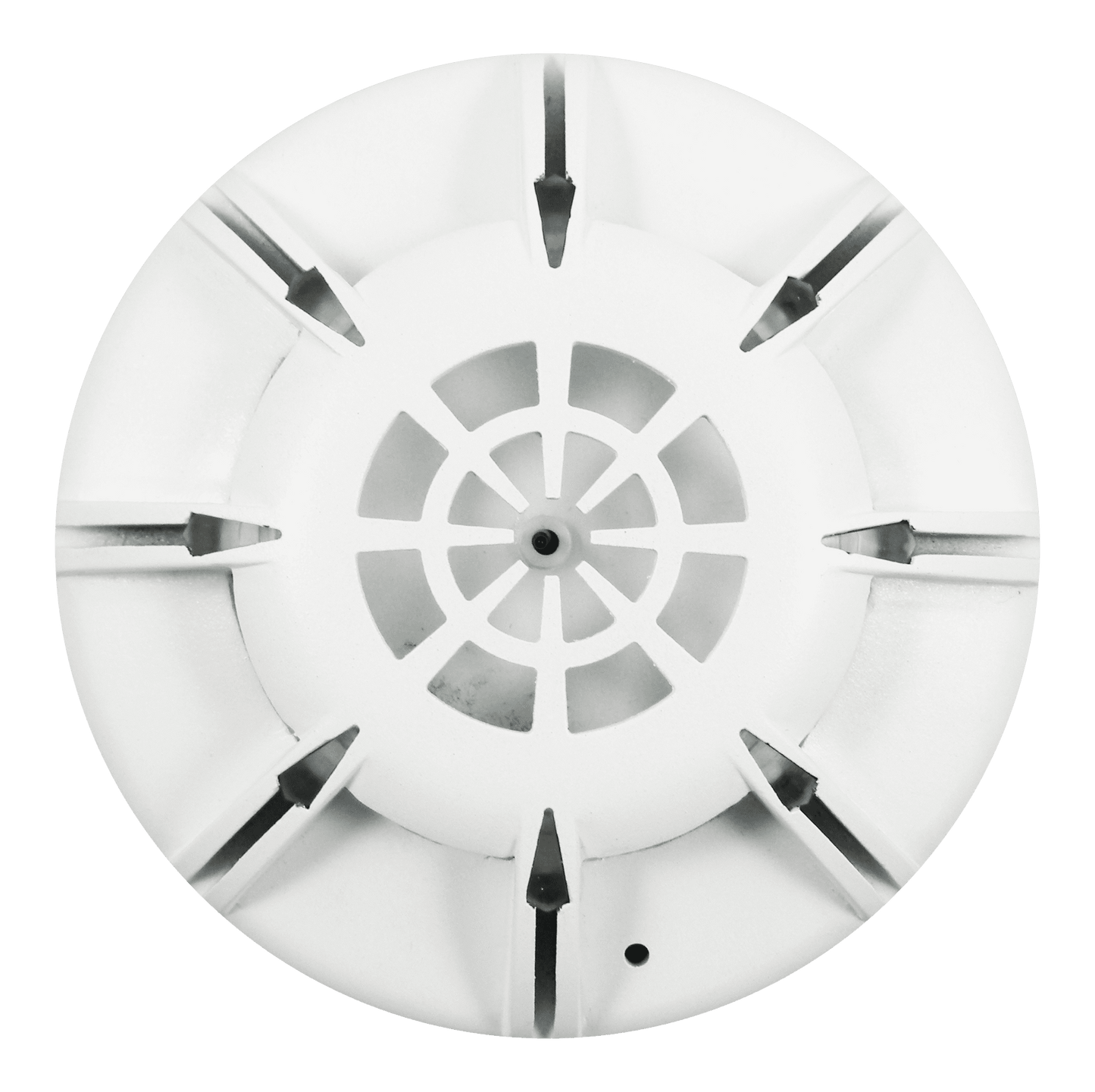

Hispec 2CAS Rate of Rise Heat Detector with Sounder & Flasher Base HS2CAS/HE/SB

The Hispec 2CAS panel is a single loop 2-wire conventional alarm panel, with the ability to soft address devices in smaller installations. Detectors, call points, interfaces and sounders can all be connected to the same addressable loop.

While the 2CAS is a single loop panel, it has the option to allow the system to be wired as 2, 4 or 8 radial circuits. This feature would allow the 2CAS panel to be used to replace an existing conventional panel, replacing the devices, but keeping the existing wiring. This feature can also be used for new installations, where the building layout makes radial wiring more convenient than wiring as a loop.

• Available with Sounder/ Flasher Base
• Soft Addressable via dip-switches
• Low profile design
• Remove LED Output

• Detection Type: Rate of Rise (Thermistor A1R)
• Operating Voltage: 17 - 28v DC
• Quiescent Current: 500 μA
• Alarm Current @24v DC: 5mA
• Ambient Op Temp: -10°C ~ +50°C
• Max Humidity: 95% RH Non-condensing
• Alarm Condition: Rate of Rise/ Fixed Heat Trigger @57°C
• Coverage: 50m²
• IP Rating: IP43
• Weight (Head Only): 152g
• Weight (W/Sounder Flasher Base): 308g
• Approved to: LPCB
• Designed to: EN54 - 5
• Included: Head Only, Sounder + Flasher Base
• Dimensions: 100mm (Dia) x 40mm (D) + 48mm (D) (Sounder & Flasher Base)
