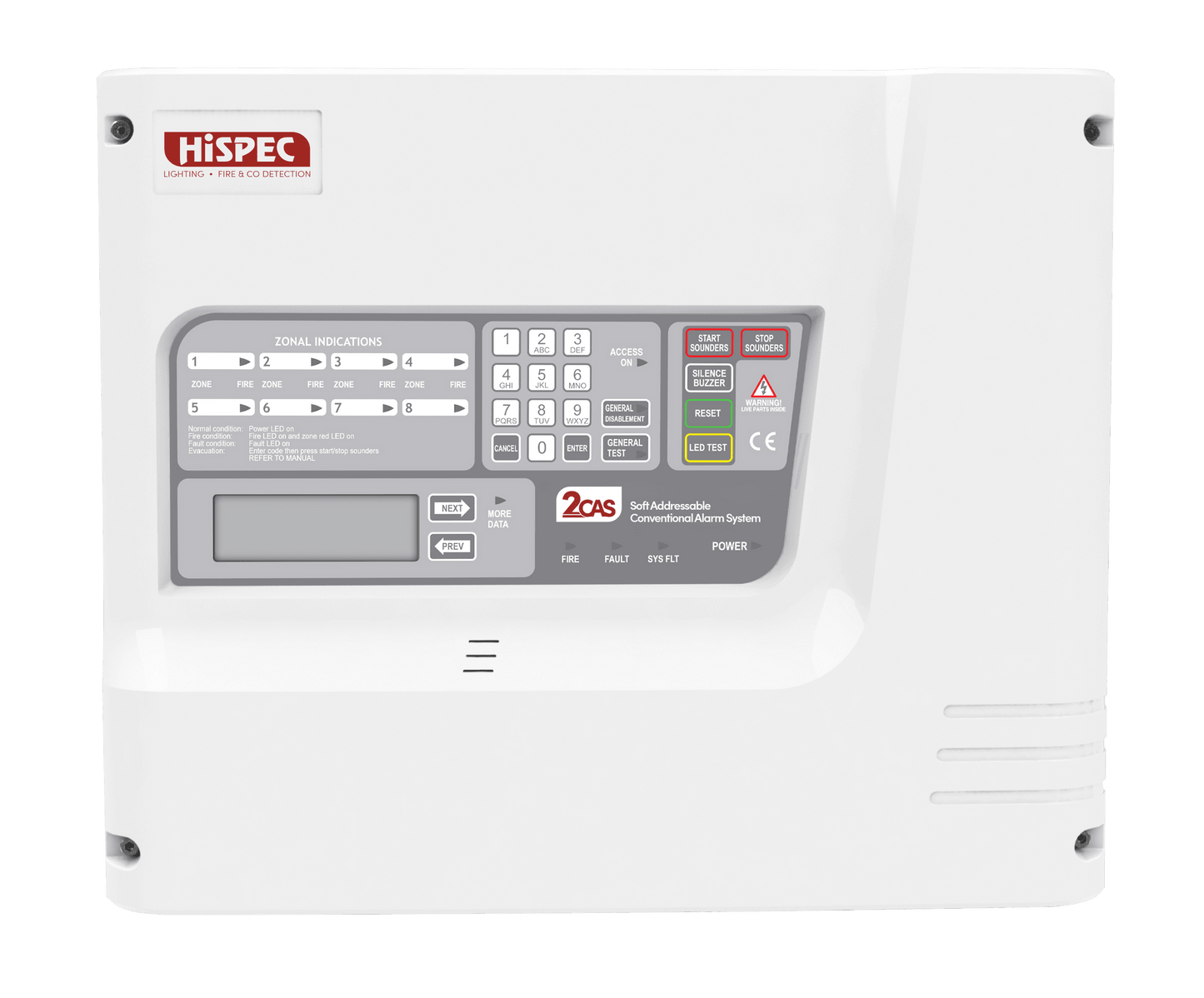

Hispec 2CAS 8 Zone Fire Alarm Control Panel HS2CAS/8ZP

The Hispec 2CAS panel is a single loop 2-wire conventional alarm panel, with the ability to soft address devices in smaller installations. Detectors, call points, interfaces and sounders can all be connected to the same addressable loop.

While the 2CAS is a single loop panel, it has the option to allow the system to be wired as 2, 4 or 8 radial circuits. This feature would allow the 2CAS panel to be used to replace an existing conventional panel, replacing the devices, but keeping the existing wiring. This feature can also be used for new installations, where the building layout makes radial wiring more convenient than wiring as a loop.

• 2 Zone, 4 Zone & 8 Zone available
• Each device is uniquely addressable
• Can be wired as radial loop
• 15 Devices per zone
• Separate sounder circuit not required
• 2048 Event history log
• Surface mountable and recessed mountable

• Supply Voltage: 230v ac 50/60Hz
• System Voltage: 29v dc nominal (19-30v)
• Loop Sounder Circuit Supply: 2x Conventional, 28v nominal, 150mA (20-30v dc)
• Fault Relay: 1xSELV@1A (normally energised)
• Fire Relay: 1xSELV@1A
• Detection Circuits: 8 Radial Circuits (Max), 4 Loop Circuits (Max)
• Loop Sounder Circuit: 80 Sounder (Max)
• Repeater Panel Connection: RS485
• Approved to: BS5839-1 & 6
• Designed to: EN54-2 & 4
• Dimensions: 770mm (W) x 311mm (H) x 113mm (D)
