Di-Log

Di-Log EVSE Charge Station Adaptor Kit DLEV1

Di-Log EVSE Charge Station Adaptor Kit DLEV1

SKU:DLEV1

Regular price £304.99 GBP
Regular price Sale price £304.99 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT

EVSE Charge Station Adaptor Kit

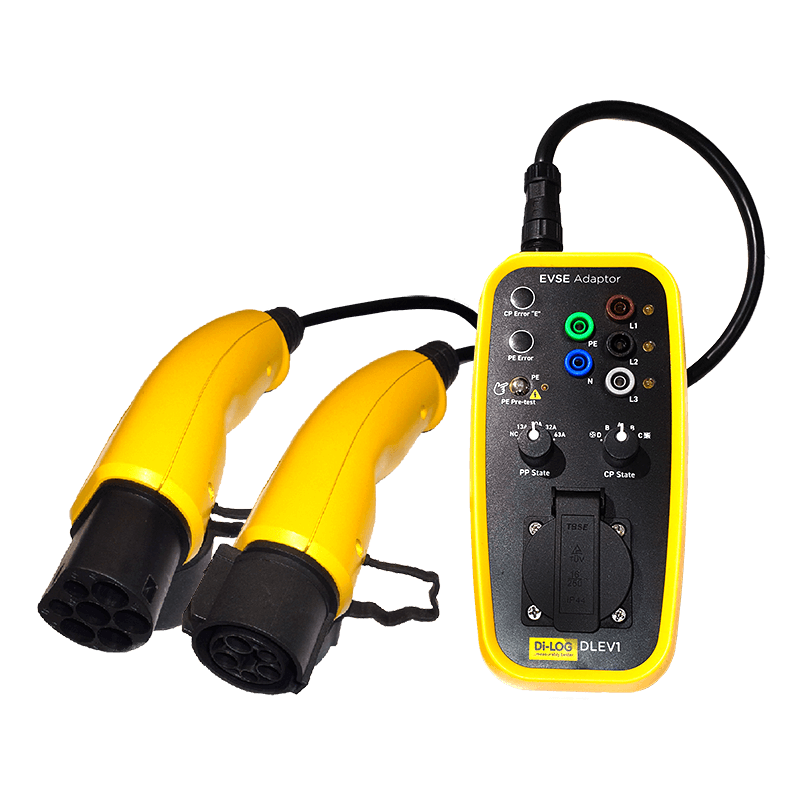

The DLEV1 is a universal EVSE Charge Station Adaptor Kit that will simulate the Proximity Pilot (PP) States and Control Pilot (CP) States required to energise a free-standing or wall-mounted EV charge station. Supplied with a type 1 and type 2 connector plug specifically designed for testing, the DLEV1 kit will also simulate PE Pre-test, CP Error “E” and PE Error with the added feature of CP signal output and load connection.

MFT & Load Connection

The DLEV1 has a 13A socket for MFT mains lead or can be used for inline load connection. In addition to this, there are also 4mm input terminals for single or 3-phase connections.

The DLEV1 is universal to all Electrical Installation Multifunction Testers, such as the Di-LOG DL9130EV and can even be purchased as part of our complete EV test kit, the DL9130EVKIT

Key Features

  • Universal to all electrical multifunctional installation testers
  • Proximity Pilot (PP) State (NC, 13A, 20A, 32A & 63A)
  • Control Pilot (CP) State (A,B,C & D)
  • PE Pre-test
  • CP Error “E”
  • PE Error
  • 13A Input for Loading or MFT connection
  • 4mm Input for Single & 3-Phase Chargers

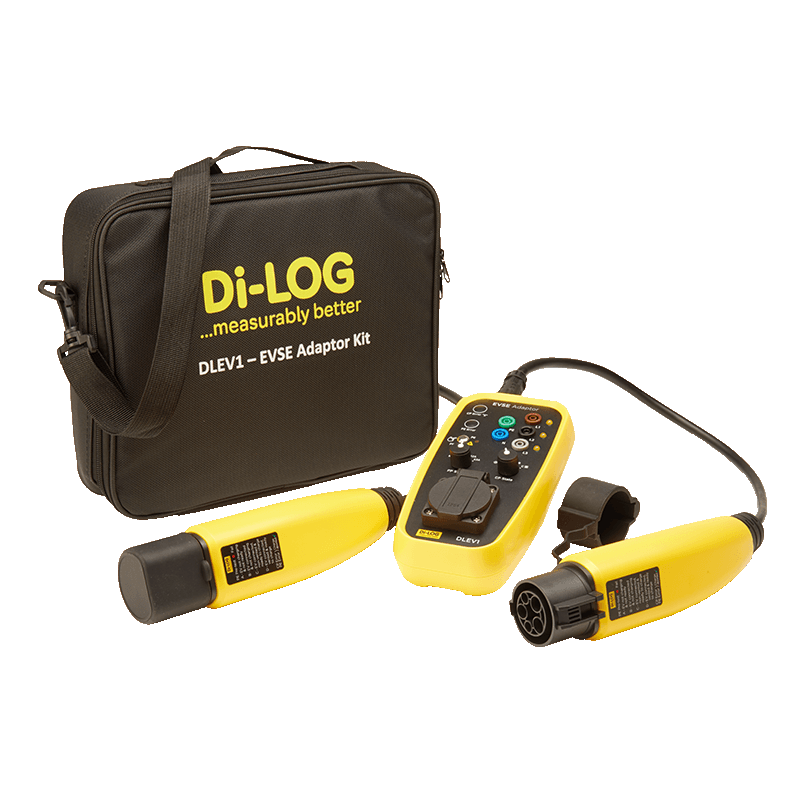

  • Supplied with Type 1 and Type 2 EV Plug

Safety standards

  • EN 61326-2-2
  • EN IEC 61326-1: 2021
  • BS EN 61010-1
  • BS EN 61010-2-30
  • IEC 62196
