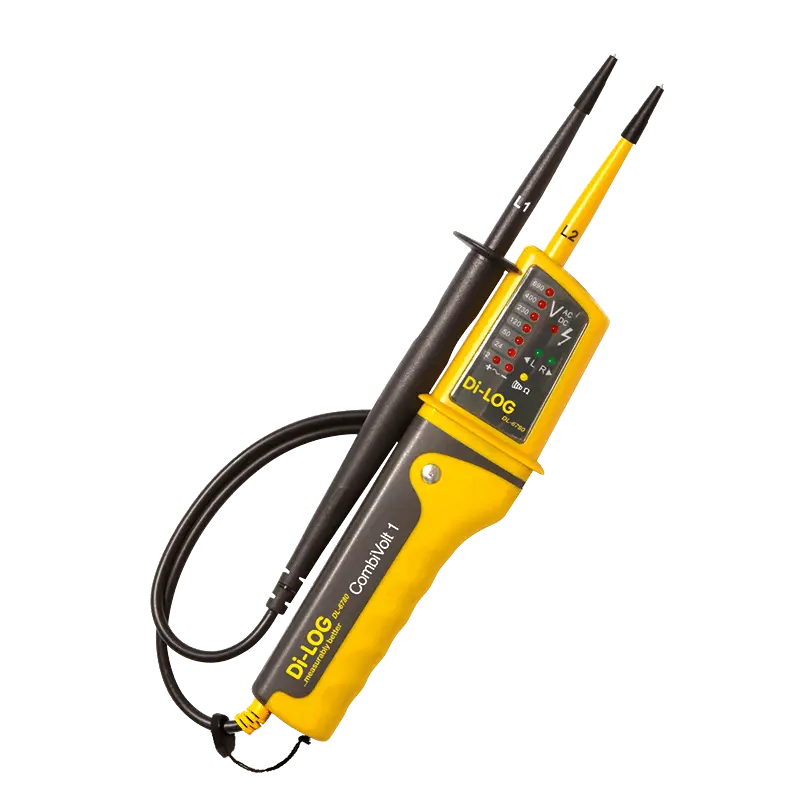

Di-Log CombiVolt 1 Voltage & Continuity Indicator DL6780

Voltage & Continuity Testers

The Di-log DL6780 CombiVolt 1 Voltage & Continuity Tester with Phase Rotation test is the bench mark for voltage indicators. The three-in-one tester with a rugged, ergonomically formed housing for perfect handling is fully conformant to BS EN 64213-3:2014. The DL6780 also offers Single Phase Detection

Features:

• Testing of AC/ DC voltages from 12 to 690 V AC/DC
• Meets safety and performance requirements of BS EN 61243-3 2014
• CAT IV 600V Safety Rating
• Continuity testing with optical and acoustic indication
• Automatic switching between voltage and continuity
• Phase rotation test system
• Single pole phase indication
• Fully compliant with GS38
• Fully operational voltage indication even when batteries are discharged
• Will not trip any RCD when testing across Live and Earth
• Single pole detection when L2 probe connected above 100V
