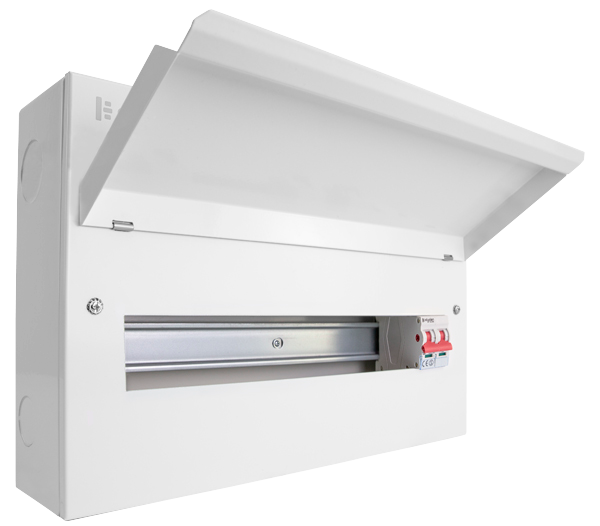

Click Elucian 18 Way (16 Free) Metal Consumer Unit with 100A Mains Switch CUEB18MS16

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

• Dimensions: 402mm (W) x 260mm (H) x 115mm (D)
• Rated Voltage: 230V
• Maximum Rated Current: 100A
• Free Ways: 16
• Total Ways: 18
• Device Terminals: Screwed Lug & Pin
• Main Switch Installed: 1 x 100A (CU2MS100)
• Main Switch Terminal Capacity: 35mm
• Blanks Supplied: 2 (CU1BLANK)
• E&N Terminals: Screw
• Tail Clamp Capacity: 25mm
• Enclosure Side Knockouts: 1 x 32mm & 1 x 40mm
• Enclosure Top Knockouts: 5 x 20mm, 2 x 25mm & 2 x 40mm
• Enclousure Bottom Knockouts: 5 x 20mm, 2 x 25mm & 2 x 40mm
• Enclosure Rear Knockout: 2 x 100mm x 60mm
• Impact Rating: IK05
• Ingress Protection: IP20
• Maximum Humidity: 95%
