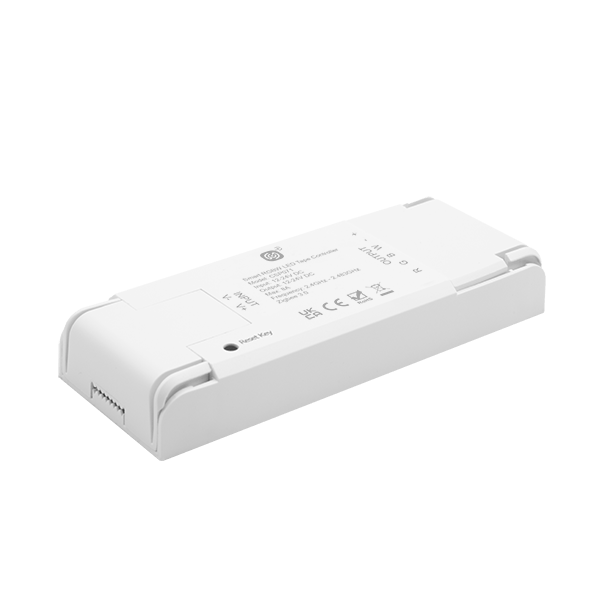

Click Smart Plus RGBW LED Tape Controller CSP071

Click Smart Plus, making your home smarter

Can you imagine how your home could integrate itself into your daily life? Click Smart+ , Scolmore's leading smart home brand, has been created to simplify and streamline your home life via the use of integrated technology

Click Smart+ boasts an elite range of smart home products, utilising Zigbee technology & WiFi to offer smart home solutions to new and existing wiring installations.

The possibility of Click Smart+ are endless, but the set up, whether with WiFi or Zigbee, is simple when using the Click Smart+ App

• Materials Housing: Polycarbonate Electronics: PCB & Electronic Components
• Operating Voltage (DC) 12 to 24
• Resistive Load Rating (A) 8
• Termination Type Screw
• Terminal Capacity - Solid (mm²) 1.5
• Terminal Capacity - Flex (mm²) 1.5
• Protocol Zigbee Signal Transmission Frequency 2.400 to 2.483GHz
• Open Air Wireless Range (M) <50
• Standby Current (mA) 50
• Indicator Colour LED Strip Connected
• Ingress Protection IP20
• Working Humidity ≤95%
• Operational Temperature (°C) -20 to +45
• Warranty (Years) 3
• Standards BS EN 62368-1, BS EN 62479, BS EN 50663, ETSI EN 301 489-1, ETSI EN 301 489-17 & EN 300 328 V2.2.2
• Additional Information
• Fits between the LED driver and LED strip
• Powered by the LED driver output (12-24V DC)
• Enables the control of white or RGBW LED strip
• Components Supplied Smart RGBW LED Tape Controller, Instruction Manual
• Installation Overview LED strip and controller powered by the LED driver installed
• Wirelessly pairs to ClickSmart+ app
• Programming Information With hub and app setup and controller wired and powered, press and hold the ‘Reset’ button for 5
• seconds, the LED strip will start flashing to confirm in pairing mode. Can be paired with hub via app
