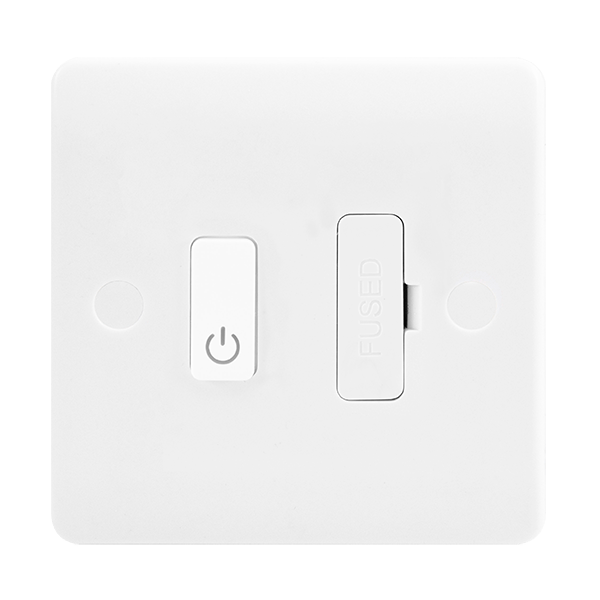

Click Smart Plus Mode 13A Zigbee Switched Fused Spur Connection Unit CMA30651

Click Smart Plus, making your home smarter

Can you imagine how your home could integrate itself into your daily life? Click Smart+ , Scolmore's leading smart home brand, has been created to simplify and streamline your home life via the use of integrated technology

Click Smart+ boasts an elite range of smart home products, utilising Zigbee technology & WiFi to offer smart home solutions to new and existing wiring installations.

The possibility of Click Smart+ are endless, but the set up, whether with WiFi or Zigbee, is simple when using the Click Smart+ App

• Dimensions With Gasket (mm) 86 (W) x 86 (H) x 20.5 (D)
• Plate Fixing Centres - Horizontal (mm) 60.3
• Style Rounded Profile
• Gasket Colour Polar White
• Materials Front Plate: Urea Rear Housing: Nylon
• Terminals: Brass Terminal Screws: Steel & Yellow Passivated
• Internal Busbars: Formed Pressed Brass Electronics: PCB & Electronic Components
• Gasket: Polycarbonate
• Operating Voltage (AC) 250 Frequency (Hz) 50
• Resistive Load Rating (A) 13
• Fuse Type Plug Top Cartridge Fuse
• Termination Type Screw
• Terminal Size (mm) 5.7 x 4.8 Terminal Torque Value (Nm) 1.2
• Terminal Capacity - Solid (mm²) 3 x 2.5 or 2 x 4
• Single Pole Switched Yes
• Twin Earth Terminals No
• Protocol Zigbee Signal Transmission Frequency 2.4GHz
• Open Air Wireless Range (M) <160
• Standby Current (mA) 1
• Indicator Colour White & Orange
• Minimum Back Box Depth (mm) 25 (With Gasket) 35 (Without Gasket)
• Ingress Protection IP20
• Operational Temperature (°C) -5 to +40
• Warranty (Years) 3
• Standards BS 1363-4 & BS 1362, BS EN 61000-6-1, BS EN 61000-6-3, BS EN 60669-2-1 in conjunction with BS EN 60669-1
• Additional Information
• For cleaning / polishing of products, use only a soft, dry, clean cloth.
• Zigbee signal mesh
• Enables manual control (unless locked), wireless control and automated control
• Voice control via ClickSmart+ Hub using Alexa and/or Google Home.
• Ensure that the mains supply is isolated before commencing installation and refer to the circuit diagram with the relevant product.
• Bare earth cables must always be covered with appropriate sleeving and wired to the earth terminal.
• All white moulded accessories are manufactured using Urea Formaldehyde, which has similar inherent properties to antimicrobial additives
• that inhibit the growth of infectious diseases as well as anti-viral properties against enveloped and non-enveloped viruses.
• All products have been independently tested with 99.9% of enveloped viruses and 92% of non-enveloped viruses killed off whilst achieving a
• 99.9% kill rate across all four types of the strains of bacteria - MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae.
• Components Supplied Smart Fused Connection Unit, Gasket, Fixing Screws, Screw Caps, Instruction Manual
• Programming Information With hub and app setup and socket wired and powered, press the switch for five to ten seconds, the orange LED indicator starts flashing. Can be paired with hub via app.
