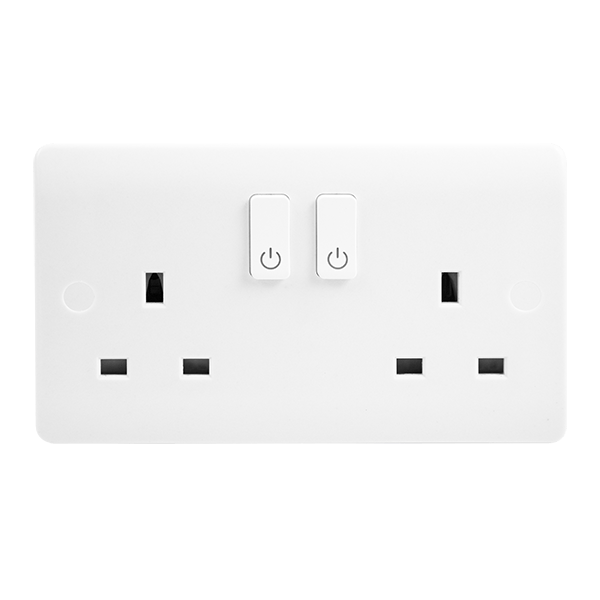

Click Smart Plus Mode 13A 2 Gang Zigbee Switched Socket CMA30036

Click Smart Plus, making your home smarter

Can you imagine how your home could integrate itself into your daily life? Click Smart+ , Scolmore's leading smart home brand, has been created to simplify and streamline your home life via the use of integrated technology

Click Smart+ boasts an elite range of smart home products, utilising Zigbee technology & WiFi to offer smart home solutions to new and existing wiring installations.

The possibility of Click Smart+ are endless, but the set up, whether with WiFi or Zigbee, is simple when using the Click Smart+ App

• Plate Fixing Centres - Horizontal (mm) 120.6
• Style Rounded Profile
• Materials Front Plate: Urea Rear Housing: Nylon
• Terminals: Brass Terminal Screws: Steel & Yellow Passivated
• Internal Busbars: Formed Pressed Brass Electronics: PCB & Electronic Components
• Operating Voltage (AC) 250 Frequency (Hz) 50
• Resistive Load Rating (A) 13
• Termination Type Screw
• Terminal Size (mm) 5.7 x 4.8 Terminal Torque Value (Nm) 1.2
• Terminal Capacity - Solid (mm²) 3 x 2.5 or 2 x 4
• Single Pole Switched Yes
•  3 Pin Safety Shuttered Yes
• Twin Earth Terminals Yes
• Protocol Zigbee Signal Transmission Frequency 2.4GHz
• Open Air Wireless Range (M) <160
• Standby Current (mA) 1
• Indicator Colour White & Orange
• Minimum Back Box Depth (mm) 25
• Ingress Protection IP20
• Operational Temperature (°C) -5 to +40
• Warranty (Years) 3
• Standards BS 1363-2, BS EN 61000-6-1, BS EN 61000-6-3, BS EN 60669-2-1 in conjunction with BS EN 60669-1
• Additional Information
• For cleaning / polishing of products, use only a soft, dry, clean cloth.
• 3 pin safety shutter. The shutter will only open once all three plug pins are inserted.
• Zigbee signal mesh
• Enables manual control (unless locked), wireless control and automated control
• Voice control via ClickSmart+ Hub using Alexa and/or Google Home.
• Ensure that the mains supply is isolated before commencing installation and refer to the circuit diagram with the relevant product.
• Bare earth cables must always be covered with appropriate sleeving and wired to the earth terminal.
• All white moulded accessories are manufactured using Urea Formaldehyde, which has similar inherent properties to antimicrobial additives
• that inhibit the growth of infectious diseases as well as anti-viral properties against enveloped and non-enveloped viruses.
• All products have been independently tested with 99.9% of enveloped viruses and 92% of non-enveloped viruses killed off whilst achieving a
• 99.9% kill rate across all four types of the strains of bacteria - MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae.
• Components Supplied Smart Socket Outlet, Fixing Screws, Screw Caps, Instruction Manual
• Programming Information With hub and app setup and socket wired and powered, press one of the switches for five to ten seconds, the orange LED indicator starts flashing. Can be paired with hub via app.
