Click Smart Plus Deco 13A 1 Gang Zigbee Switched Socket Black Inserts VPxx30535BK

Click Smart Plus, making your home smarter

Can you imagine how your home could integrate itself into your daily life? Click Smart+ , Scolmore's leading smart home brand, has been created to simplify and streamline your home life via the use of integrated technology

Click Smart+ boasts an elite range of smart home products, utilising Zigbee technology & WiFi to offer smart home solutions to new and existing wiring installations.

The possibility of Click Smart+ are endless, but the set up, whether with WiFi or Zigbee, is simple when using the Click Smart+ App

• Plate Dimensions (mm) 88 (W) x 88 (H) x 8 (D)
• Dimensions With Gasket (mm) 91 (W) x 91 (H) x 9 (D)
• Plate Fixing Centres - Horizontal (mm) 60.3
• Style Victorian
• Insert Colour Black
• Gasket Colour Black

• Rear Housing: Nylon Terminals: Brass
• Terminal Screws: Steel & Yellow Passivated Internal Busbars: Formed Pressed Brass
• Electronics: PCB & Electronic Components
• Operating Voltage (AC) 250 Frequency (Hz) 50
• Resistive Load Rating (A) 13
• Termination Type Screw
• Terminal Size (mm) 5.7 x 4.8 Terminal Torque Value (Nm) 1.2
• Terminal Capacity - Solid (mm²) 3 x 2.5 or 2 x 4
• Single Pole Switched Yes
•  3 Pin Safety Shuttered Yes
• Twin Earth Terminals No
• Protocol Zigbee Signal Transmission Frequency 2.4GHz
• Open Air Wireless Range (M) <160
• Standby Current (mA) 1
• Indicator Colour White & Orange
• Minimum Back Box Depth (mm) 25
• Ingress Protection IP20
• Operational Temperature (°C) -5 to +40
• Warranty (Years) 3
• Standards BS 1363-2, BS EN 61000-6-1, BS EN 61000-6-3, BS EN 60669-2-1 in conjunction with BS EN 60669-1
• Additional Information
• For cleaning / polishing of products, use only a soft, dry, clean cloth.
• 3 pin safety shutter. The shutter will only open once all three plug pins are inserted.
• Zigbee signal mesh
• Enables manual control (unless locked), wireless control and automated control
• Voice control via ClickSmart+ Hub using Alexa and/or Google Home
• Components Supplied Smart Socket Outlet, Fixing Screws, Instruction Manual
• Programming Information With hub and app setup and socket wired and powered, press the switch for five to ten seconds, the
• orange LED indicator starts flashing. Can be paired with hub via app.

Part Numbers:

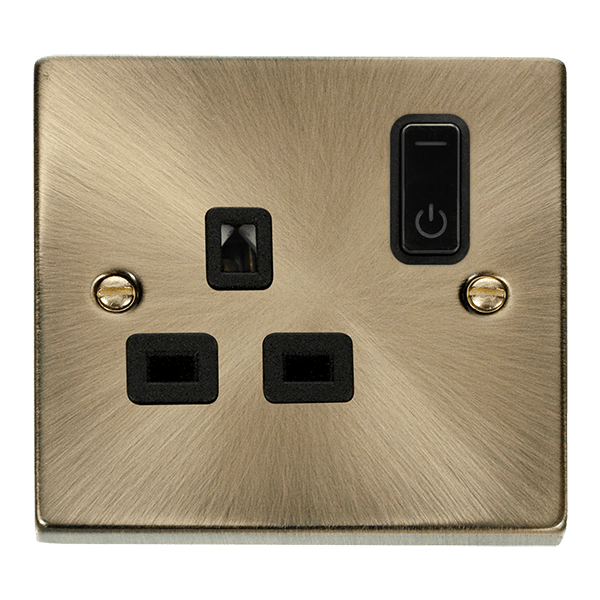

• Antique Brass - VPAB30535BK

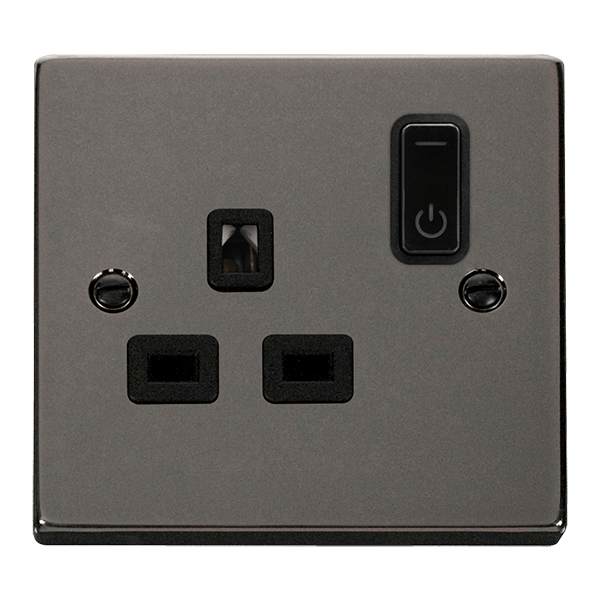

• Black Nickel - VPBN30535BK
• Brass - VPBR30535BK

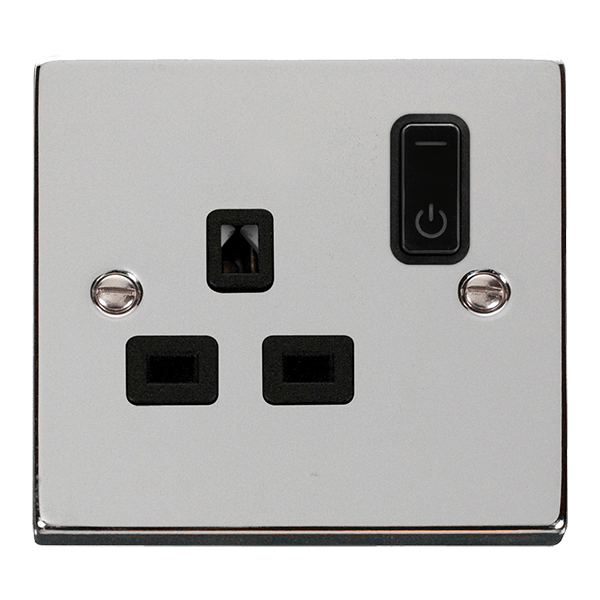

• Chrome - VPCH30535BK

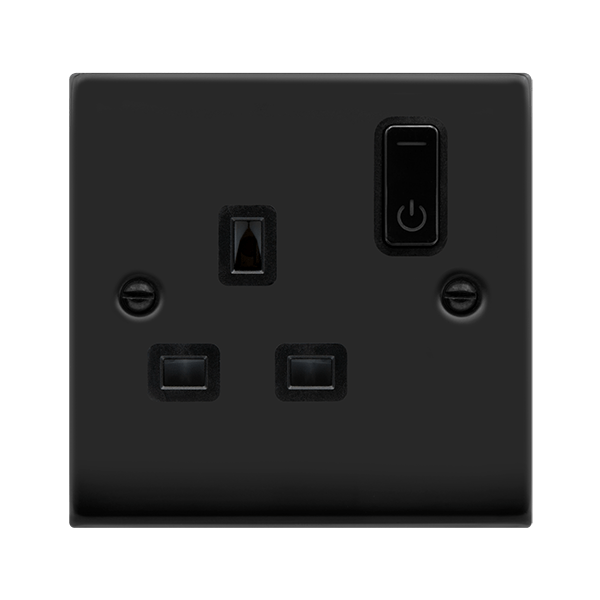

• Matt Black - VPMB30535BK

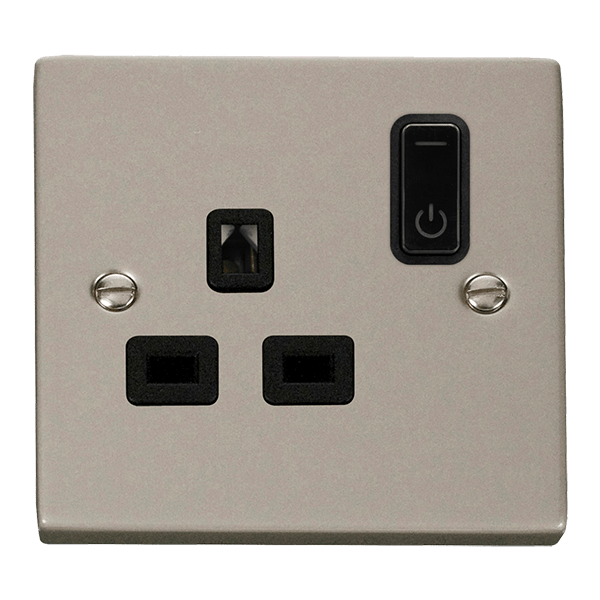

• Pearl Nickel - VPPN30535BK

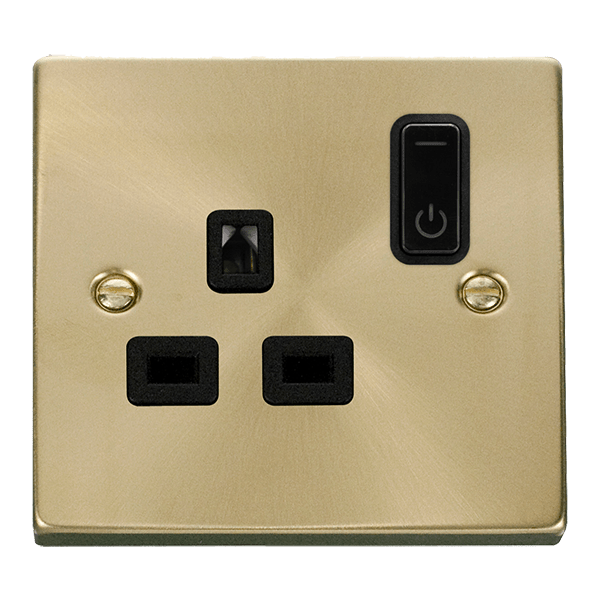

• Satin Brass - VPSB30535BK
• Satin Chrome - VPSC30535BK

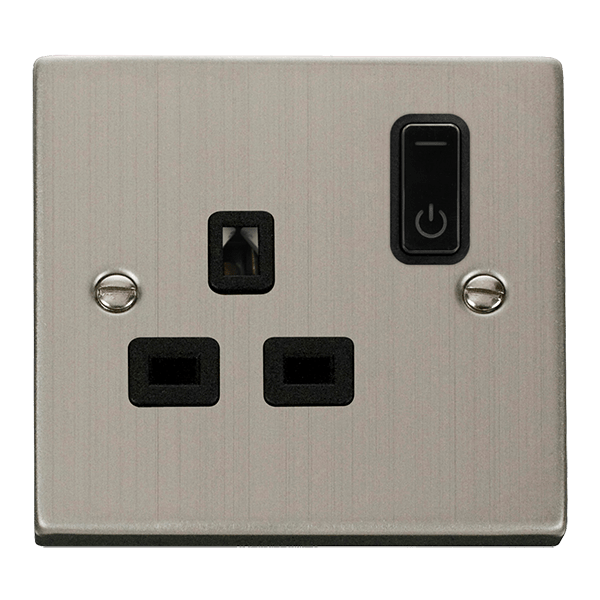

• Stainless Steel - VPSS30535BK
