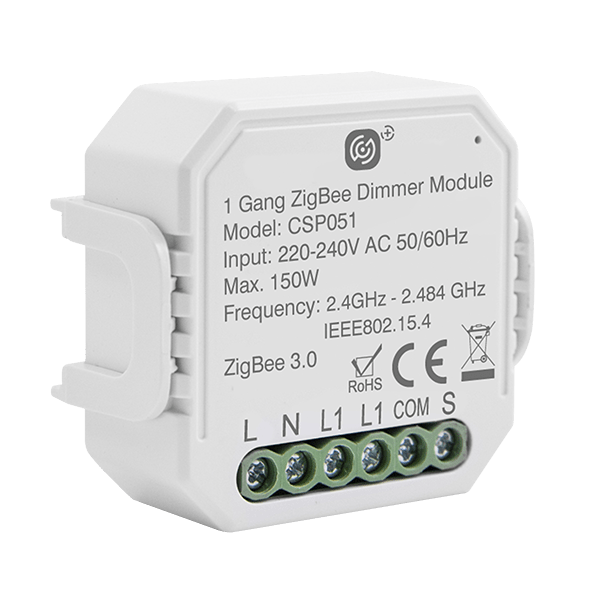

Click Smart Plus 1 Gang 150W Dimming Receiver CSP051

Click Smart Plus, making your home smarter

Can you imagine how your home could integrate itself into your daily life? Click Smart+ , Scolmore's leading smart home brand, has been created to simplify and streamline your home life via the use of integrated technology

Click Smart+ boasts an elite range of smart home products, utilising Zigbee technology & WiFi to offer smart home solutions to new and existing wiring installations.

The possibility of Click Smart+ are endless, but the set up, whether with WiFi or Zigbee, is simple when using the Click Smart+ App

• Materials Housing: Polycarbonate Electronics: PCB & Electronic Components
• Operating Voltage (AC) 220-240 Frequency (Hz) 50/60
• Load Rating (W) 150
• Load Rating Comments LED
• Termination Type Screw
• Terminal Size (mm) 3 x 2 Terminal Torque Value (Nm) 0.2
• Terminal Capacity - Solid (mm²) 3 x 1.5
• Protocol Zigbee Signal Transmission Frequency 2.400 to 2.4835GHz
• Open Air Wireless Range (M) <100
• Standby Current (mA) 3
• Working Current (mA) 20
• Indicator Colour Blue
• Minimum Back Box Depth (mm) 35 (47 Flat Plate)
• Ingress Protection IP20
• Working Humidity 10%-90%RH
• Operational Temperature (°C) -10 to +40
• Warranty (Years) 3
• Standards BS EN 60669-2-1, BS EN 55035, BS EN 61000-3-2, BS EN 61000-3-3, BS EN 62311
• Additional Information
• No neutral connection required
• Zigbee signal mesh
• 230V retractive switch(es) control with permanent live required
• Voice control via ClickSmart+ Hub using Alexa and/or Google Home
• Components Supplied Dimming Receiver, Mounting Bracket (DIN Rail Mountable or Screw Fixable), Instruction Manual
• Installation Overview No neutral connection required (neutral supplied for convenience)
• Utilises press to make retractive switches
• Utilises retractive switches with standard switch wiring
• Can be multi-way switch controlled along with control via the ClickSmart+ app
• Programming Information With hub and app setup and receiver wired and powered, with the light ‘Off’ press and hold the
• retractive switch for 10 seconds, the receiver LED will start flashing to confirm in pairing mode. Can be paired with hub via app.
