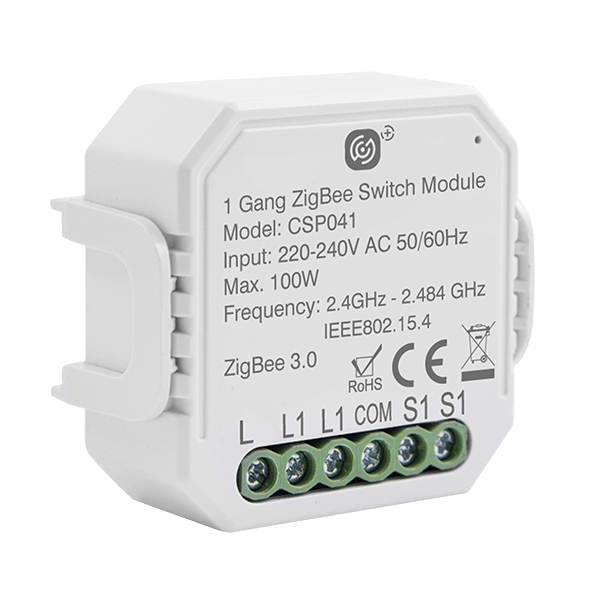

Click Smart Plus 1 Gang 100W Switching Receiver CSP041

Click Smart Plus, making your home smarter

Can you imagine how your home could integrate itself into your daily life? Click Smart+ , Scolmore's leading smart home brand, has been created to simplify and streamline your home life via the use of integrated technology

Click Smart+ boasts an elite range of smart home products, utilising Zigbee technology & WiFi to offer smart home solutions to new and existing wiring installations.

The possibility of Click Smart+ are endless, but the set up, whether with WiFi or Zigbee, is simple when using the Click Smart+ App

• Materials Housing: Polycarbonate Electronics: PCB & Electronic Components
• Operating Voltage (AC) 220-240 Frequency (Hz) 50/60
• Load Rating (W) 100
• Load Rating Comments LED
• Termination Type Screw
• Terminal Size (mm) 3 x 2 Terminal Torque Value (Nm) 0.2
• Terminal Capacity - Solid (mm²) 3 x 1.5
• Protocol Zigbee Signal Transmission Frequency 2.400 to 2.484GHz
• Open Air Wireless Range (M) <100
• Standby Current (mA) 1
• Working Current (mA) 10
• Indicator Colour Blue
• Minimum Back Box Depth (mm) 35 (47 Flat Plate)
• Ingress Protection IP20
• Working Humidity 10%-90%RH
• Operational Temperature (°C) -10 to +40
• Warranty (Years) 3
• Standards BS EN 60669-2-1, BS EN 55035, BS EN 61000-3-2, BS EN 61000-3-3, BS EN 62311
• Additional Information
• No neutral connection required
• Zigbee signal mesh
• Utilises standard 230V switch wiring with permanent live required
• Voice control via ClickSmart+ Hub using Alexa and/or Google Home
• Components Supplied Switching Receiver, Mounting Bracket (DIN Rail Mountable or Screw Fixable), Instruction Manual
• Installation Overview No neutral connection required.
• Utilises standard on/off switches
• Utilises standard switches and switch wiring
• Can be multi-way switch controlled along with control via the ClickSmart+ app
• Programming Information With hub and app setup and receiver wired and powered, if not in pairing mode press the switch ‘On’
• and ‘Off’ five times, the receiver LED will start flashing or the switch ‘On’ and ‘Off’ no longer operates to confirm in pairing mode. Can be paired with hub via app.
