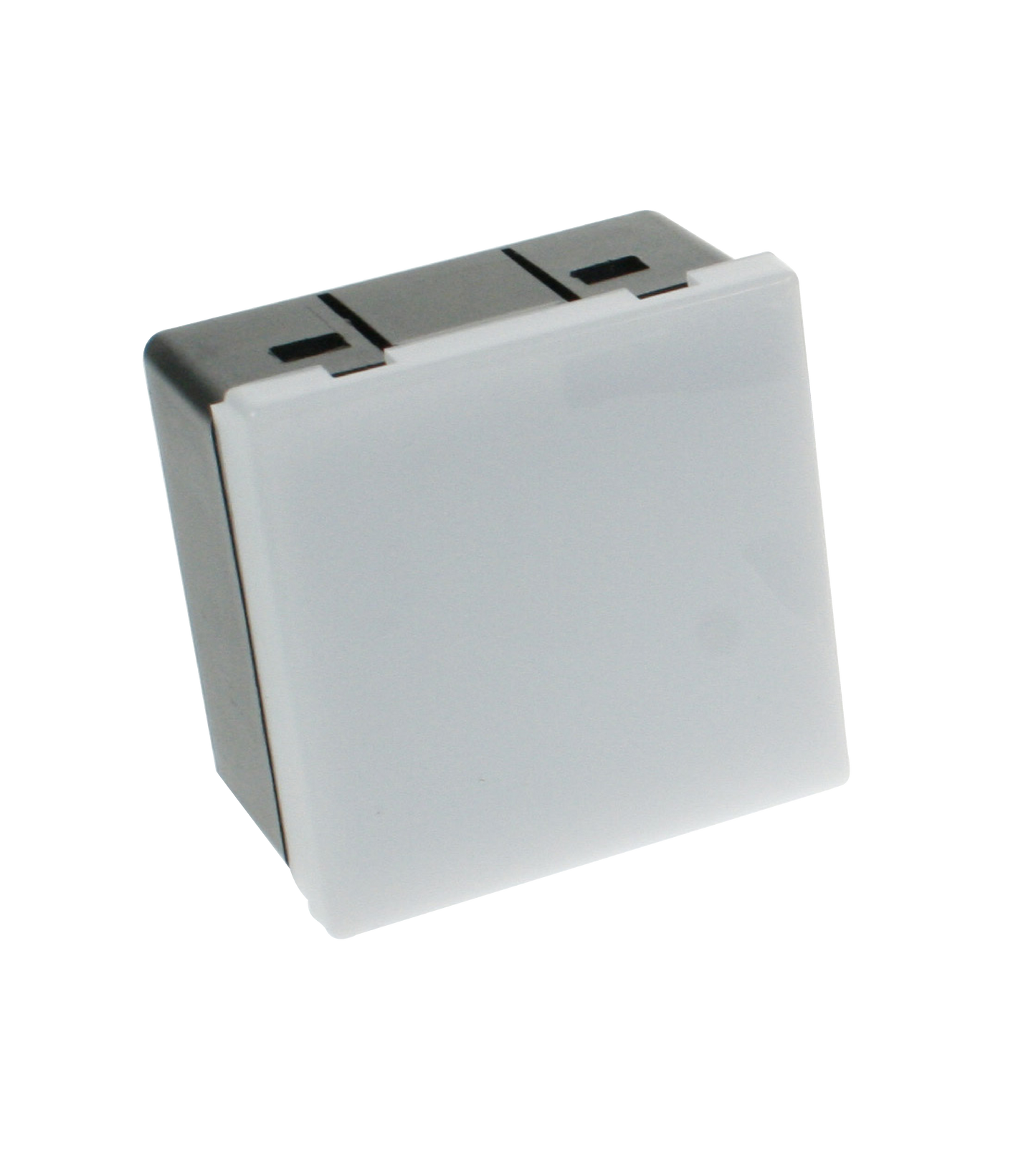

Click New Media 230V 1W LED 50mm x 50mm Euro Module with Fly Lead MM1001xx

The brief given to our designers charged with the task of developing the New Media range was to produce a comprehensive yet flexible and user friendly ‘system’ which enables the installer to easily create topical media and power cabling solutions. All of the modules featured in this brochure are of the standard euro grid configuration based on 1 aperture modules of 25 x 50mm. Mounting plates are available as wall or floor plates and can accommodate 1 - 16 modules according to requirements. Instead of numerous unsightly individual sockets, a single New Media plate can be used at a convenient point to bring together any combination of media modules. The individual modules are available in black, grey or white finish and are suitable for mounting on blank plates from selected accessory ranges, namely the Polar and Mode moulded accessory ranges, the Click metal clad range plus the Deco Plus, Deco, Define and Definity decorative metal ranges.

• Dimensions: 50mm (W) x 50mm (H) x 30mm (D)
• Rated Voltage: 230V
• Flylead Cable Length: 110mm

• Pre Wired Cable: 2G 0.75mm

• Double Insulated: Yes

Part Numbers:

• Warm White LED - MM1001WW
• Cool White LED - MM1001CW
