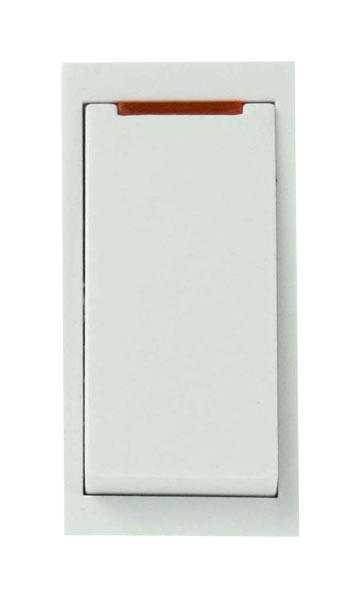

Click New Media 20A DP Switch Module with Neon MM023xx

Click New Media 20A DP Switch Module with Neon MM023xx

SKU:MM023BK

Regular price £3.65 GBP
Regular price Sale price £3.65 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT

The brief given to our designers charged with the task of developing the New Media range was to produce a comprehensive yet flexible and user friendly ‘system’ which enables the installer to easily create topical media and power cabling solutions. All of the modules featured in this brochure are of the standard euro grid configuration based on 1 aperture modules of 25 x 50mm. Mounting plates are available as wall or floor plates and can accommodate 1 - 16 modules according to requirements. Instead of numerous unsightly individual sockets, a single New Media plate can be used at a convenient point to bring together any combination of media modules. The individual modules are available in black, grey or white finish and are suitable for mounting on blank plates from selected accessory ranges, namely the Polar and Mode moulded accessory ranges, the Click metal clad range plus the Deco Plus, Deco, Define and Definity decorative metal ranges.

  • Dimensions: 25mm (W) x 50mm (H) x 22mm (D)
  • Rated Voltage: 250V
  • Load Rating: 20A
  • Termination Type: Screw
  • Termination Capacity: 3 x 2.5mm or 2 x 4mm
  • Modular Rocker Switches: Yes
  • Double Pole Switch: Yes
  • Neon: Yes

Part Numbers:

  • Black - MM023BK
  • White - MM023WH

For more information Click Here for more details on the Click New Media range
