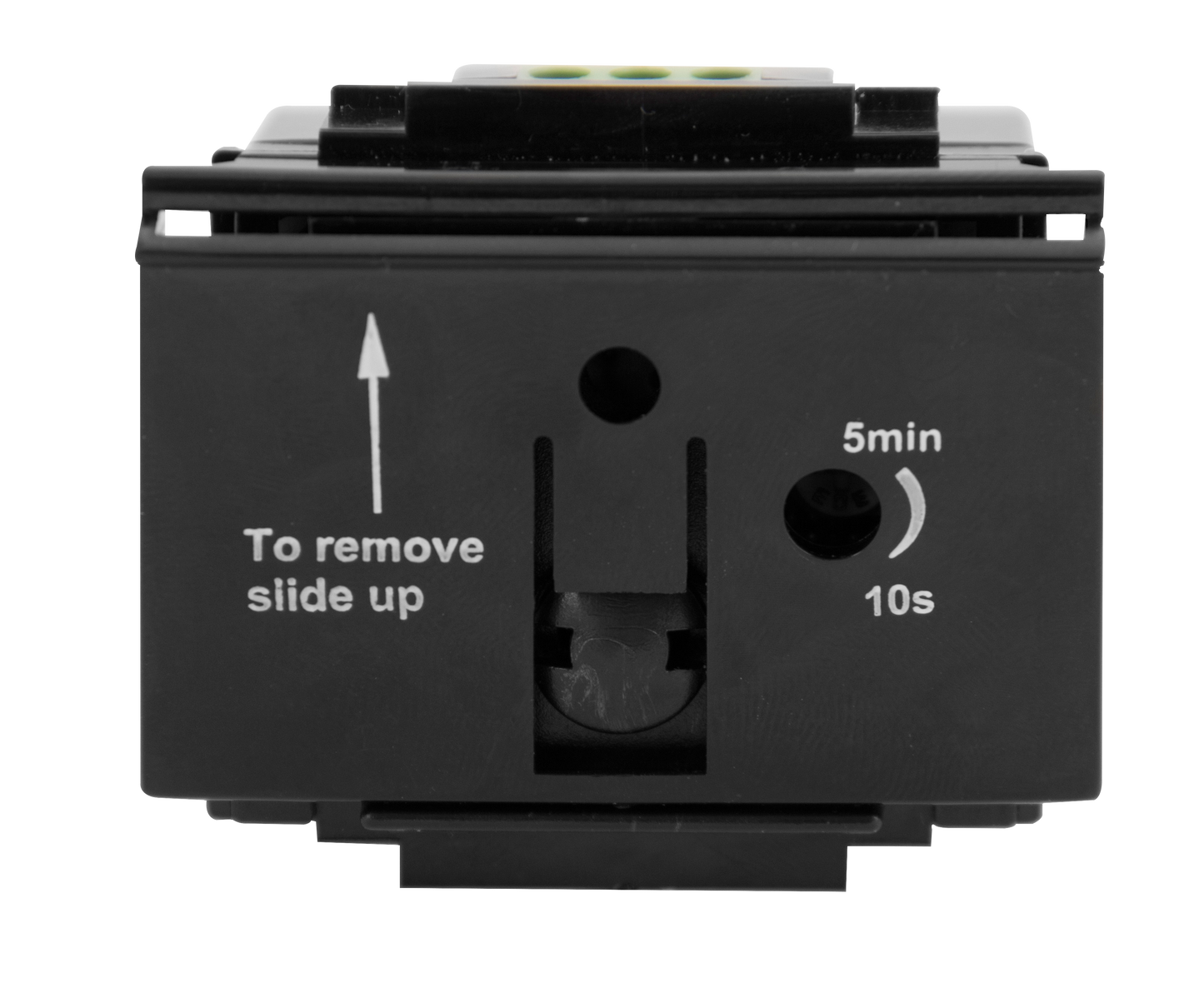

Click New Media 10A 6AX Hotel Key Card Mechanical Timer Switch Module Only MM620BK

The brief given to our designers charged with the task of developing the New Media range was to produce a comprehensive yet flexible and user friendly ‘system’ which enables the installer to easily create topical media and power cabling solutions. All of the modules featured in this brochure are of the standard euro grid configuration based on 1 aperture modules of 25 x 50mm. Mounting plates are available as wall or floor plates and can accommodate 1 - 16 modules according to requirements. Instead of numerous unsightly individual sockets, a single New Media plate can be used at a convenient point to bring together any combination of media modules. The individual modules are available in black, grey or white finish and are suitable for mounting on blank plates from selected accessory ranges, namely the Polar and Mode moulded accessory ranges, the Click metal clad range plus the Deco Plus, Deco, Define and Definity decorative metal ranges.

• Dimensions: 50mm (W) x 50mm (H) x 32.5mm (D)
• Rated Voltage: 230V
• Resistive Load Rating: 10A
• Inductive Load Rating: 6AX
• Termination Type: Screw
• Termination Capacity: 2 x 1.5mm
• Time Delay Settings: 10 Seconds to 5 Minutes (Activates once key is removed)
• 1 Way Switch: Yes
• Single Pole Switch: Yes
• LED Indicator: Yes
• LED Indicator Status: Only illuminates when switch is OFF
• Fascia sold separately: See SP620 Range
