The smooth, modern lines of the CLICK MODE accessory plate will fit easily into traditional and contemporary designs alike. The modular design of CLICK MODE allows designers and installers unprecedented flexibility in creating dedicated wiring solutions to deal specifically with actual wiring needs. In other words, there is now no need to compromise CLICK MODE Accessories provide the complete solution to modern wiring needs.
Dimensions:
1 Gang Plate: 86mm (W) x 86mm (H) x 9.5mm (D)
2 Gang Plate: 146mm (W) x 86mm (H) x 9.5mm (D)
6 & 8 Gang Plate: 146mm (W) x 146mm (H) x 9.5mm (D)
9 & 12 Gang Plate: 146mm (W) x 206mm (H) x 9.5mm (D)
18 Gang Plate: 196mm (W) x 206mm (H) x 9.5mm (D)
24 Gang Plate: 196mm (W) x 266mm (H) x 9.5mm (D)
Yoke Requirement: (sold separately)
1 Gang Plate: None
2 Gang Plate: None
6 & 8 Gang Plate: 2 x GR20400
9 & 12 Gang Plate: 3 x GR20400
18 Gang Plate: 3 x GR20600
24 Gang Plate: 4 x GR20600
Part Numbers:

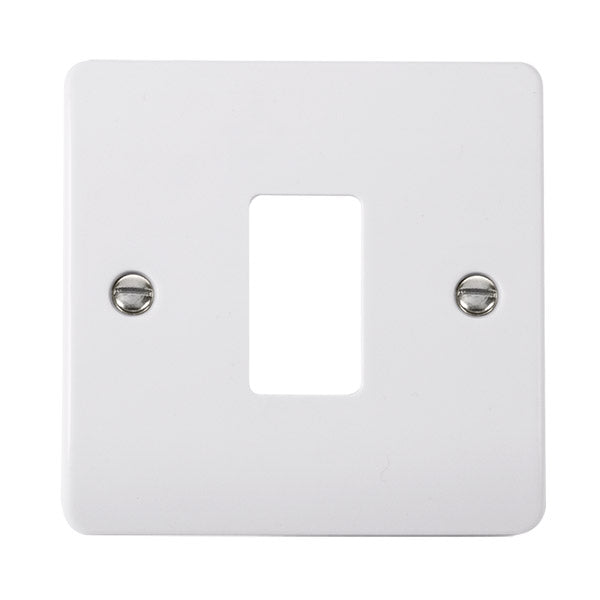

1 Gang Frontplate - CMA20401 (1 Gang Plate)
2 Gang Frontplate - CMA20402 (1 Gang Plate)

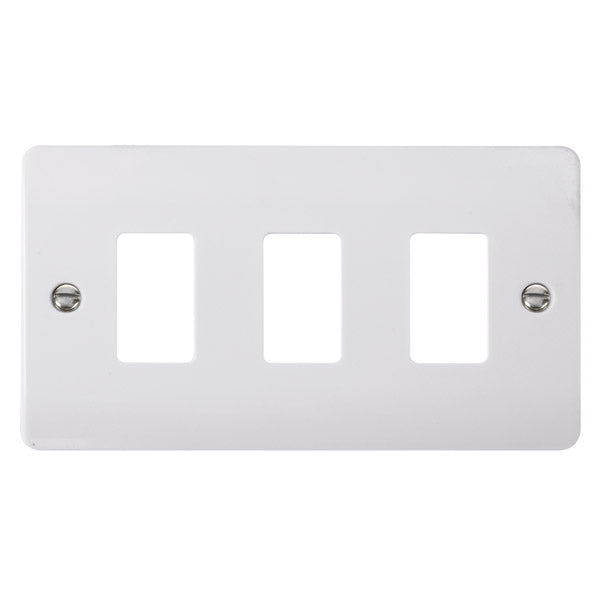

3 Gang Frontplate - CMA20403 (2 Gang Plate)

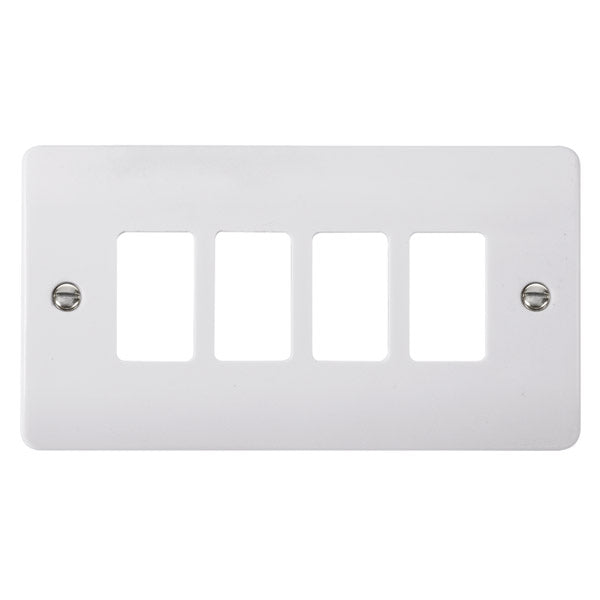

4 Gang Frontplate - CMA20404 (2 Gang Plate)

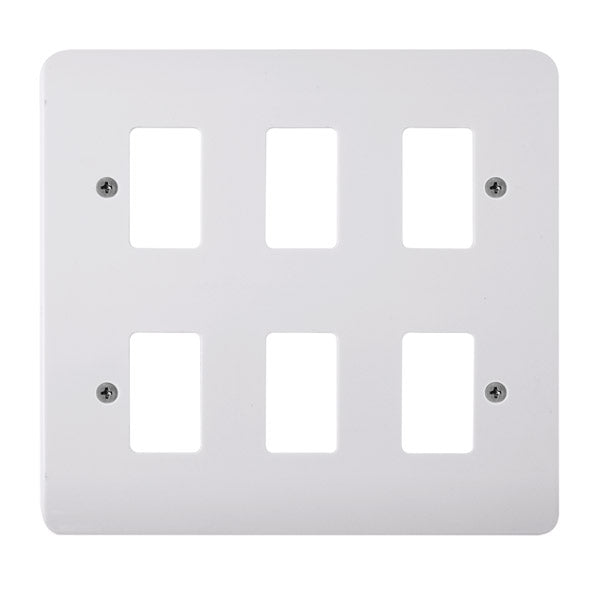

6 Gang Frontplate - CMA20506

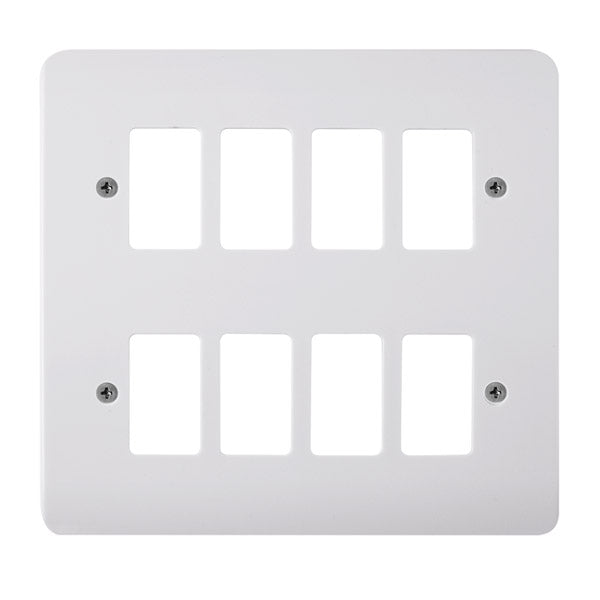

8 Gang Frontplate - CMA20508

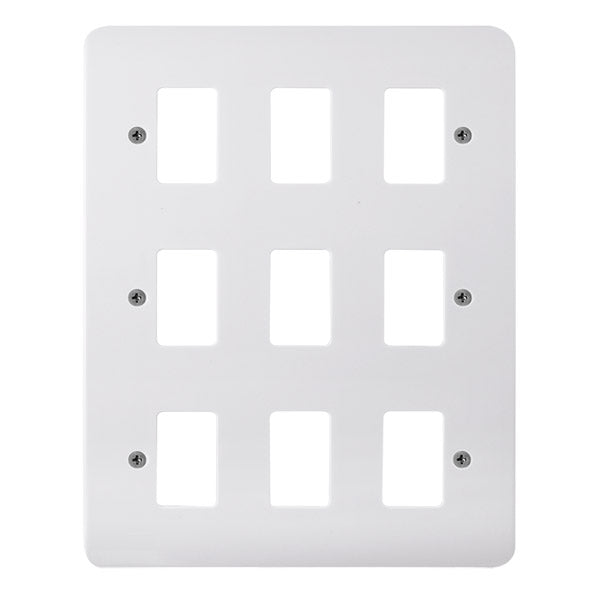

9 Gang Frontplate - CMA20509

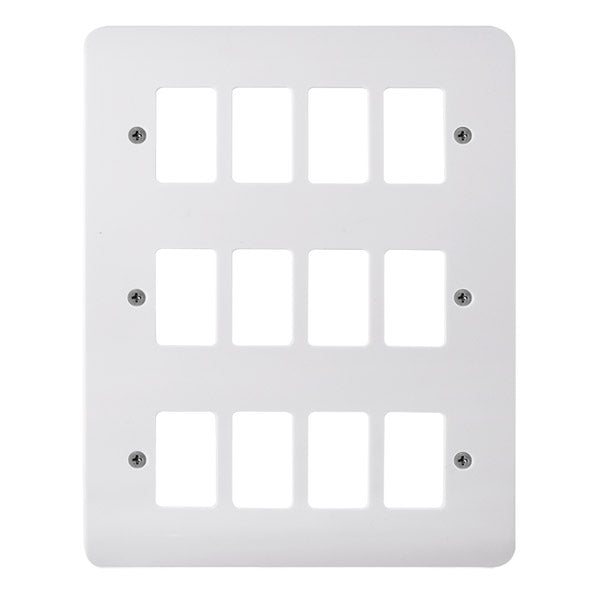

12 Gang Frontplate - CMA20512

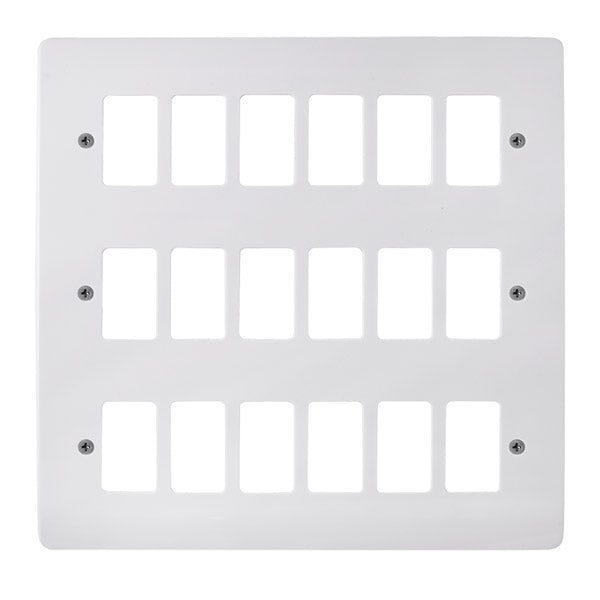

18 Gang Frontplate - CMA20518

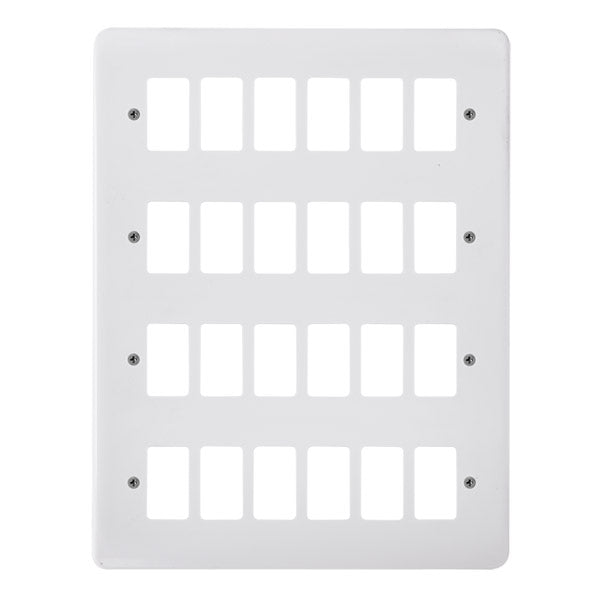

24 Gang Frontplate - CMA20524
For more information Click Here for more details on the Click Grid Pro range
