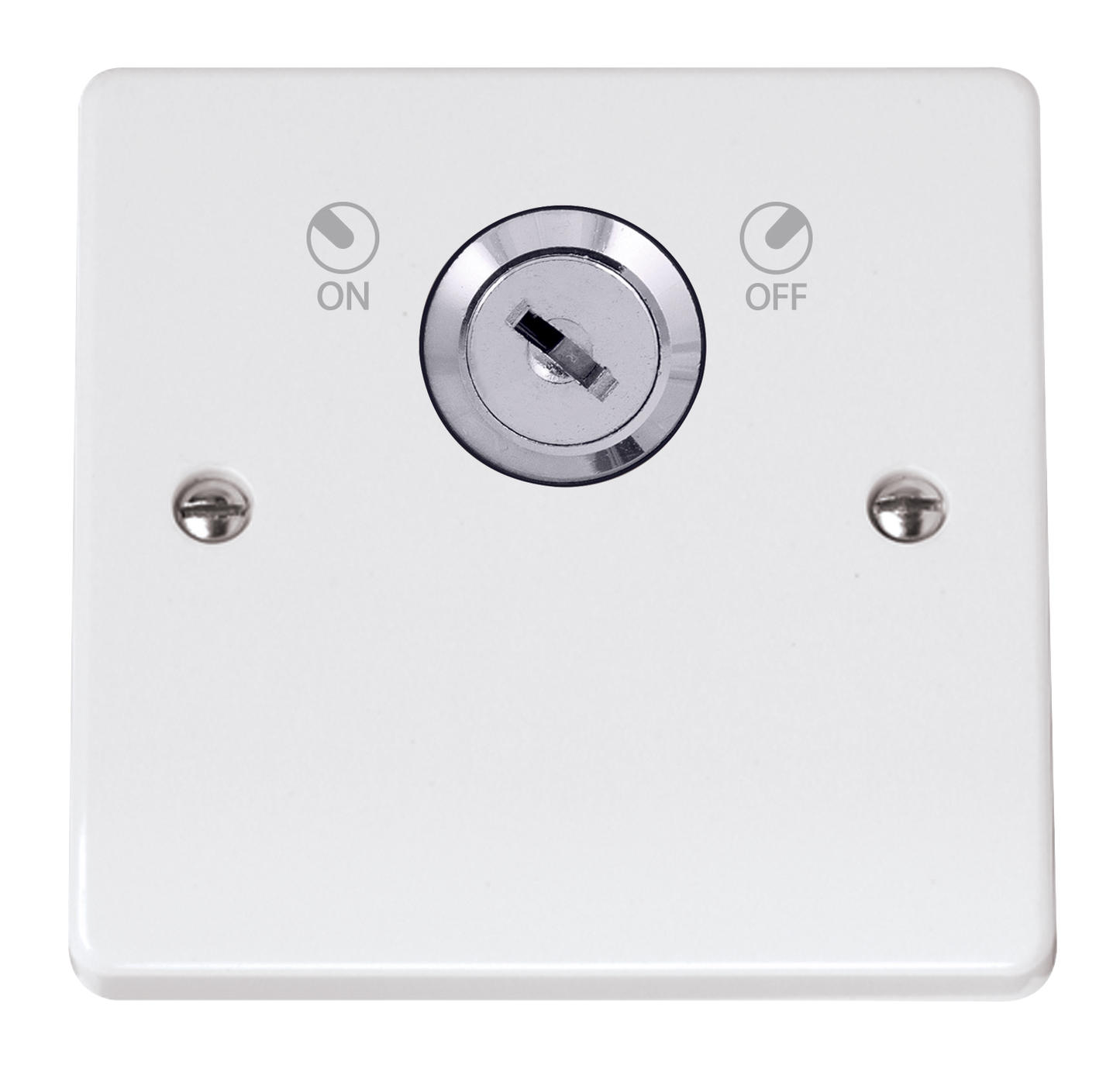

Click Mode 20A DP Key Lockable Switch CMA660

The smooth, modern lines of the CLICK MODE accessory plate will fit easily into traditional and contemporary designs alike. The modular design of CLICK MODE allows designers and installers unprecedented flexibility in creating dedicated wiring solutions to deal specifically with actual wiring needs. In other words, there is now no need to compromise CLICK MODE Accessories provide the complete solution to modern wiring needs.

• Dimensions: 86 (W) x 86 (H) x 11mm (D)
• Back Box Depth: 35mm Minimum
• Style: Rounded Profile
• Max Voltage: 250v
• Load Rating: 20A
• Terminal Size: 3.5mm
• Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm
• Double Pole Switch: Yes

• Twin Earth Terminals: Yes
• Ingress Protection: IP20
