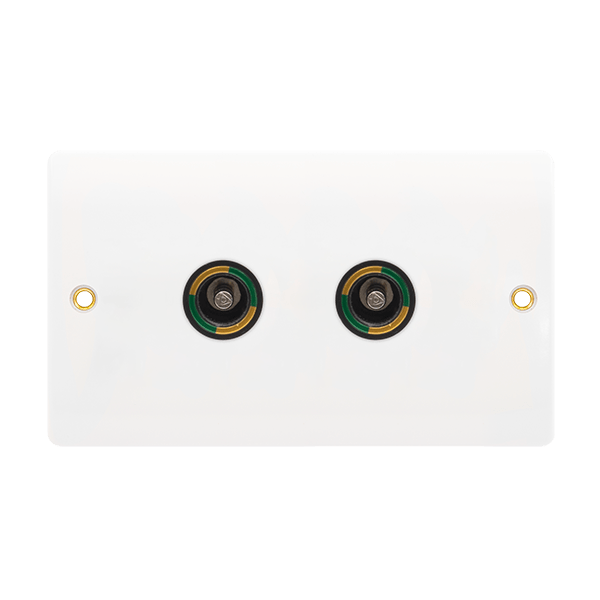

Click Mode 2 Gang Supplementary Equipotential Bonding Connection Point Plate CMAECP2

Click Mode 2 Gang Supplementary Equipotential Bonding Connection Point Plate CMAECP2

CMAECP2

£48.25 GBP
£48.25 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT
  • Plate Dimensions (mm) 146 (W) x 86 (H) x 9.5 (D)
  • Plate Fixing Centres - Horizontal (mm) 120.6
  • Style Rounded Profile
  • Colour Polar White
  • Materials Front Plate: Urea Socket Housing: Polycarbonate
  • Colour Ring: Anodized Aluminium Nuts & Washers: Nickel Plated Brass
  • Anti Microbial Certified Yes
  • Incoming Terminal Diameter M6 (x2)
  • Termination Type Threaded With Nuts & Washers
  • Maximum Matings >5000
  • Contact Diameter (mm) 6
  • -Vtest (Contact-Shell) (V) 2400
  • Vtest (Contact-Shell) (V) 2000
  • Product Marking Green & Yellow
  • Minimum Back Box Depth (mm) 35
  • Ingress Protection IP20
