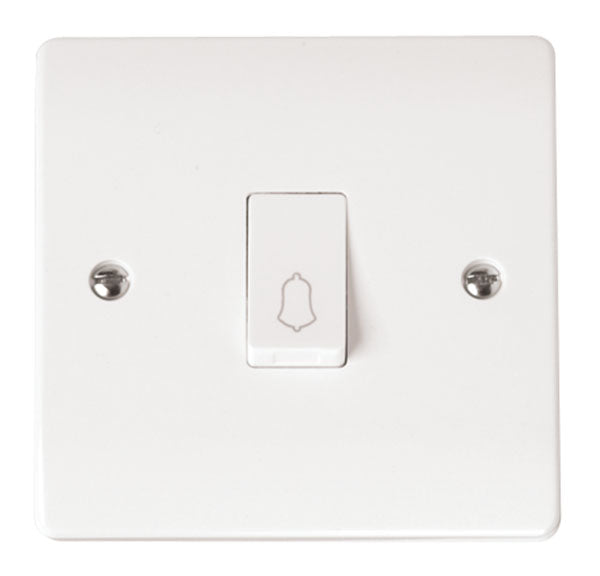

Click Mode 10AX 1 Gang 1 Way Retractive Bell Switch CMA027

The smooth, modern lines of the CLICK MODE accessory plate will fit easily into traditional and contemporary designs alike. The modular design of CLICK MODE allows designers and installers unprecedented flexibility in creating dedicated wiring solutions to deal specifically with actual wiring needs. In other words, there is now no need to compromise CLICK MODE Accessories provide the complete solution to modern wiring needs.

Compatible With Minigrid Modules

All CLICK Mode switch plates are modular as standard, allowing you to create virtually any switch plate you require

• Dimensions: 86 (W) x 86 (H) x 9.5mm (D)
• Back Box Depth: 16mm Minimum
• Style: Rounded Profile
• Max Voltage: 250v
• Load Rating: 10AX - suitable for Inductive Loads
• Terminal Size: 3.5mm
• Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm
• Modular Rocker Switch: Yes

• Retractive Contact Options: Press to Make
• Ingress Protection: IP20
