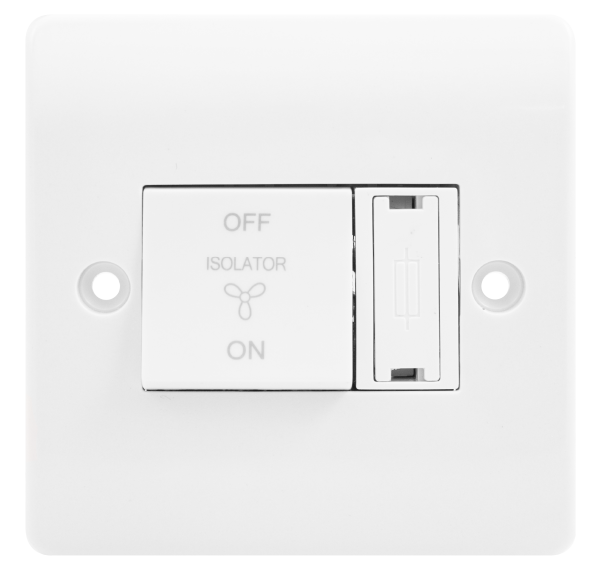

Click Mode 10A 3 Pole Fan Isolator & 3A Fused Connection Module CMA3020

The smooth, modern lines of the CLICK MODE accessory plate will fit easily into traditional and contemporary designs alike. The modular design of CLICK MODE allows designers and installers unprecedented flexibility in creating dedicated wiring solutions to deal specifically with actual wiring needs. In other words, there is now no need to compromise CLICK MODE Accessories provide the complete solution to modern wiring needs.

• Dimensions: 86 (W) x 86 (H) x 9.5mm (D)
• Back Box Depth: 25mm Minimum
• Style: Rounded Profile
• Max Voltage: 250v
• Load Rating: 10AX
• Fused Fitted: 3A (BS 1362)
• Terminal Size: 3.5mm
• Terminal Capacity: 4 x 2.5mm or 2 x 4mm
• Triple Pole Switch: Yes
• Ingress Protection: IP20

For more information Click Here for more details on the Click Mode Range
