Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 25mm (W) x 53mm (H) x 20mm (D)
Resistive Load Rating: 20A
Rated Voltage: 250V
Terminal Size 3.5mm
Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm
Modular Rocker Switch: Yes
Flex Outlet Available: Yes
Part Numbers:

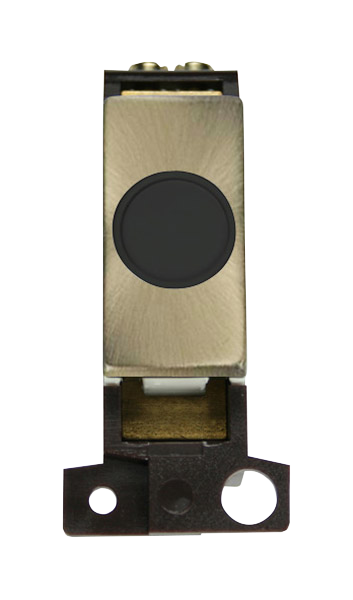

Antique Brass - Black Insert - MD017BKAB

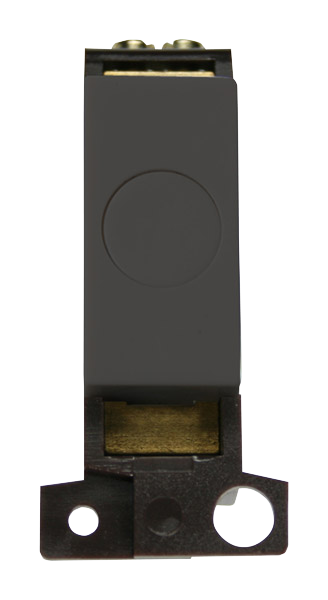

Black - Black Insert - MD017BK

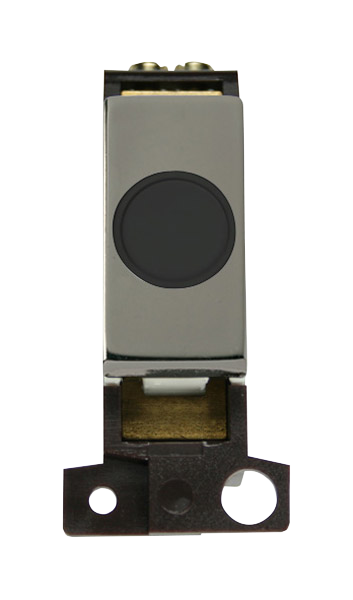

Black Nickel - Black Insert - MD017BKBN

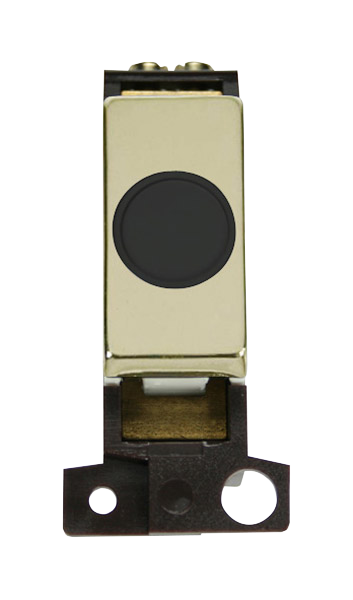

Brass - Black Insert - MD017BKBR

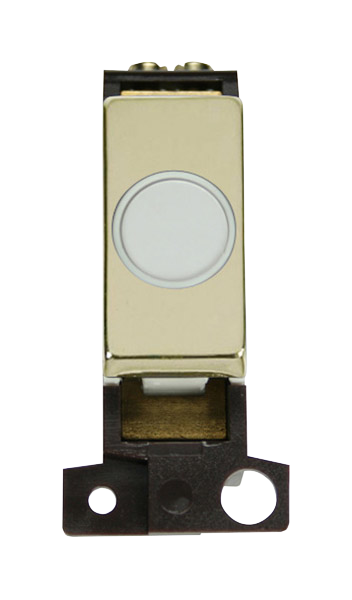

Brass - White Insert - MD017WHBR

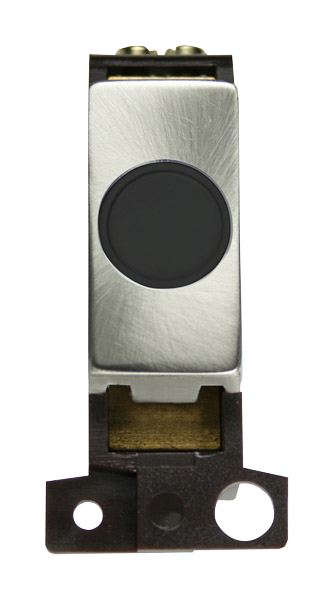

Brushed Stainless - Black Insert - MD017BKBS
Brushed Stainless - Grey Insert - MD017GYBS
Brushed Stainless - White Insert - MD017WHBS

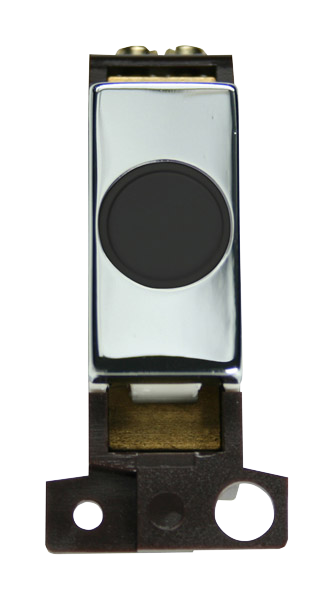

Chrome - Black Insert - MD017BKCH

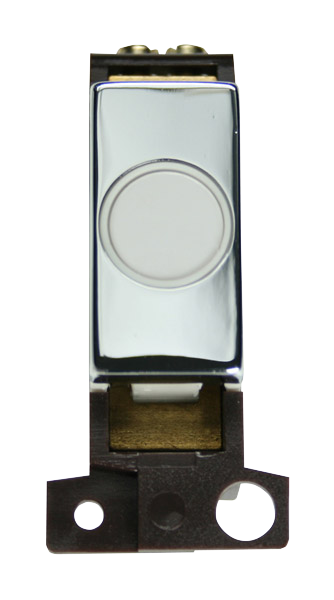

Chrome - White Insert - MD017WHCH

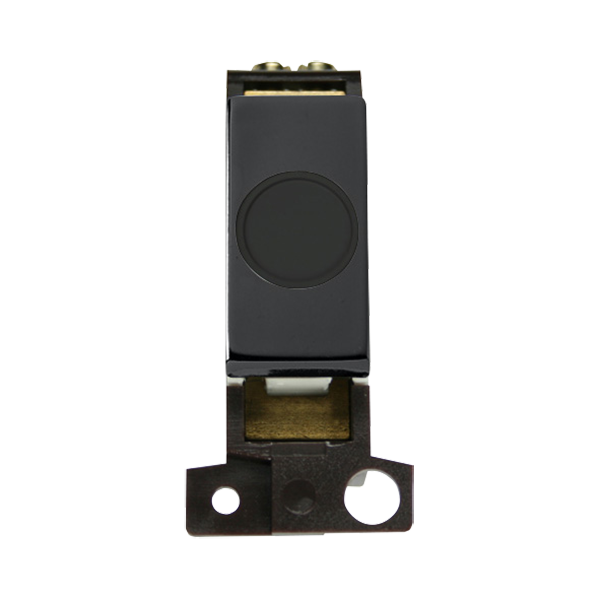

Matt Black - Black Insert - MD017BKMB
Pearl Nickel - Black Insert - MD017BKPN

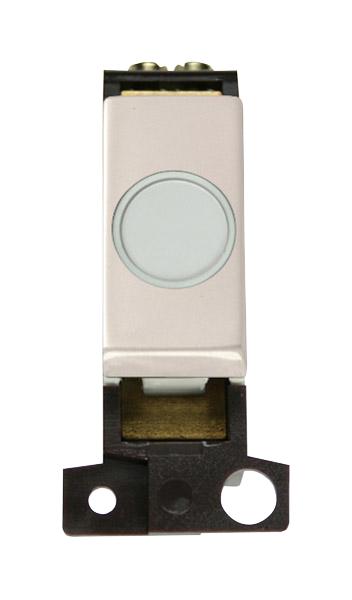

Pearl Nickel - White Insert - MD017WHPN

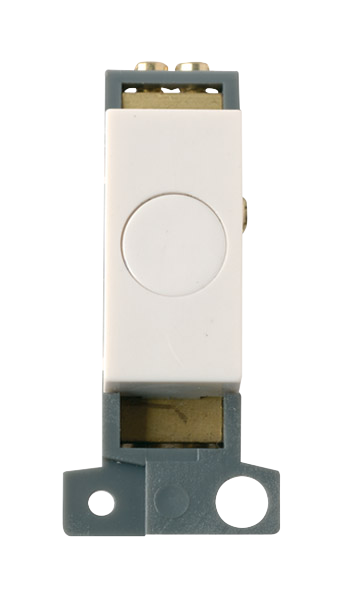

Polar White - White Insert - MD017PW (for Polar & Mode Plates)
Satin Brass - Black Insert - MD017BKSB

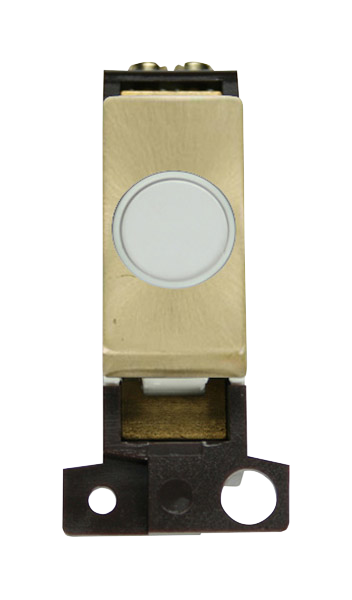

Satin Brass - White Insert - MD017WHSB

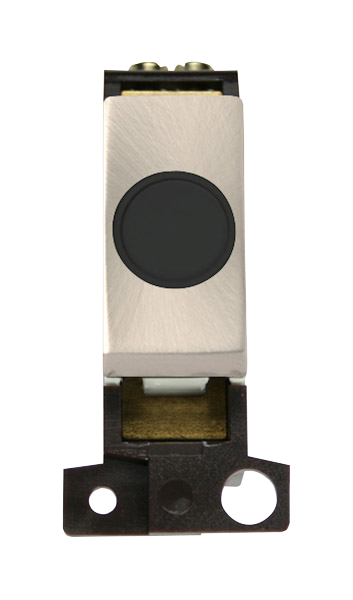

Satin Chrome - Black Insert - MD017BKSC

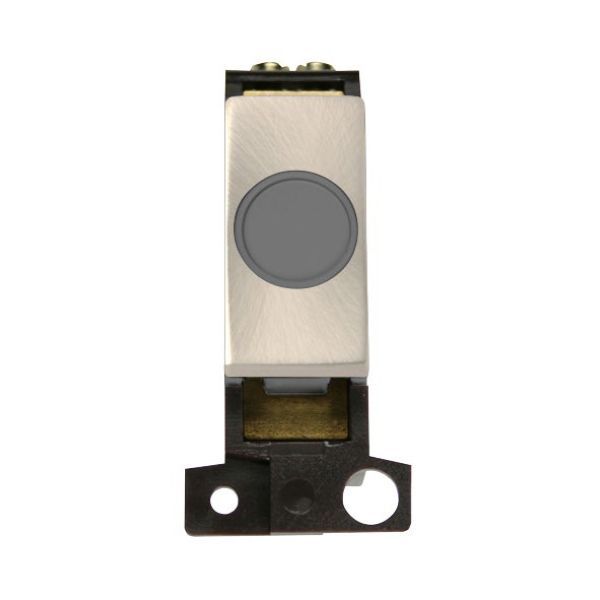

Satin Chrome - Grey Insert - MD017GYSC

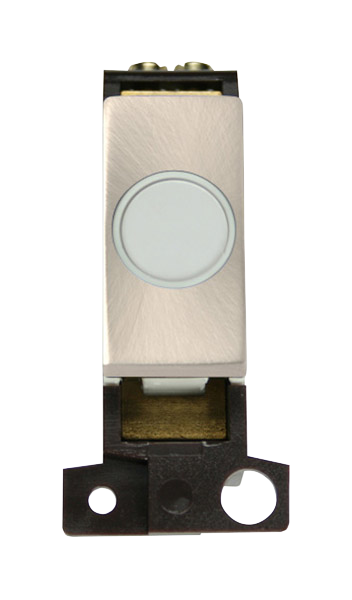

Satin Chrome - White Insert - MD017WHSC

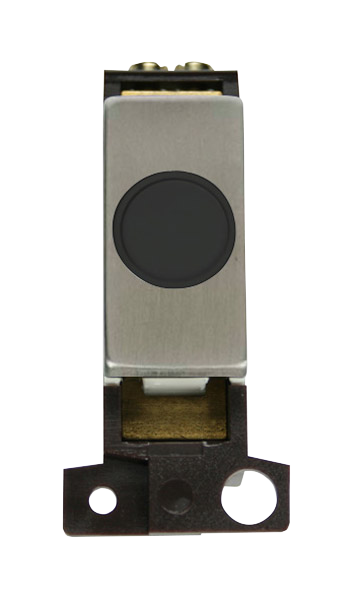

Stainless Steel - Black Insert - MD017BKSS

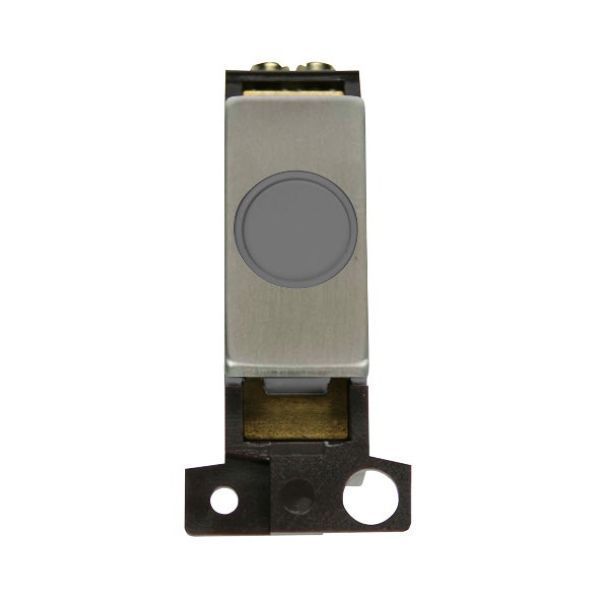

Stainless Steel - Grey Insert - MD017GYSS

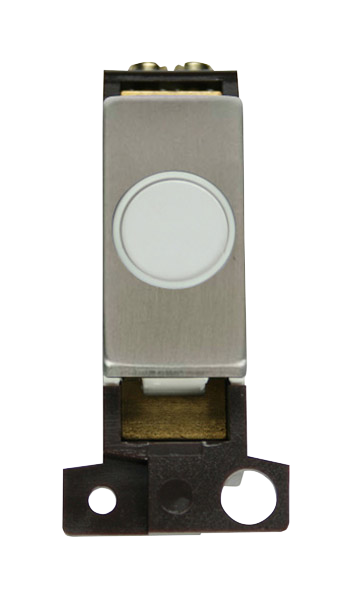

Stainless Steel - White Insert - MD017WHSS
White - White Insert- MD017WH (for Metal Clad Plates)
For more information Click Here for more details on the Click MiniGrid range
