Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 41mm (W) x 52.5mm (H) x 22mm (D)
Rated Voltage: 250V
Load Rating: 20A
Terminal Size 4.4mm
Terminal Capacity: 3 x 2.5mm or 2 x 4mm
Modular Rocker Switch: Yes
Double Pole Switch: Yes
Etched Legend: TUMBLE DRYER
Part Numbers:
Antique Brass - MD022AB-TD

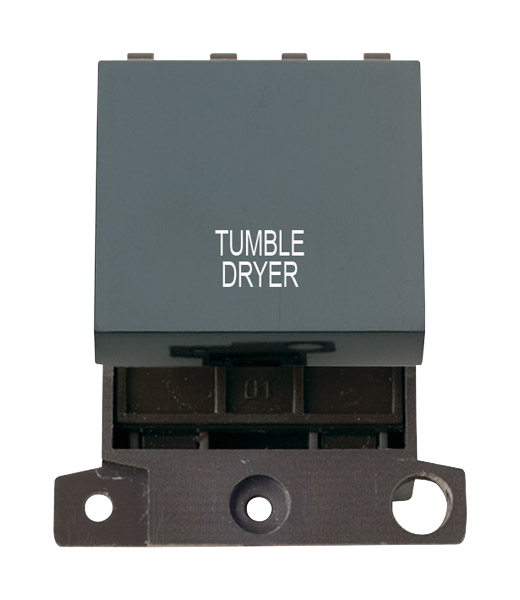

Black: - MD022BK-TD

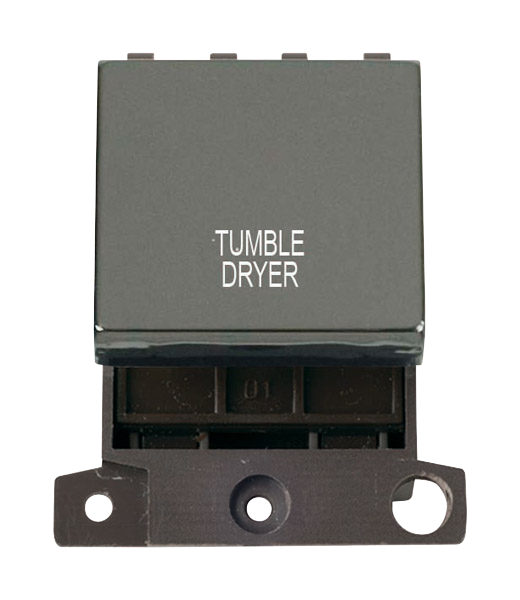

Black Nickel - MD022BN-TD

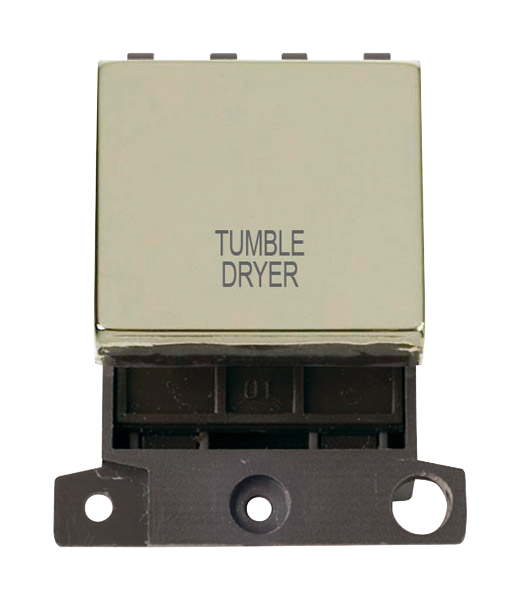

Brass - MD022BR-TD

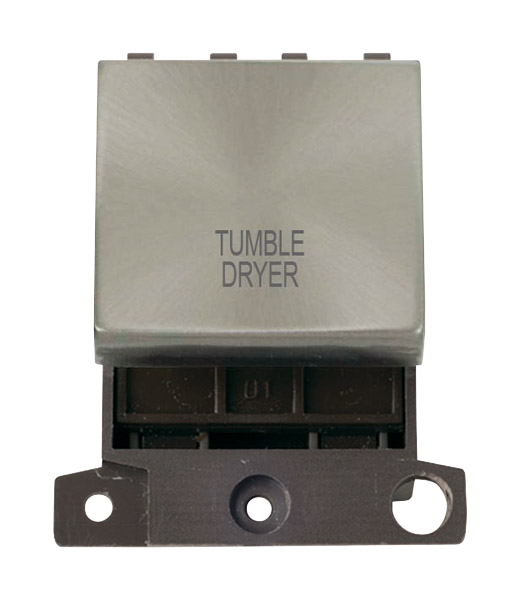

Brushed Stainless Steel - MD022BS-TD
Chrome - MD022CH-TD

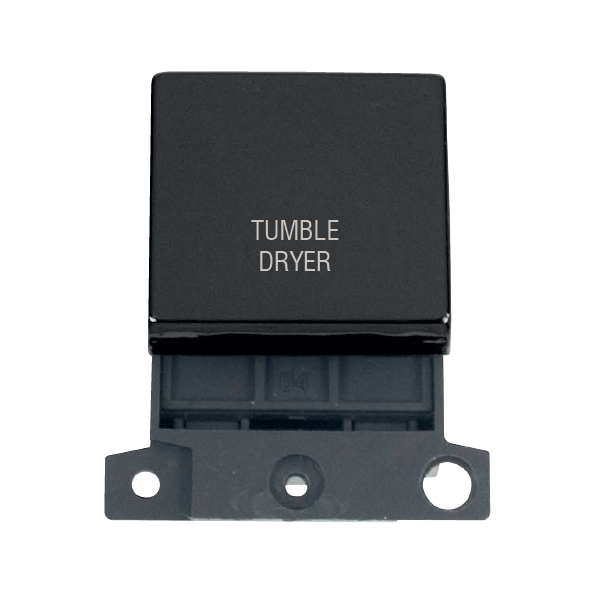

Matt Black - MD022MB-TD

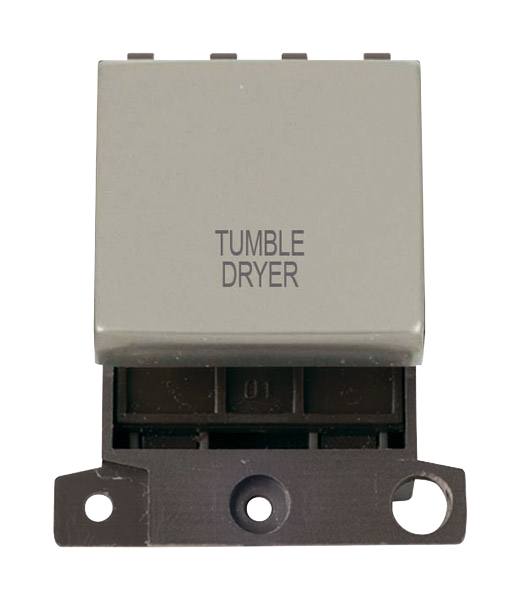

Pearl Nickel - MD022PN-TD
Polar White - MD022PW-TD (for Polar & Mode Plates)

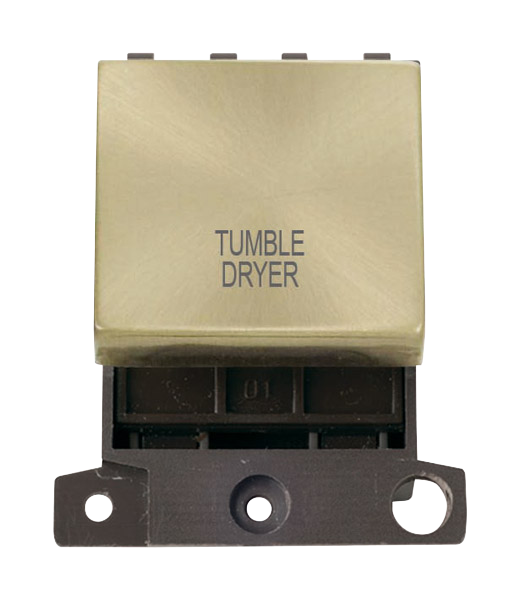

Satin Brass - MD022SB-TD

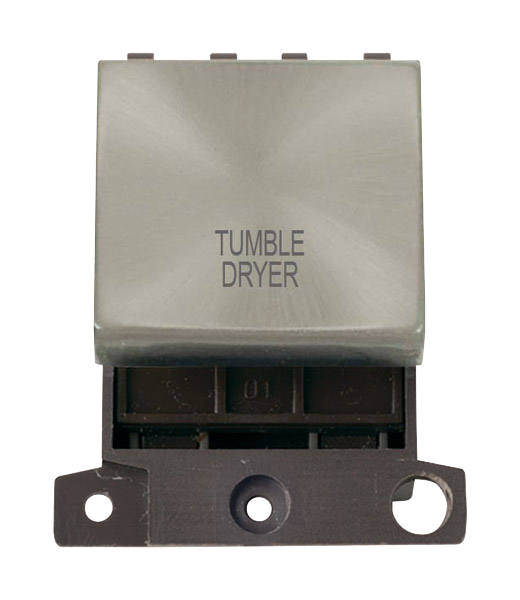

Satin Chrome - MD022SC-TD
Stainless Steel - MD022SS-TD

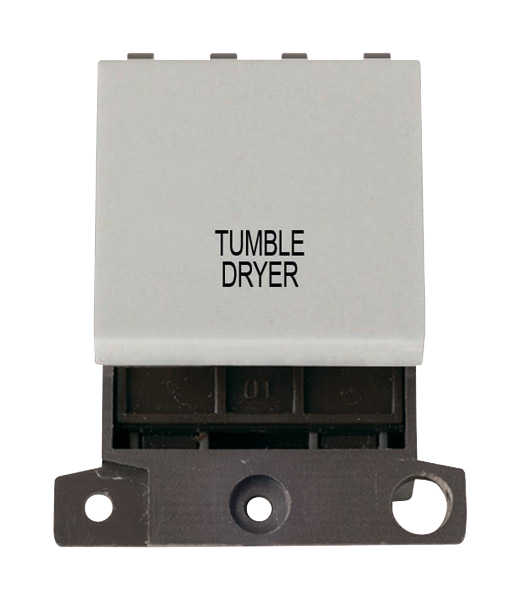

White - MD022WH-TD (for Metal Clad Plates)
For more information Click Here for more details on the Click MiniGrid range
