Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 41mm (W) x 52.5mm (H) x 22mm (D)
Rated Voltage: 250V
Load Rating: 20A
Terminal Size 4.4mm
Terminal Capacity: 3 x 2.5mm or 2 x 4mm
Modular Rocker Switch: Yes
Double Pole Switch: Yes
Neon: Yes
Etched Legend: COOKER HOOD
Part Numbers:

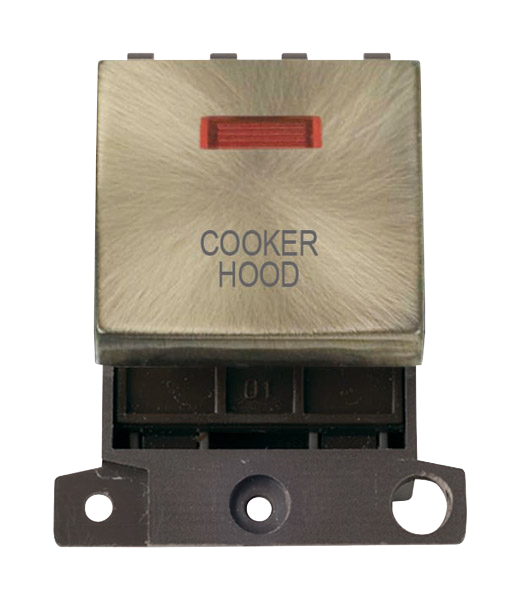

Antique Brass - MD023AB-CH

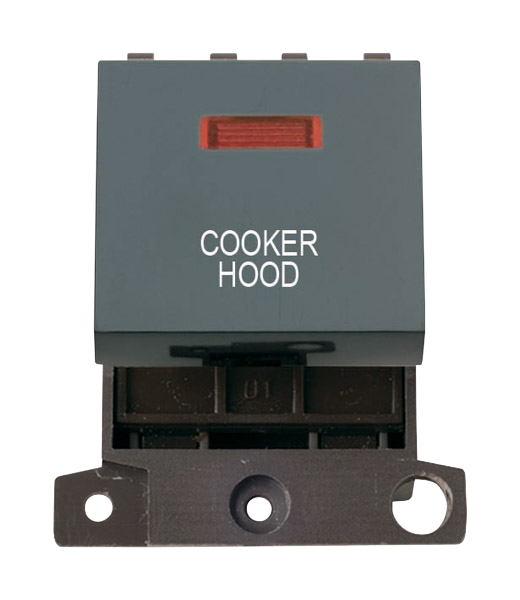

Black: - MD023BK-CH

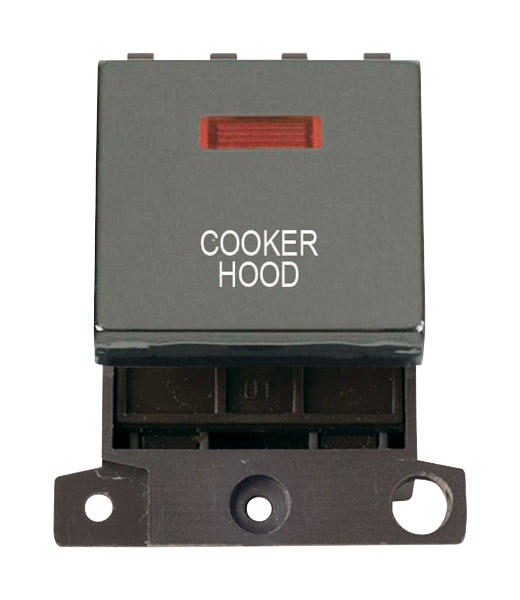

Black Nickel - MD023BN-CH

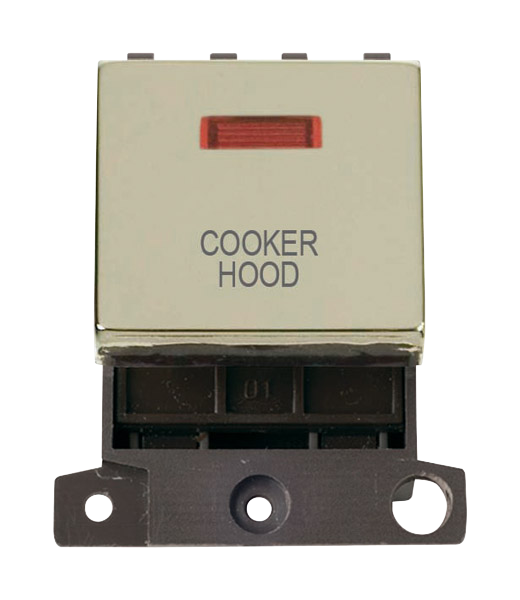

Brass - MD023BR-CH

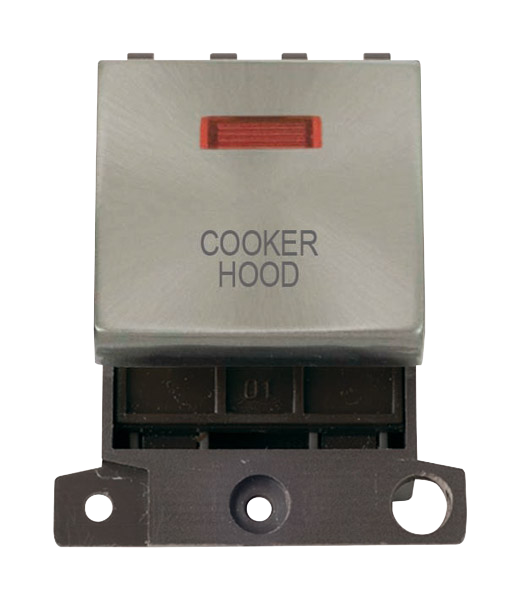

Brushed Stainless Steel - MD023BS-CH
Chrome - MD023CH-CH

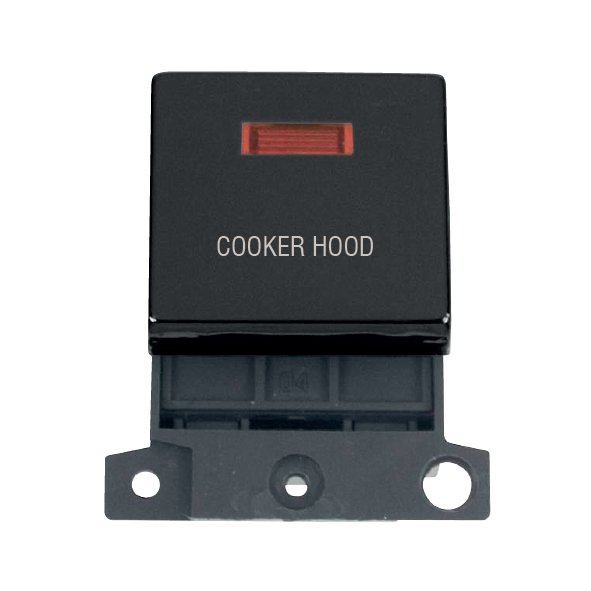

Matt Black - MD023MB-CH

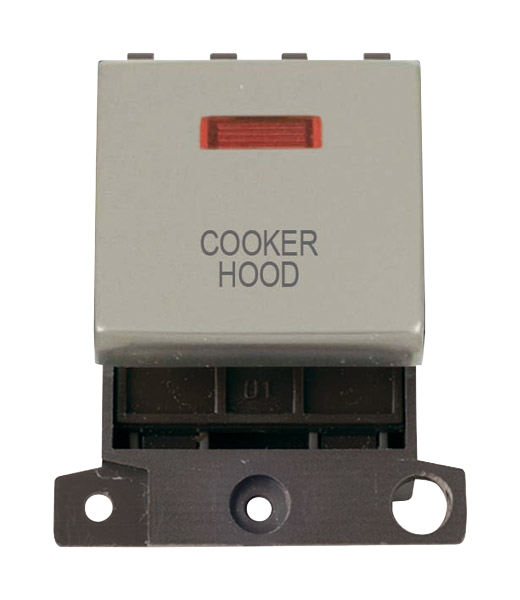

Pearl Nickel - MD023PN-CH

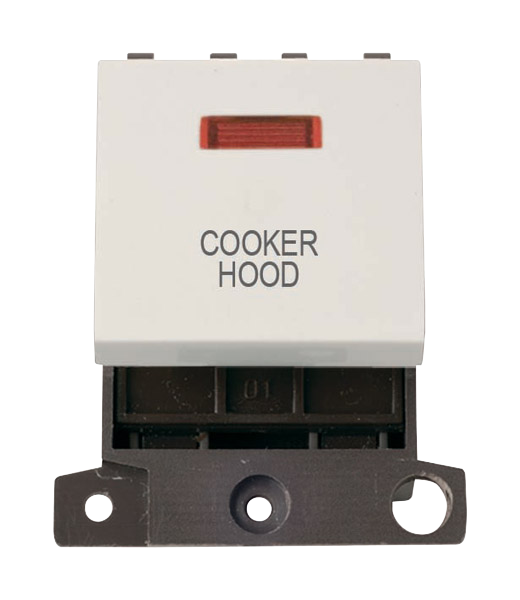

Polar White - MD023PW-CH (for Polar & Mode Plates)

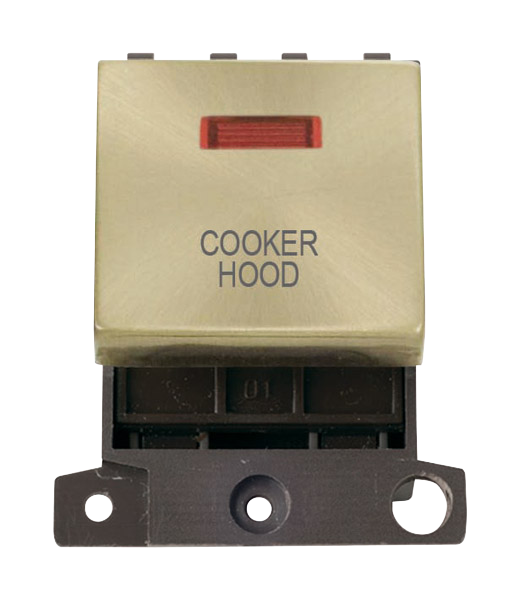

Satin Brass - MD023SB-CH

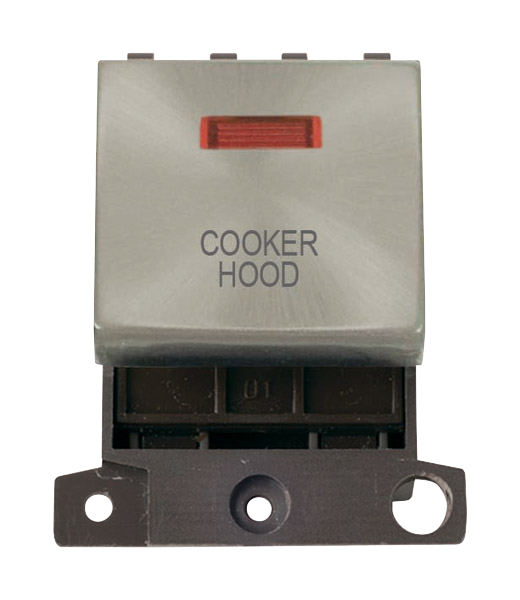

Satin Chrome - MD023SC-CH
Stainless Steel - MD023SS-CH

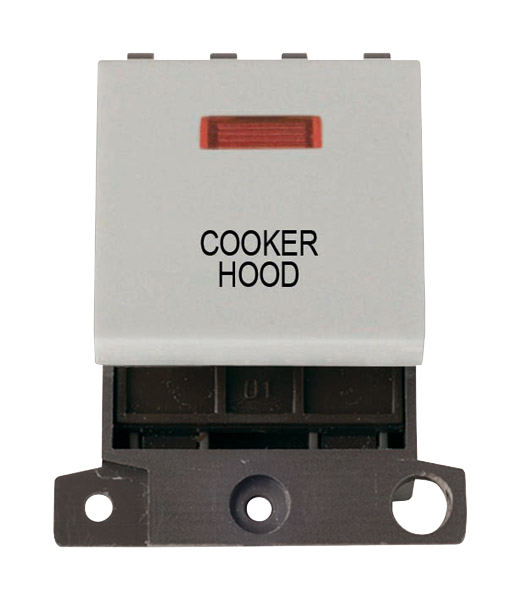

White - MD023WH-CH (for Metal Clad Plates)
For more information Click Here for more details on the Click MiniGrid range
