Click MiniGrid 20A 2 Way Switch Module (Twin Width) MD024

Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.

• Dimensions - 41mm (W) x 52.5mm (H) x 22mm (D)
• Rated Voltage: 250V
• Load Rating: 20A
• Terminal Size 4.4mm
• Terminal Capacity: 3 x 2.5mm or 2 x 4mm
• Modular Rocker Switch: Yes
• 2 Way Switch: Yes

Part Numbers:

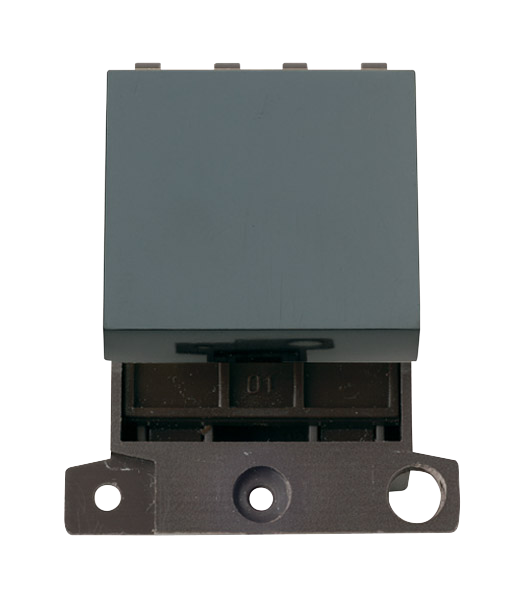

• Black: - MD024BK

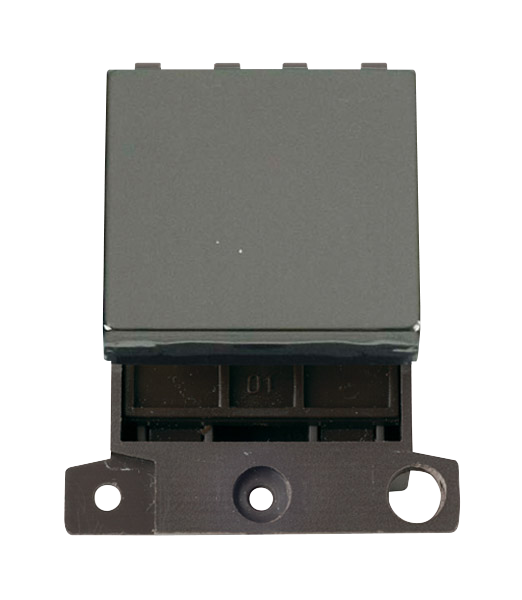

• Black Nickel - MD024BN

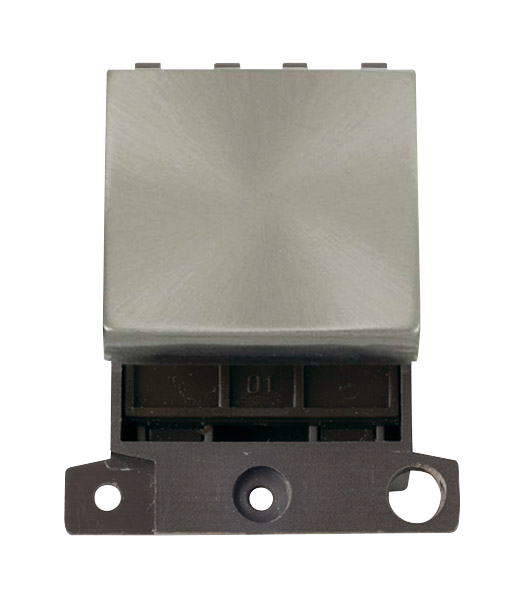

• Brushed Stainless Steel - MD024BS

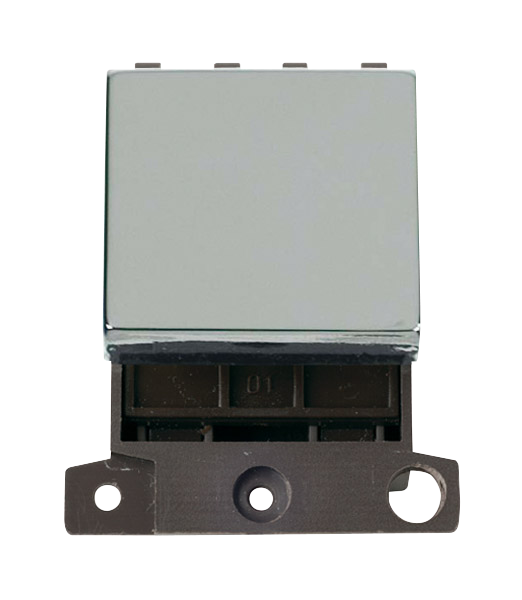

• Chrome - MD024CH
• Matt Black - MD024MB

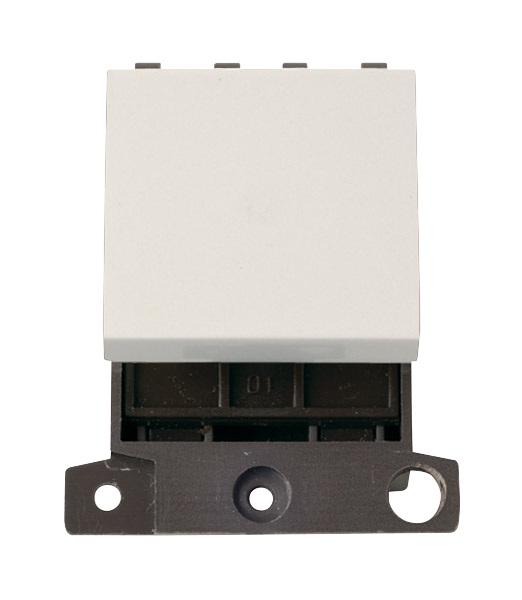

• Polar White - MD024PW (for Polar & Mode Plates)

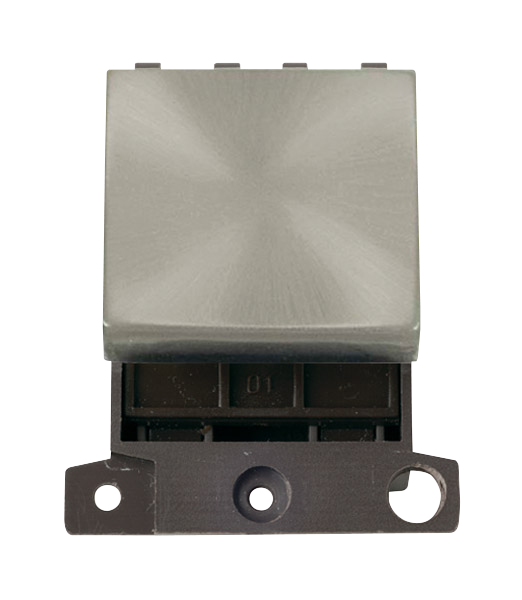

• Satin Chrome - MD024SC

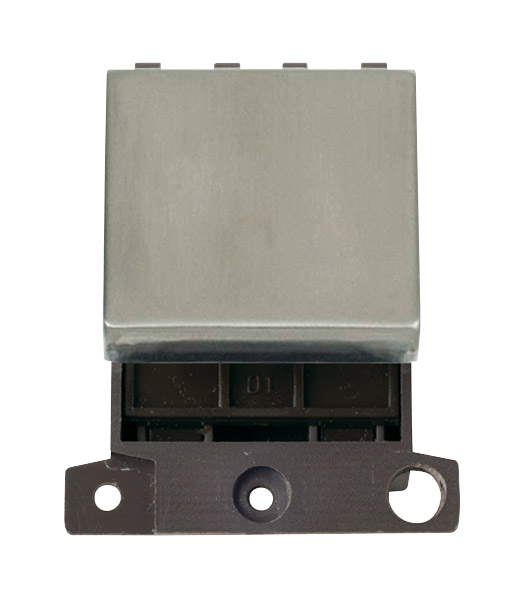

• Stainless Steel - MD024SS

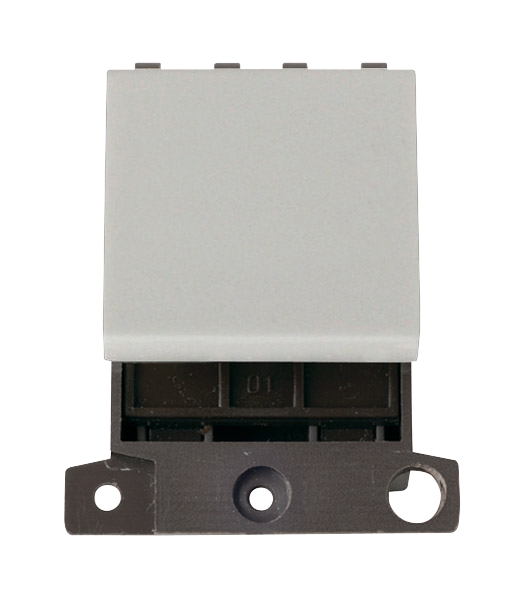

• White - MD024WH (for Metal Clad Plates)

For more information Click Here for more details on the Click MiniGrid range
