Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 25mm (W) x 53mm (H) x 20mm (D)
Rated Voltage: 250V
Load Rating: 10AX Suitable for Inductive Loads
Terminal Size 3.5mm
Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm

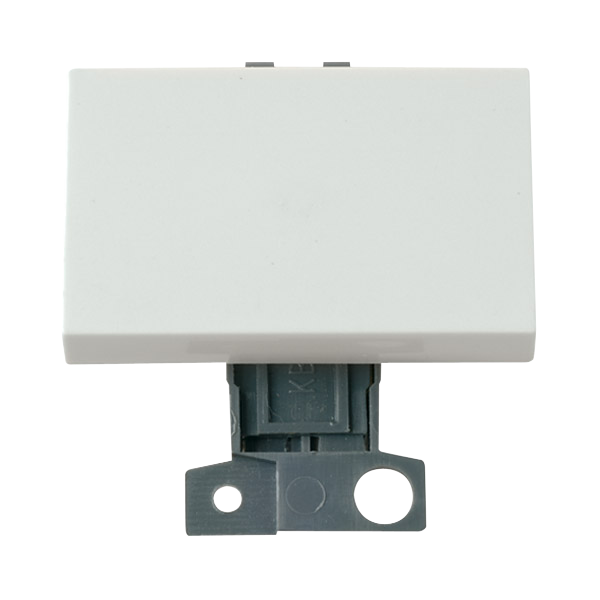

Modular Rocker Switch: Yes
2 Way Switch: Yes
Part Numbers:

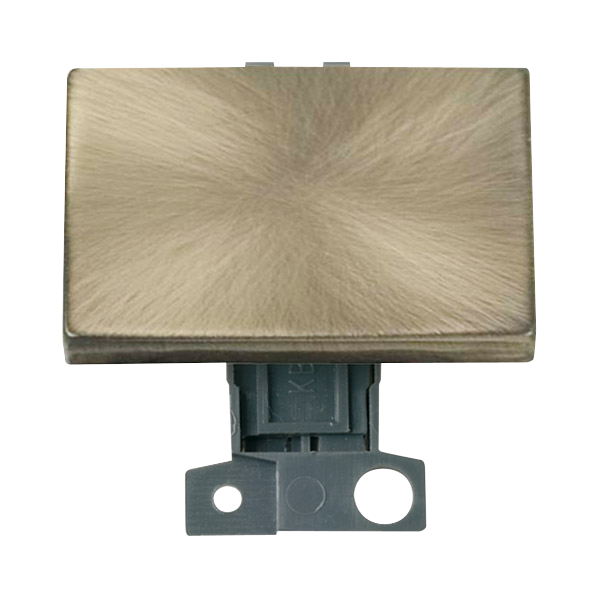

Antique Brass - MD009AB
Black: - MD009BK

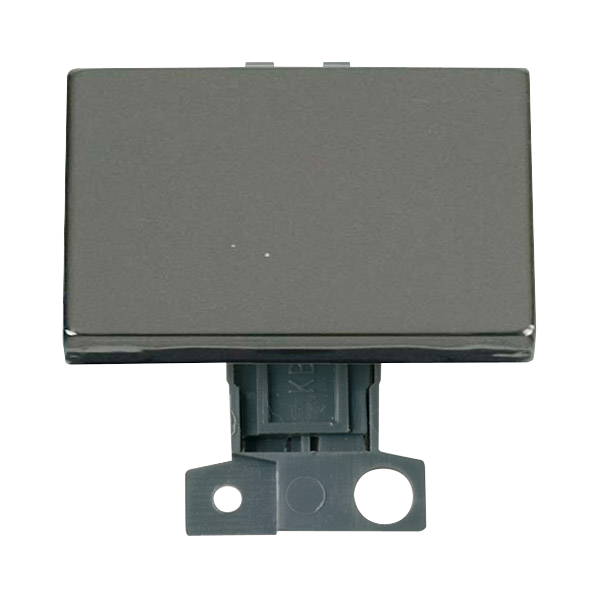

Black Nickel - MD009BN

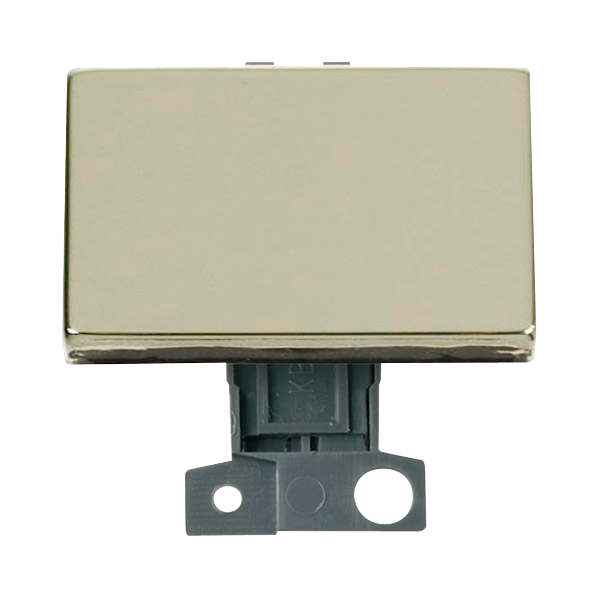

Brass - MD009BR

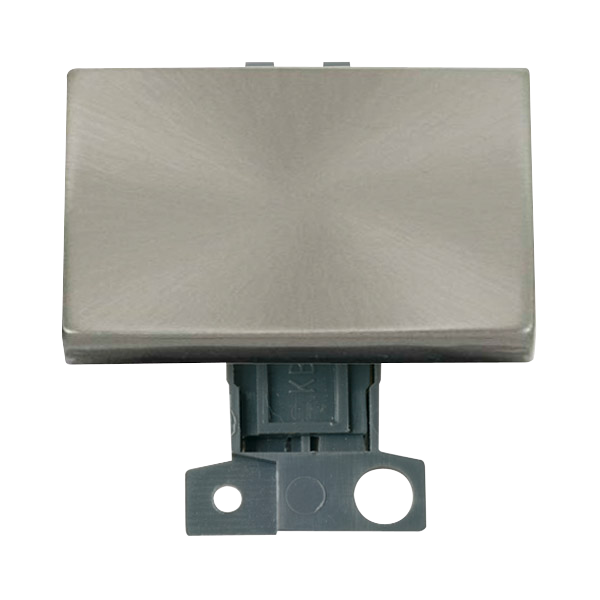

Brushed Stainless Steel - MD009BS

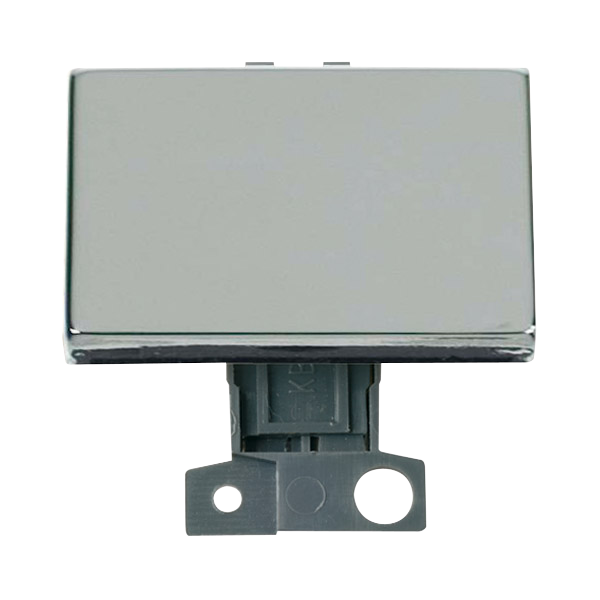

Chrome - MD009CH

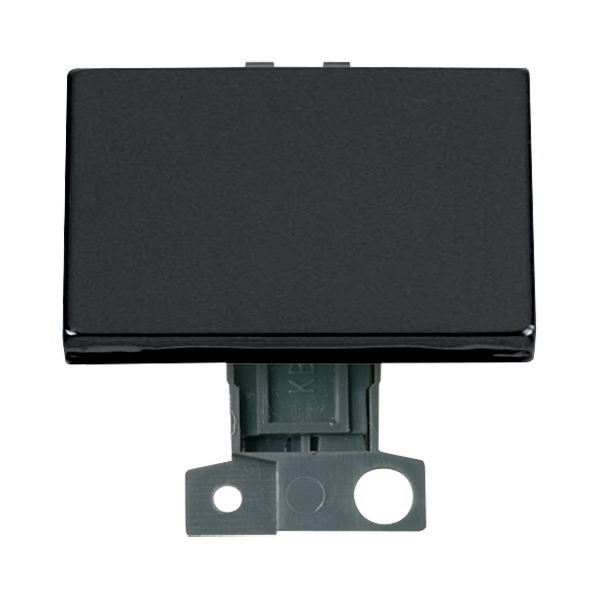

Matt Black - MD009MB

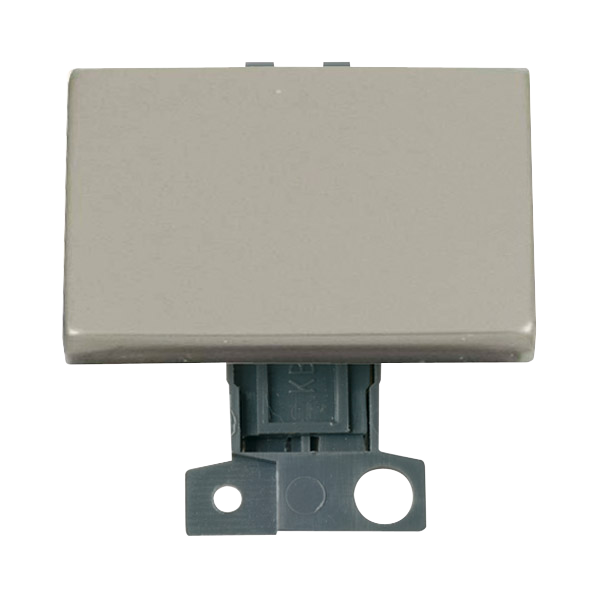

Pearl Nickel - MD009PN
Polar White - MD009PW (for Polar & Mode Plates)
Satin Brass - MD009SB

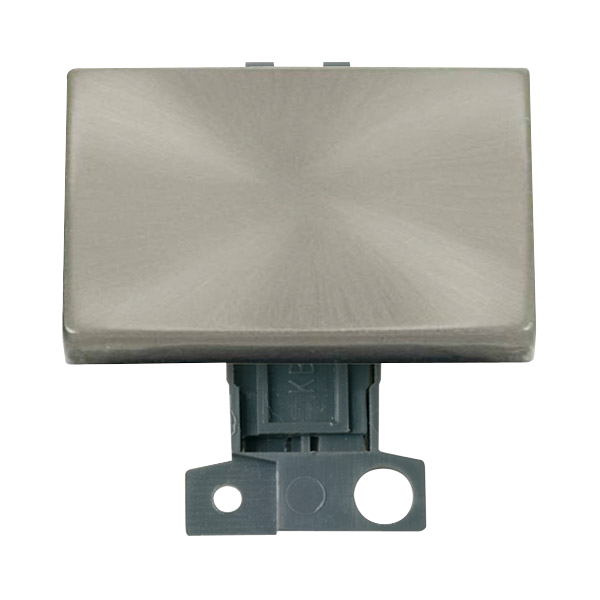

Satin Chrome - MD009SC

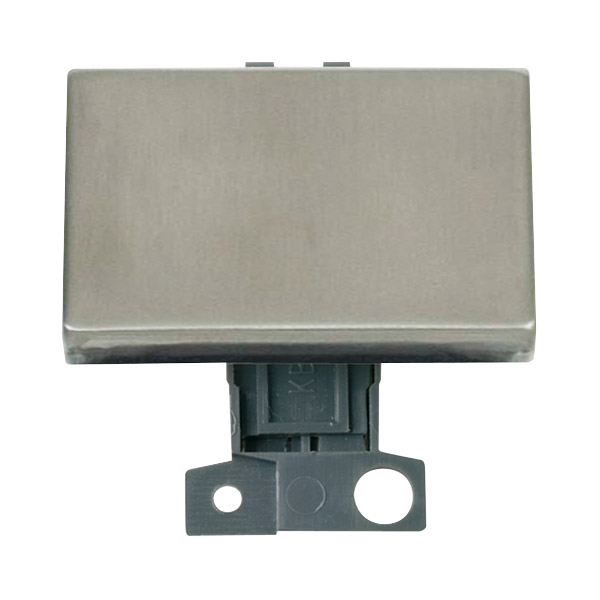

Stainless Steel - MD009SS
White - MD009WH (for Metal Clad Plates)
