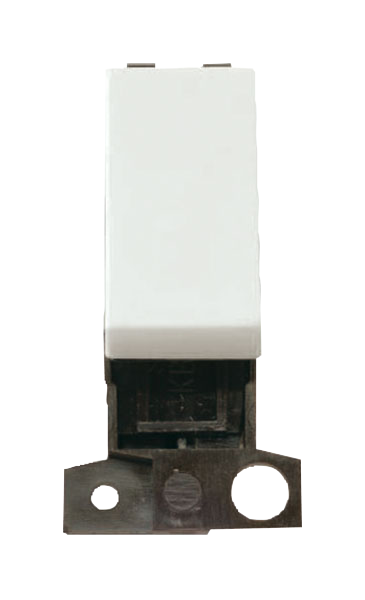

Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 25mm (W) x 53mm (H) x 20mm (D)
Rated Voltage: 250V
Load Rating: 10AX Suitable for Inductive Loads
Terminal Size 3.5mm
Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm
Modular Rocker Switch: Yes
2 Way Switch: Yes
Part Numbers:
Antique Brass - MD002AB
Black: - MD002BK
Black Nickel - MD002BN
Brass - MD002BR
Brushed Stainless Steel - MD002BS
Chrome - MD002CH
Matt Black - MD002MB
Pearl Nickel - MD002PN
Polar White - MD002PW (for Polar & Mode Plates)
Red - MD002RD
Satin Brass - MD002SB
Satin Chrome - MD002SC
Stainless Steel - MD002SS
White - MD002WH (for Metal Clad Plates)
For more information Click Here for more details on the Click MiniGrid range
