Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 25mm (W) x 53mm (H) x 20mm (D)
Rated Voltage: 250V
Resistive Load: 13A
Load Rating: 10AX Suitable for Inductive Loads
Terminal Size 3.5mm
Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm
Modular Rocker Switch: Yes
Double Pole Switch: Yes

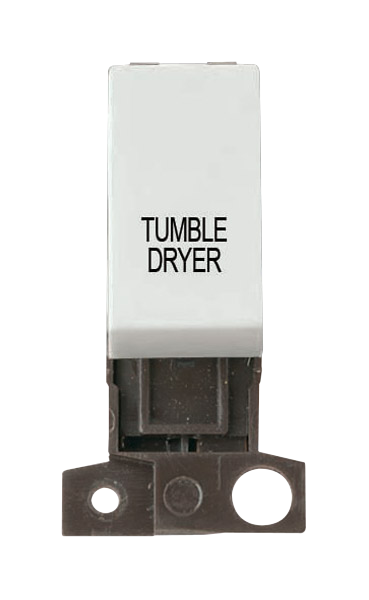

Etched Legend: TUMBLE DRYER
Part Numbers:
Antique Brass - MD018AB-TD
Black: - MD018BK-TD
Black Nickel - MD018BN-TD
Brass - MD018BR-TD
Brushed Stainless Steel - MD018BS-TD
Chrome - MD018CH-TD
Matt Black - MD018MB-TD
Pearl Nickel - MD018PN-TD
Polar White - MD018PW-TD (for Polar & Mode Plates)
Satin Brass - MD018SB-TD
Satin Chrome - MD018SC-TD
Stainless Steel - MD018SS-TD
White - MD018WH-TD (for Metal Clad Plates)
For more information Click Here for more details on the Click MiniGrid range
