Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 25mm (W) x 53mm (H) x 20mm (D)
Rated Voltage: 250V
Load Rating: 10AX Suitable for Inductive Loads
Terminal Size 3.5mm
Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm
Modular Rocker Switch: Yes
Double Pole Switch: Yes
Part Numbers:
Antique Brass - MD046AB
Black: - MD046BK
Black Nickel - MD046BN
Brass - MD046BR
Brushed Stainless Steel - MD046BS
Chrome - MD046CH
Matt Black - MD046MB
Pearl Nickel - MD046PN
Polar White - MD046PW (for Polar & Mode Plates)
Red - MD046RD
Satin Brass - MD046SB
Satin Chrome - MD046SC
Stainless Steel - MD046SS
White - MD046WH (for Metal Clad Plates)

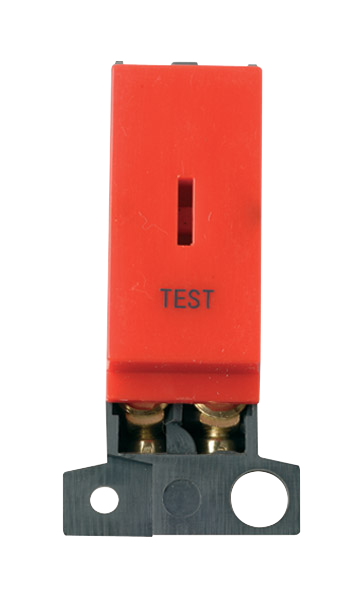

Red 'TEST' - MD046RDTT
For more information Click Here for more details on the Click MiniGrid range
