Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 25mm (W) x 53mm (H) x 20mm (D)
Rated Voltage: 250V
Load Rating: 10AX
Terminal Size 3.5mm
Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm
Modular Rocker Switch: Yes
1 Pole 3 Position Switch: Yes
Part Numbers:

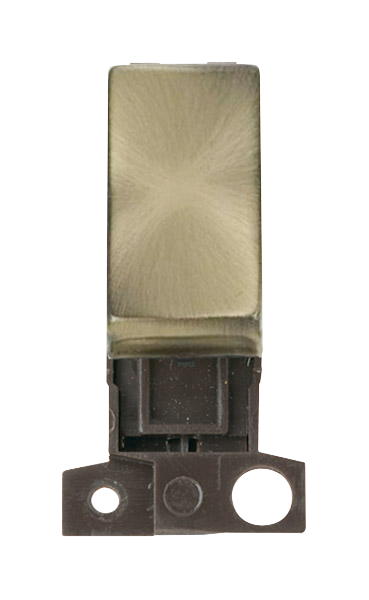

Antique Brass - MD070AB

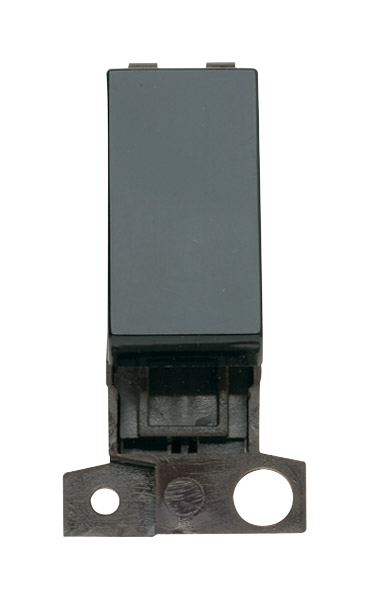

Black: - MD070BK

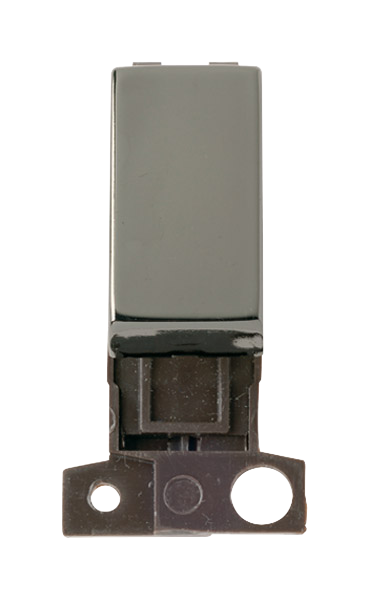

Black Nickel - MD070BN

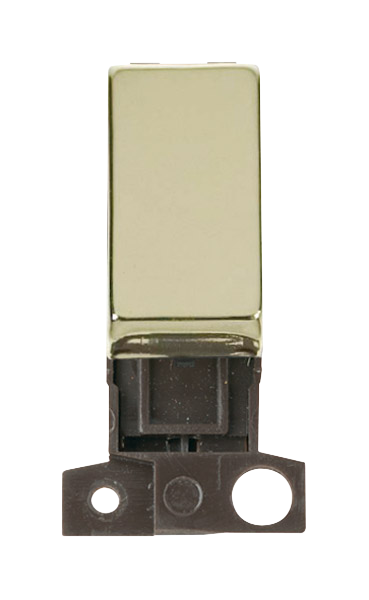

Brass - MD070BR

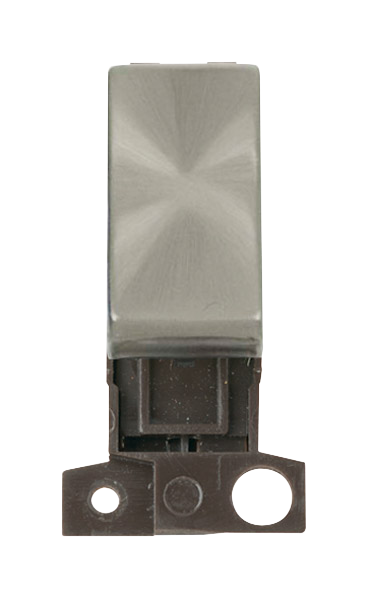

Brushed Stainless Steel - MD070BS
Chrome - MD070CH

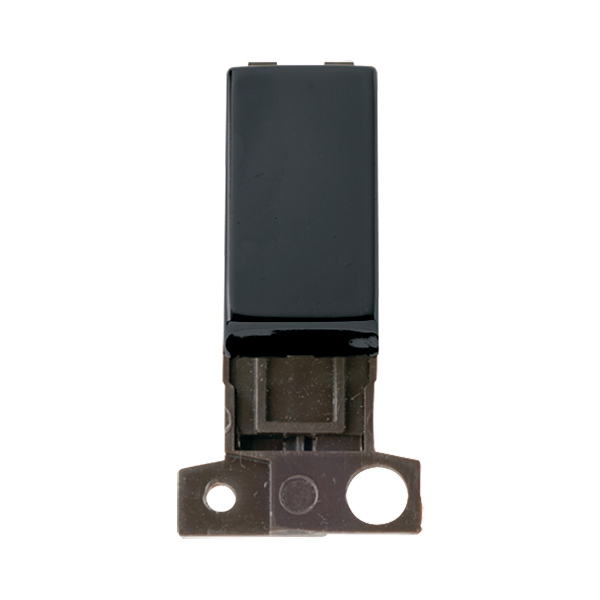

Matt Black - MD070MB

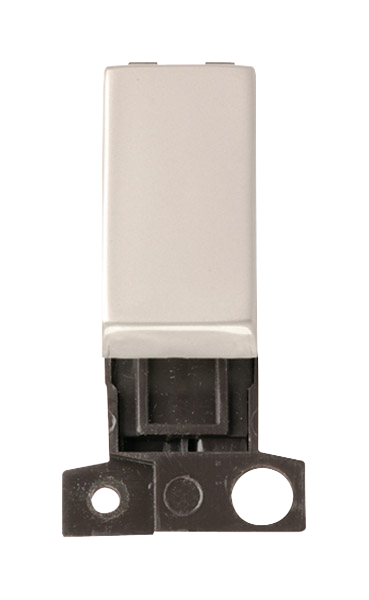

Pearl Nickel - MD070PN

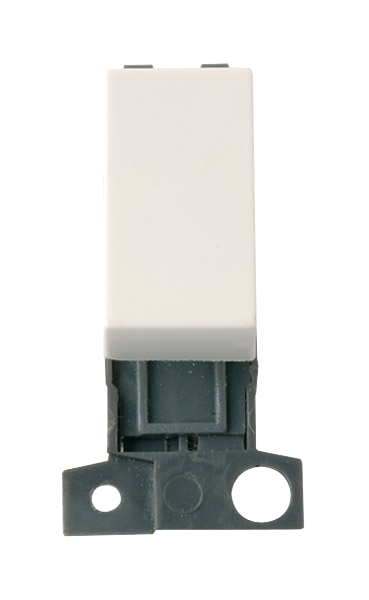

Polar White - MD070PW (for Polar & Mode Plates)

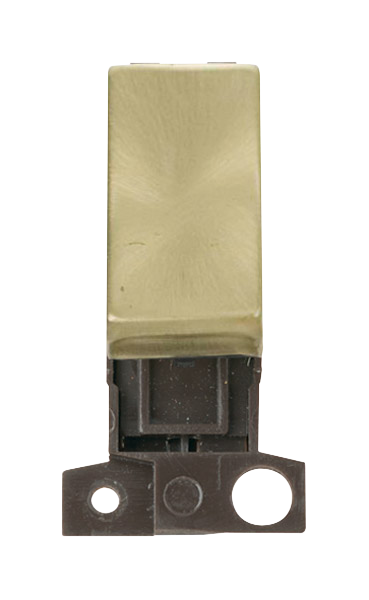

Satin Brass - MD070SB

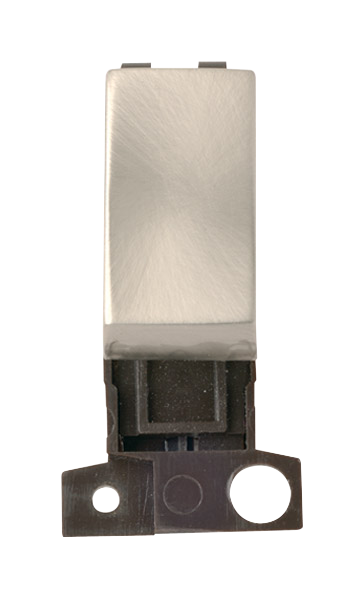

Satin Chrome - MD070SC

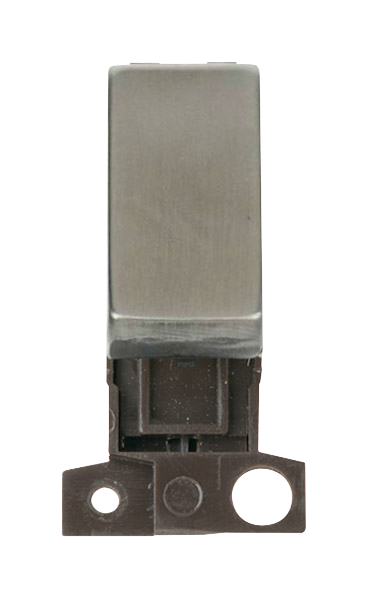

Stainless Steel - MD070SS
White - MD070WH (for Metal Clad Plates)
For more information Click Here for more details on the Click MiniGrid range
