Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 41mm (W) x 52.5mm (H) x 22mm (D)
Rated Voltage: 250V
Resistive Load: 13A
Load Rating: 10AX Suitable for Inductive Loads
Terminal Size 3.5mm
Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm
Modular Rocker Switch: Yes
Triple Pole Switch: Yes
Part Numbers:

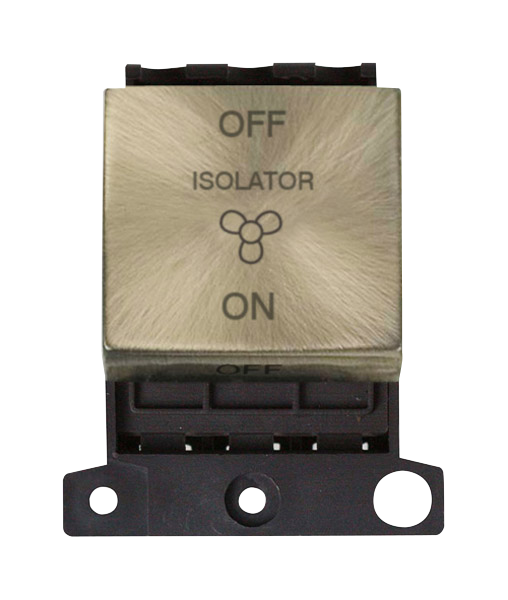

Antique Brass - MD020AB

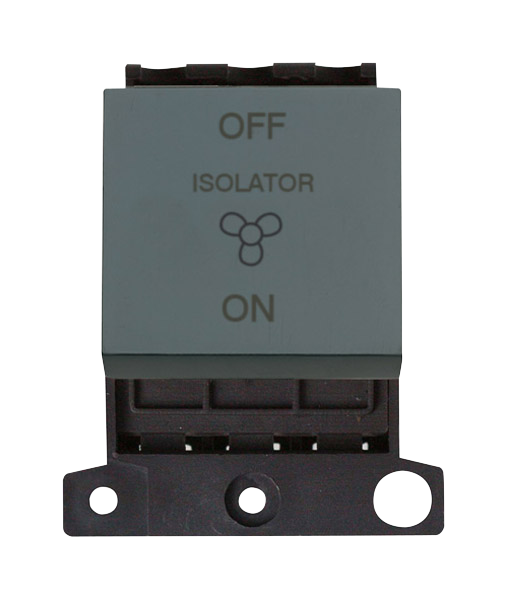

Black: - MD020BK

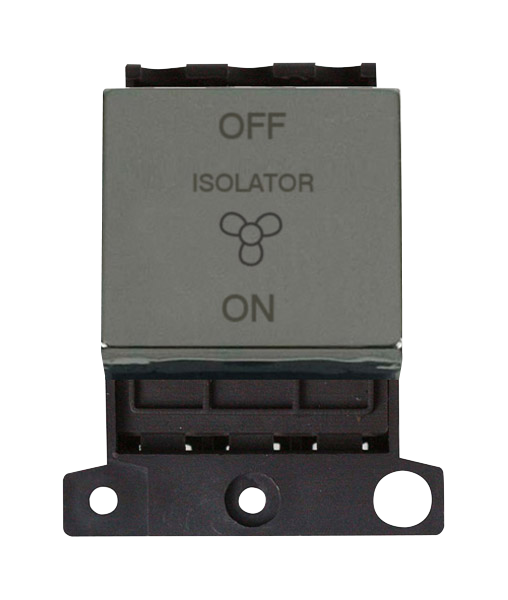

Black Nickel - MD020BN

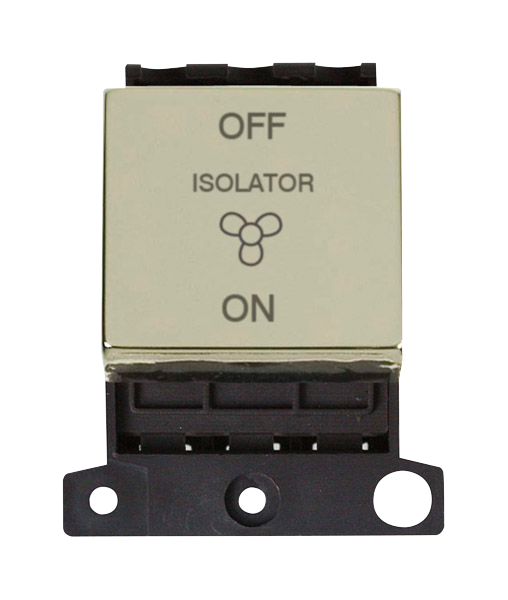

Brass - MD020BR

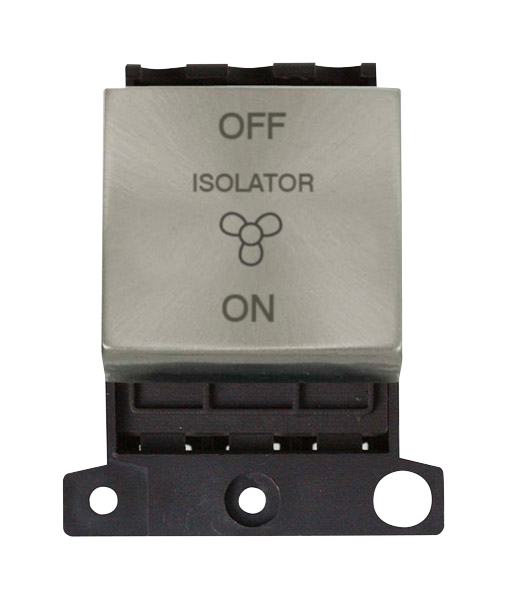

Brushed Stainless Steel - MD020BS
Chrome - MD020CH

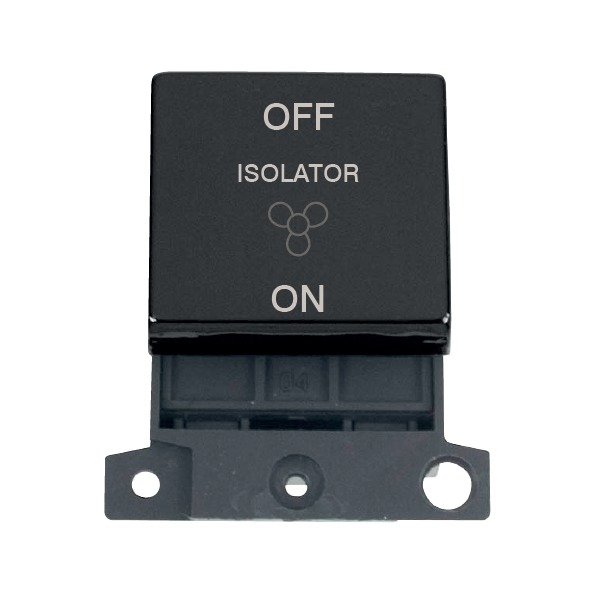

Matt Black - MD020MB

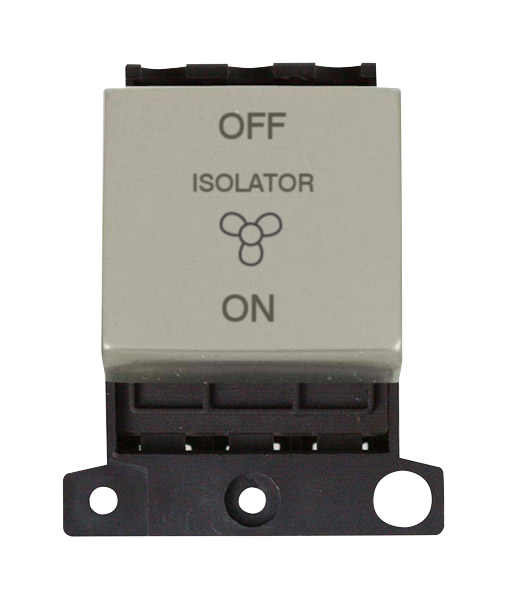

Pearl Nickel - MD020PN

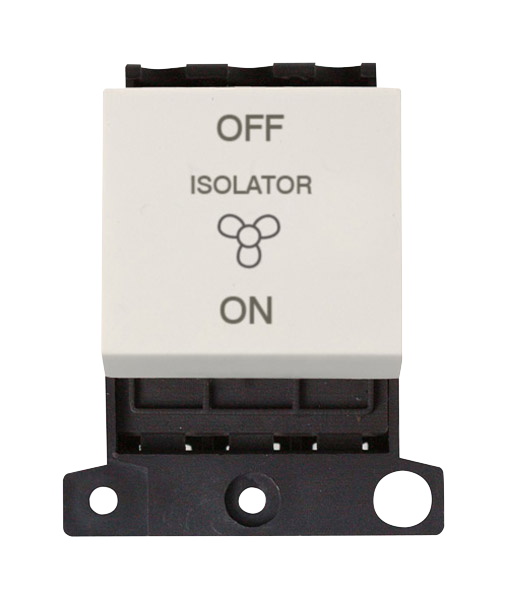

Polar White - MD020PW (for Polar & Mode Plates)

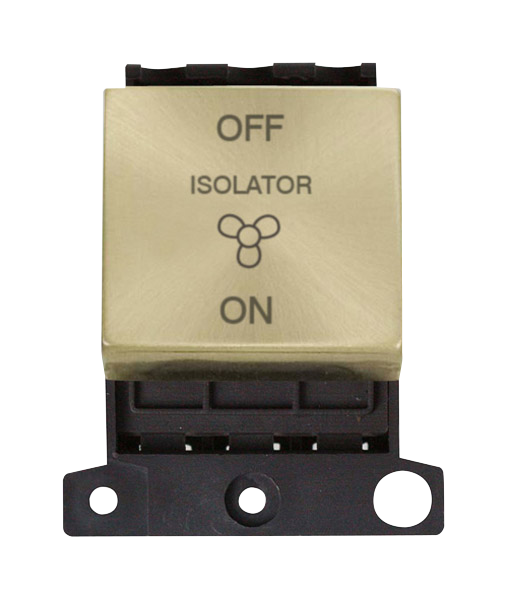

Satin Brass - MD020SB

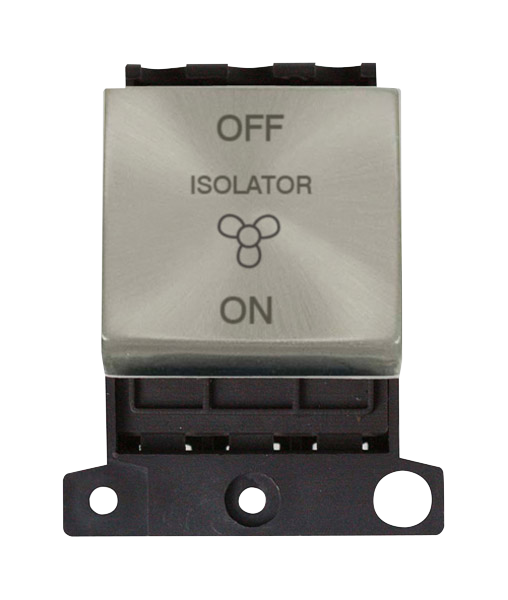

Satin Chrome - MD020SC

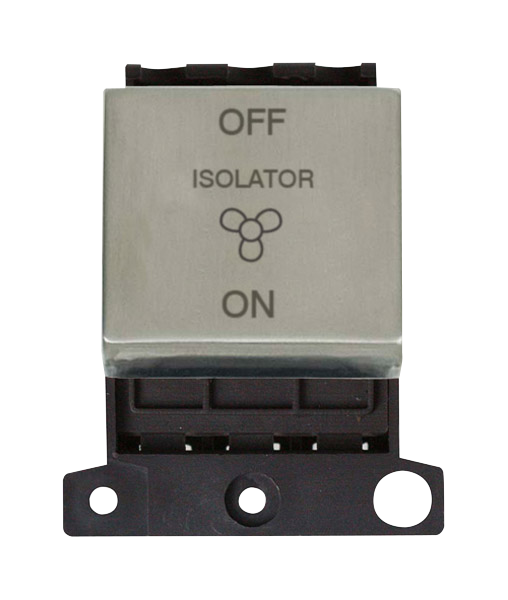

Stainless Steel - MD020SS

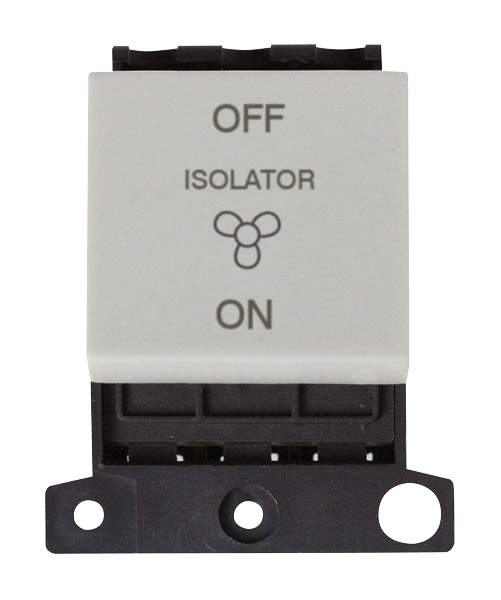

White - MD020WH (for Metal Clad Plates)
For more information Click Here for more details on the Click MiniGrid range
