Simple, single screw installation of the modules on the mounting plates has encouraged contractors to devise and install customised switching solutions on-site. The fully interchangeable MiniGrid modules are fitted as standard into our moulded CLICK, Polar & Mode, decorative Definity, Define, Deco & Metal Clad ranges.
Dimensions - 25mm (W) x 53mm (H) x 20mm (D)
Rated Voltage: 250V
Load Rating: 10AX Suitable for Inductive Loads
Terminal Size 3.5mm
Terminal Capacity: 4 x 1.5mm or 2 x 2.5mm
Modular Rocker Switch: Yes
1 Way Switch: Yes
Retractive Contact Options: Press to Make
Part Numbers:

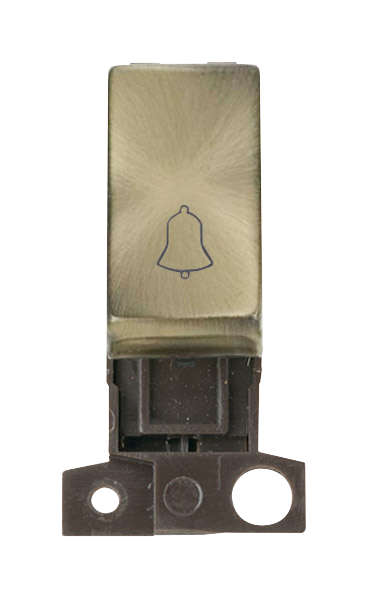

Antique Brass - MD005AB

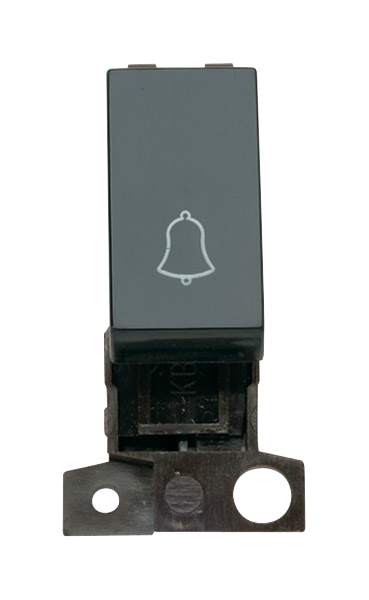

Black: - MD005BK

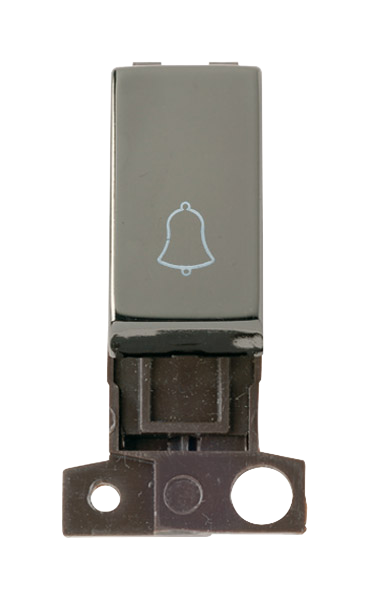

Black Nickel - MD005BN

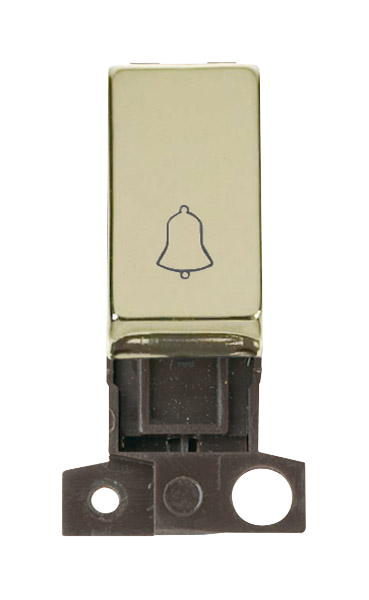

Brass - MD005BR

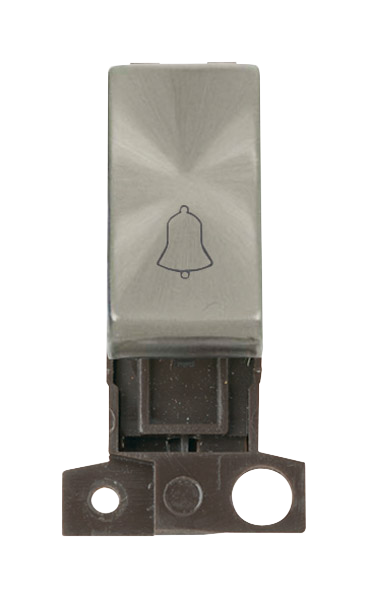

Brushed Stainless Steel - MD005BS

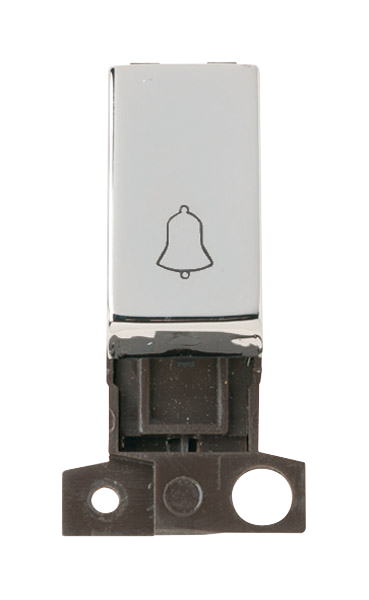

Chrome - MD005CH

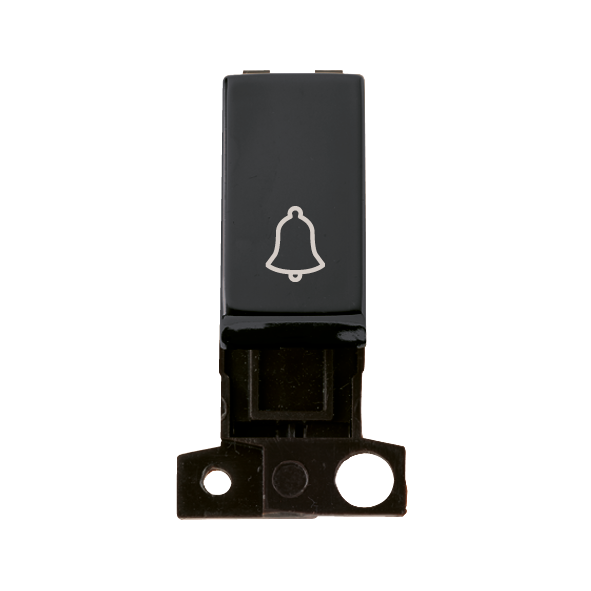

Matt Black - MD005MB

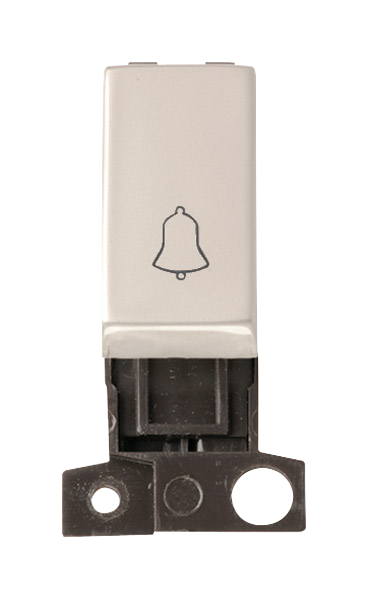

Pearl Nickel - MD005PN

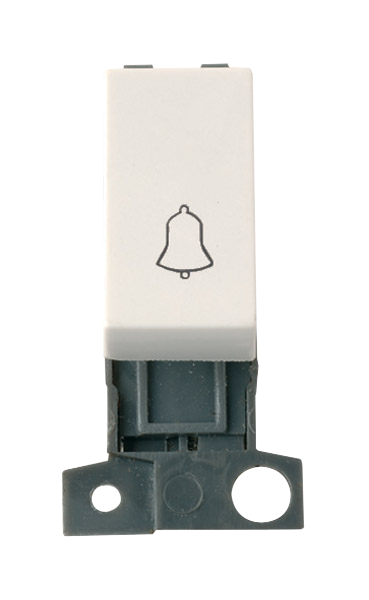

Polar White - MD005PW (for Polar & Mode Plates)

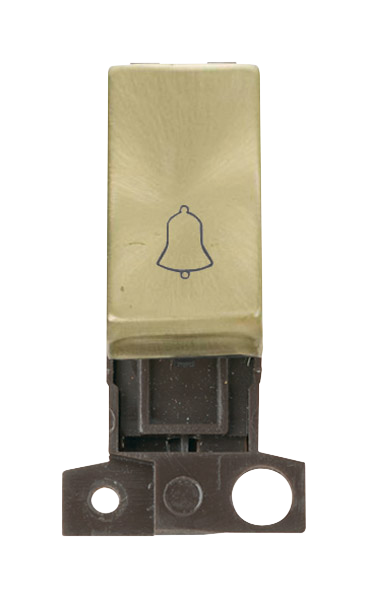

Satin Brass - MD005SB

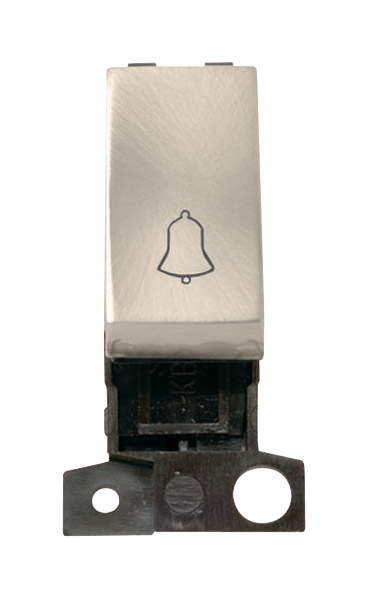

Satin Chrome - MD005SC
Stainless Steel - MD005SS
White - MD005WH (for Metal Clad Plates)
For more information Click Here for more details on the Click MiniGrid range
